Sony STR-DA7ES - Section 7 Exploded Views; 7-1. Case Section

72
STR-DA4ES/DA7ES/VA333ES
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark

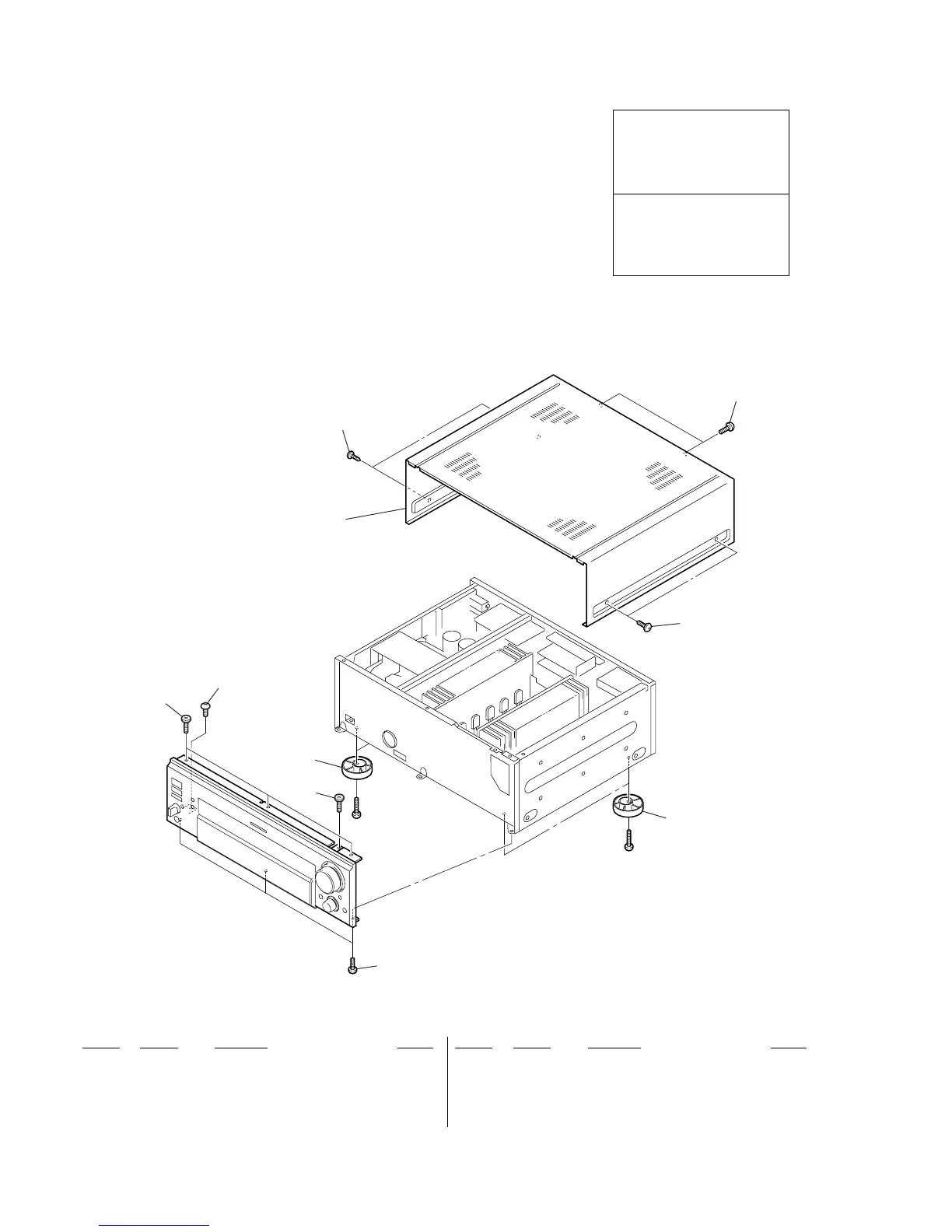

7-1. CASE SECTION
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
•Abbreviation
CND : Canadian model
TW : Taiwan model
KR : Korea model
RR
1
2
1
#1
#1
2
2
3
4
4
4
5
1 X-4953-883-2 FOOT ASSY
2 3-704-515-21 SCREW (BV/RING)
3 4-974-510-11 SCREW (+BV 3X8 CU)
4 4-227-843-01 SCREW (TP), FLAT HEAD (BLACK)...(BLACK)
4 4-227-843-11 SCREW (TP), FLAT HEAD (GOLD)...(GOLD)
5 4-222-052-71 CASE (GOLD)...(GOLD)
5 4-222-052-91 CASE (BLACK)...(BLACK)
#1 7-685-885-09 SCREW +BVTT 4X16 (S)
