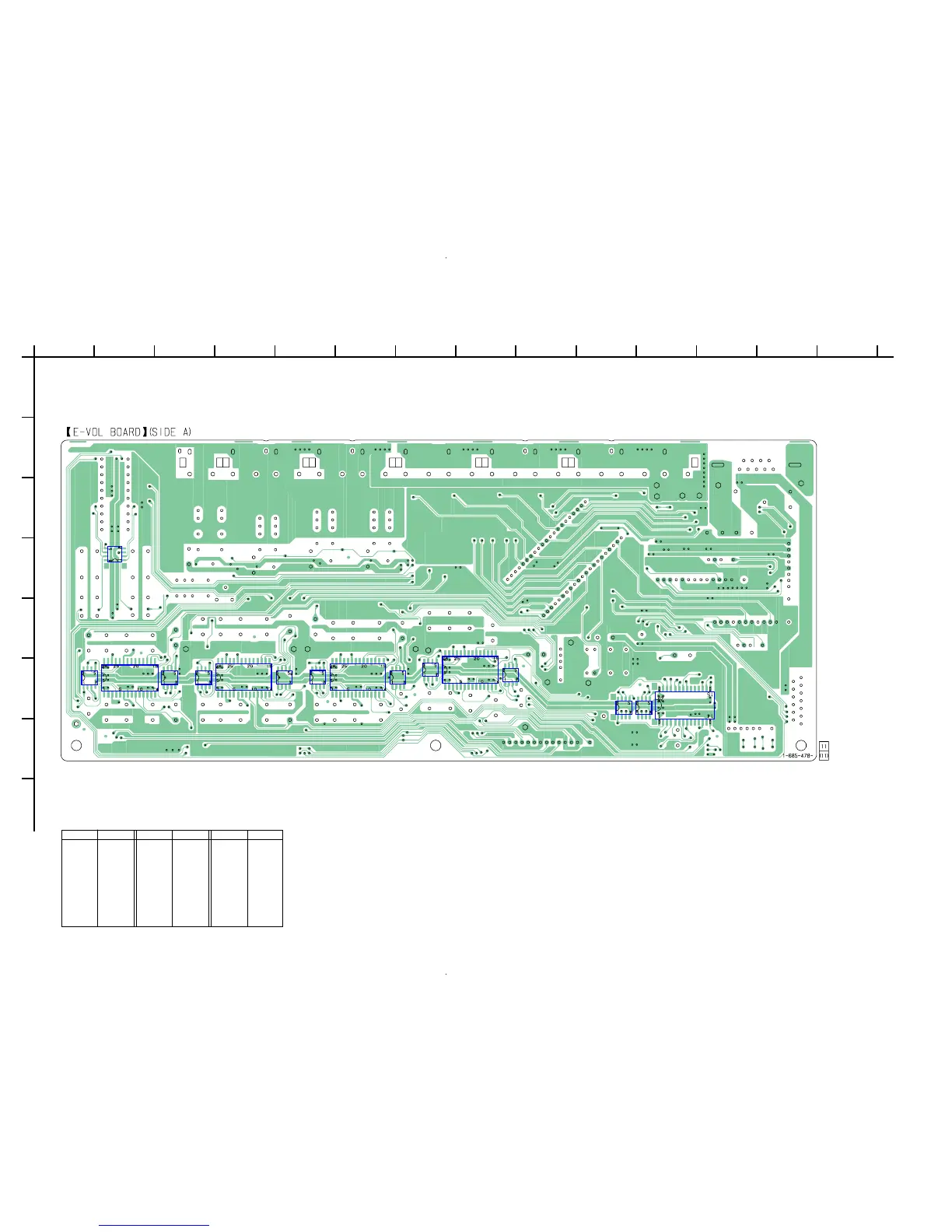

6-23. PRINTED WIRING BOARD — E-VOL SECTION — • Refer to page 27 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
234567891011121314
IC407
IC413
IC403
IC408
IC414
IC404
IC409
IC415
IC405
IC410
IC416
IC406
IC553
IC412
IC552
IC551
(D401) F-10
(D404) C-6
(D405) C-5
(D406) D-4
(D407) D-3
(D408) D-3
(IC401) C-13
(IC402) D-9
IC403 F-8
IC404 F-6
• Semiconductor Location
Ref. No. Location Ref. No. Location
IC405 F-4
IC406 F-2
IC407 F-7
IC408 F-5
IC409 F-3
IC410 F-1
(IC411) C-2
IC412 D-2
IC413 F-8
IC414 F-6
IC415 F-5
Ref. No. Location
IC416 F-3
IC551 F-11
IC552 F-11
IC553 F-10
(Q401) E-10
(Q404) D-6
(Q405) D-5
(Q406) D-4
(Q407) D-3
(Q408) D-4
( ): SIDE B
