Sony STR-DA7ES - 7-4. Rear Section

75
STR-DA4ES/DA7ES/VA333ES

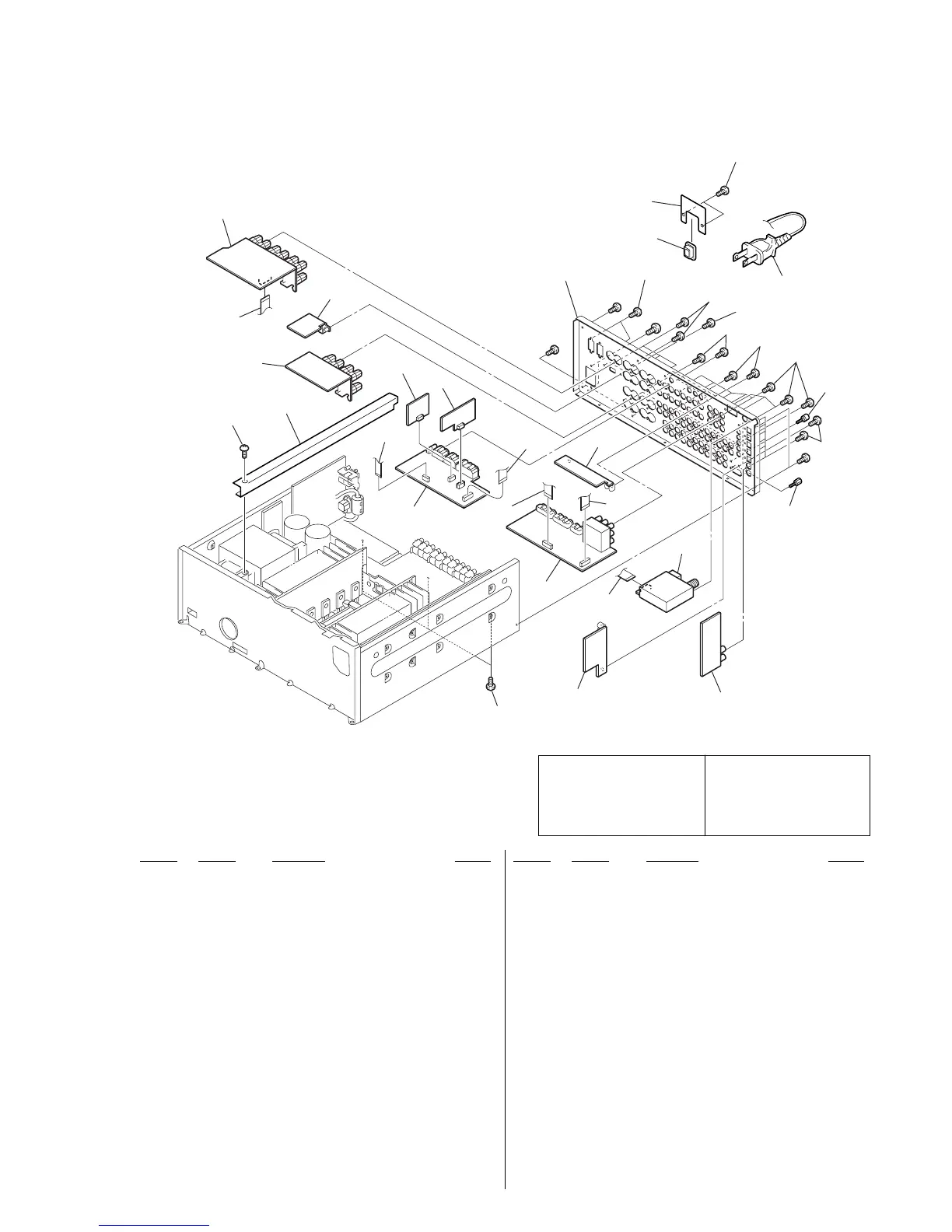

7-4. REAR SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151
152
153
153
153
170
171
160
159
153
153
153
153
153
153
153
161
162
163
155
156
157
158
164
165
166
167
168
169
154
172
TU301
not supplied
#5
#5
#6
#5
supplied with
J407
151 A-4728-944-A DIGITAL INPUT BOARD, COMPLETE
(DA4ES/DA7ES)
151 A-4728-979-A DIGITAL INPUT BOARD, COMPLETE (VA333ES)
152 A-4728-882-A CIS BOARD, COMPLETE (DA4ES)
152 A-4728-921-A CIS BOARD, COMPLETE (DA7ES)
153 4-974-510-11 SCREW (+BV 3X8 CU)
154 A-4728-955-A UP CONVERT BOARD, COMPLETE
(DA4ES/DA7ES)
155 A-4728-941-A S-SPTM BOARD, COMPLETE (DA4ES/DA7ES)
155 A-4728-905-A S-SPTM BOARD, COMPLETE (VA333ES)
156 1-685-494-11 4/8 BOARD
157 1-773-021-11 WIRE (FLAT TYPE) (15 CORE)
158 A-4728-904-A F-SPTM BOARD, COMPLETE (VA333ES)
158 A-4728-940-A F-SPTM BOARD, COMPLETE (DA4ES/DA7ES)
159 4-234-163-01 PANEL (V5), BACK (DA4ES)
159 4-234-163-41 PANEL (V5), BACK (AEP)
0 160 1-769-079-22 CORD, POWER (KR)
161 4-947-010-01 SCREW, FEEDER FIXED
162 1-823-582-11 WIRE (FLAT TYPE) (15 CORE)
163 A-4728-909-A C-VIDEO BOARD, COMPLETE (AEP)
163 A-4728-951-A C-VIDEO BOARD, COMPLETE (DA4ES/DA7ES)
163 A-4729-682-A C-VIDEO BOARD, COMPLETE (TW,KR)
164 1-769-971-11 WIRE (FLAT TYPE) (13 CORE)
165 A-4728-919-A M-BUS BOARD, COMPLETE (DA4ES/DA7ES)
166 1-769-969-11 WIRE (FLAT TYPE) (13 CORE)
167 1-769-975-11 WIRE (FLAT TYPE) (13 CORE)
168 A-4728-903-A S-VIDEO BOARD, COMPLETE (AEP)
168 A-4728-938-A S-VIDEO BOARD, COMPLETE (DA4ES/DA7ES)
168 A-4728-965-A S-VIDEO BOARD, COMPLETE (TW,KR)
169 1-769-879-11 WIRE (FLAT TYPE) (7 CORE) (DA4ES/DA7ES)
* 170 3-703-244-00 BUSHING (2104), CORD (KR)
* 171 4-923-873-01 BRACKET, CORD STOPPER (KR)
172 A-4728-895-A CLOCK BOARD, COMPLETE (AEP)
TU301 1-693-539-21 TUNER PACK (FM/AM) (DA4ES/DA7ES)
TU301 1-693-540-21 TUNER PACK (FM/AM) (VA333ES)
#5 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-685-659-79 SCREW +BVTP 4X8 TYPE2 IT-3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
