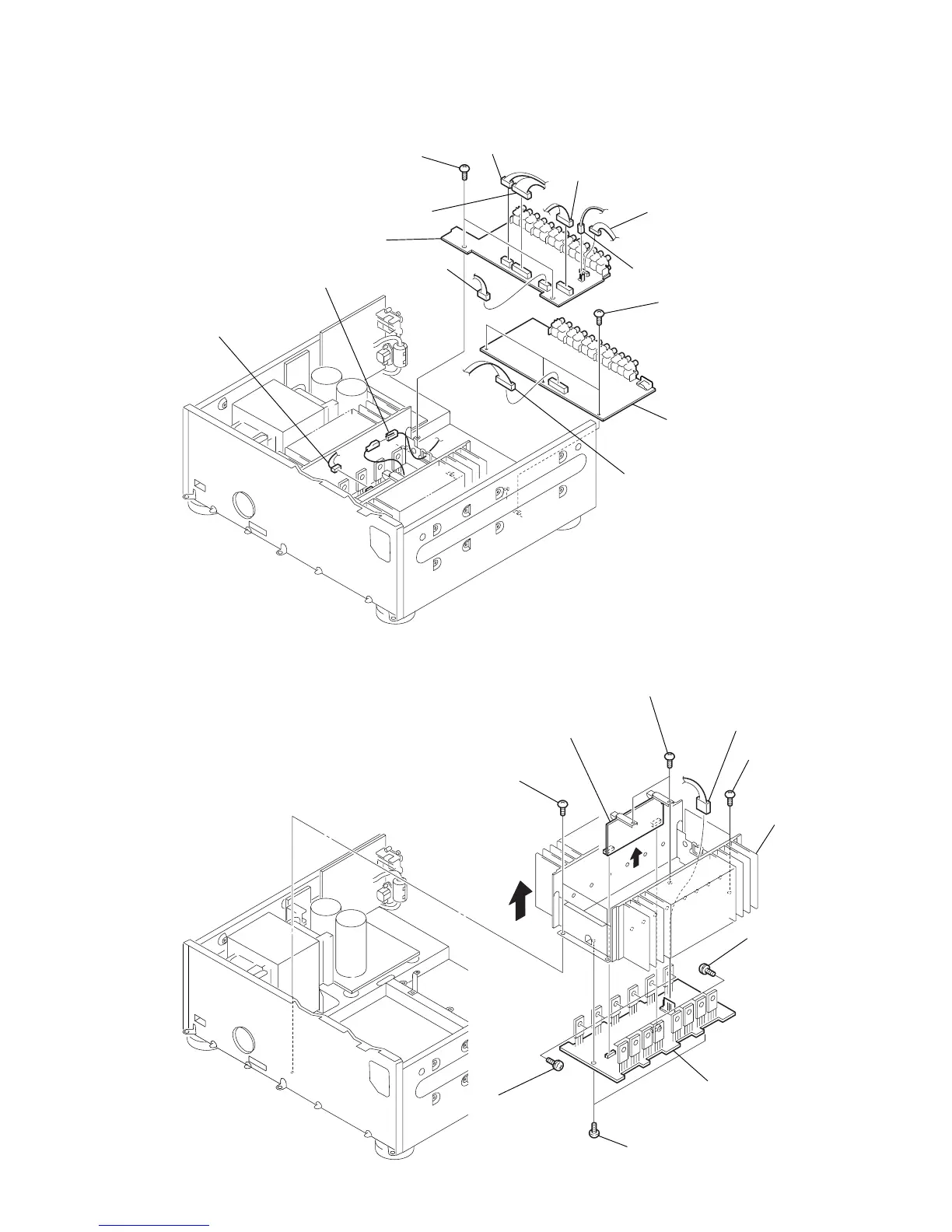

4-6. INPUT BOARD, E-VOL BOARD
4-7. A-CLASS BOARD, AMP BOARD
0 INPUT board
qd E-VOL board
9 two screws
(BV 3x8 CU)
qs two screws
(BV 3x8 CU)
1 CN501
2 CNP603
qa CNP408
3 CNP307
6 CNP303
5 CNP305
8 CNP301
7 CNP306
4 CNP304
qa AMP board
4 A-CLASS board
5 two screws
(BV 3x8 CU)
6 two screws
(BV 3x8 CU)
8 eight screws
(transistor)
heat sink ass
y
9 six screws
(transistor)
0 two screws
(BV 3x8 CU)
2 two screws
(BV 3x8 CU)
3
7
1
CNP505
