Sony STR-DB790 - Case (414535); COMP-V Board

11
STR-DA1000ES/DB790

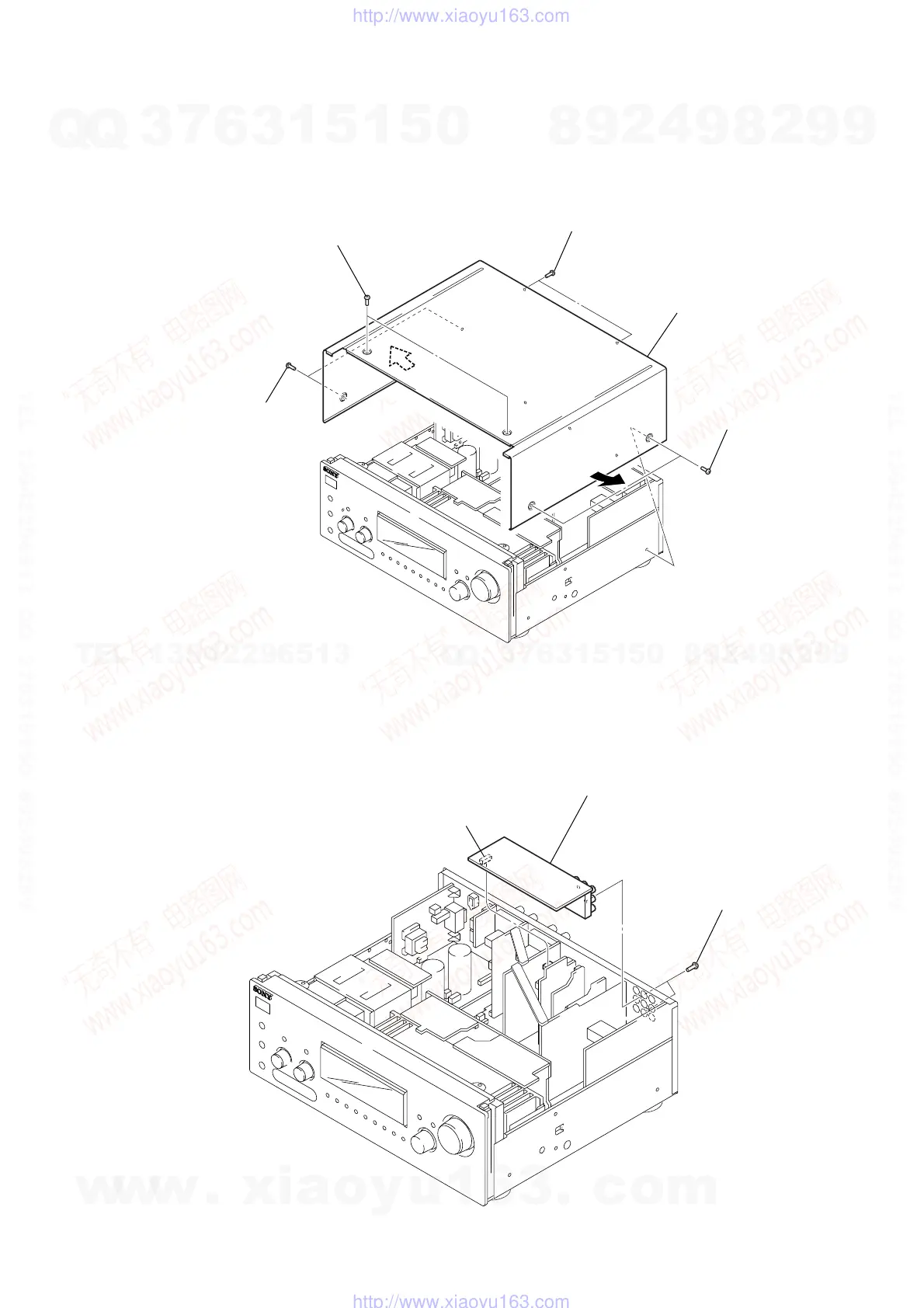

Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE (414535)
3-3. COMP-V BOARD
1 two screws
(BVTP3
× 8)
7 case (414535)
4 two screw
s
(flat head)
3 two screws
(flat head)
2 two screws
(flat head)
5
6
2 connector (CN351)
3 COMP-V board
1 two screws
(BVTP3
× 8
)
