STR-DA1000ES/DB790
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color

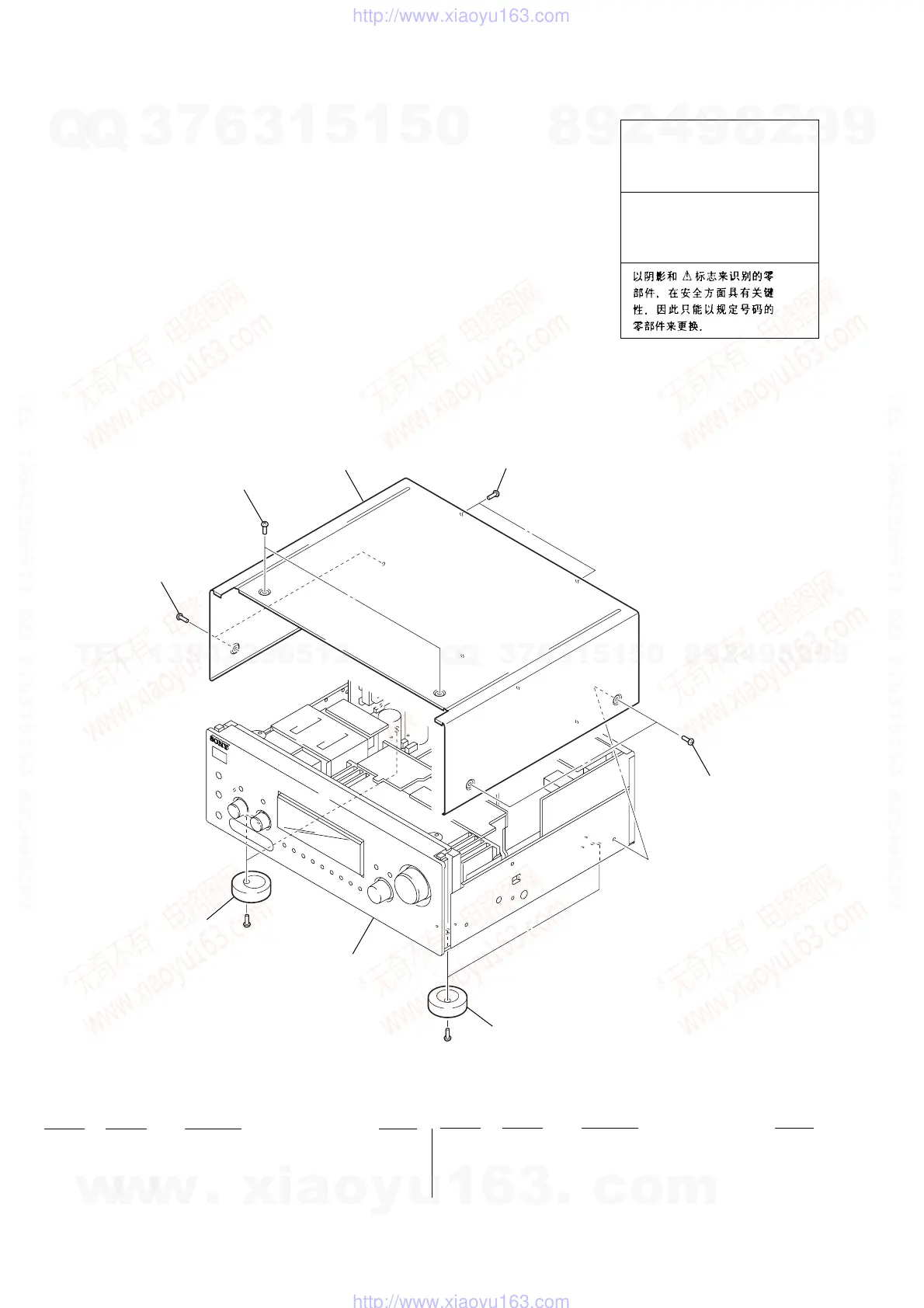

7-1. CASE SECTION
•Abbreviation
AUS: Australian model
CH : Chinese model
CND : Canadian model
KR : Korean model
MY : Malaysia model
SP : Singapore model
TW : Taiwan model
2
3
3
3
1
1
chassis section-1
#2
#2
3
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4953-883-2 FOOT ASSY
2 4-248-594-01 CASE (414535) (SILVER)
2 4-248-594-21 CASE (414535) (GOLD)
2 4-900-512-02 CASE (414535) (BLACK)
3 4-227-843-01 SCREW (TP), FLAT HEAD (BLACK)
3 4-227-843-31 SCREW (TP), FLAT HEAD (SILVER, GOLD)
#2 7-685-885-09 SCREW +BVTT 4X16 (S)
• Color variation
SILVER : STR-DA1000ES/DB790: AEP, UK, Australian
GOLD : STR-DB790: Korean, Singapore, Malaysia, Taiwan, Chinese
BLACK : STR-DB790: AEP, UK, Australian
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
