STR-DA1000ES/DB790

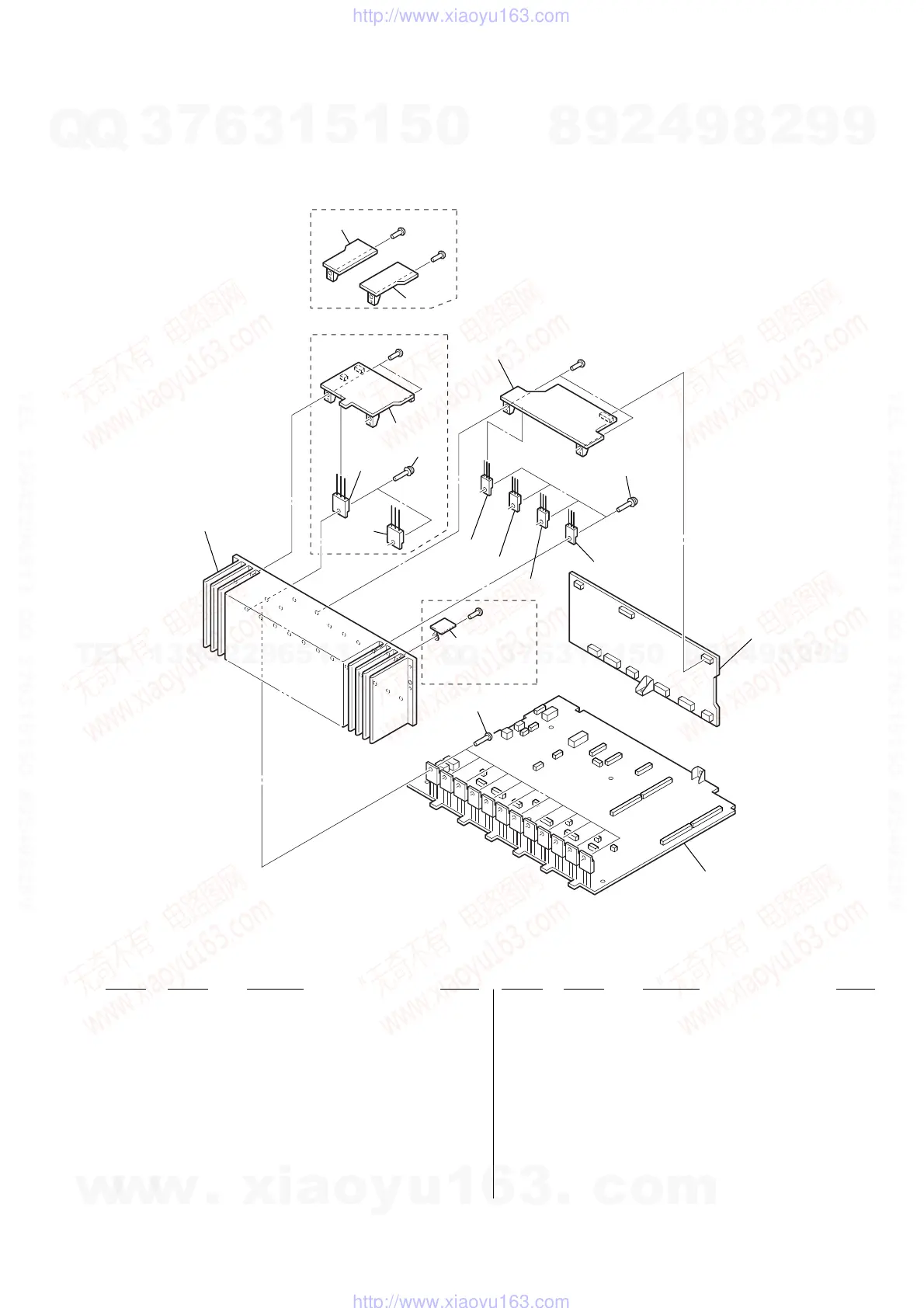

7-4. MAIN BLOCK SECTION
155
154
156
153
157
152
153
not
supplied
not supplied
(TH board)
main board bloc
Q702
Q703
DA1000ES
DB790
DB790
IC952
IC953
IC954
IC955
#3
#3
#3
#3
#3
153
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
152 A-4733-518-A SBL BOARD, COMPLETE (DA1000ES)
153 3-905-609-11 SCREW (TRANSISTOR)
154 1-689-177-11 STAY BOARD (DB790)
155 1-689-747-11 STAY2 BOARD (DB790)
156 A-4733-517-A DC2 BOARD, COMPLETE (DA1000ES)
156 A-4733-543-A DC2 BOARD, COMPLETE
(DB790: SP, MY, TW, KR, CH)
156 A-4733-574-A DC2 BOARD, COMPLETE
(DB790: AEP, UK, AUS)
157 A-4733-467-A A-CLASS BOARD, COMPLETE
(DB790: AEP, UK, AUS)
157 A-4733-513-A A-CLASS BOARD, COMPLETE (DA1000ES)
157 A-4733-539-A A-CLASS BOARD, COMPLETE
(DB790: SP, MY, TW, KR, CH)
IC952 8-759-231-53 IC TA7805S
IC953 8-759-231-53 IC TA7805S
IC954 8-759-245-87 IC TA79015S
IC955 8-759-231-59 IC TA7815S
Q702 6-702-390-01 IC MN2488-OPY-MK (DA1000ES)
Q703 6-702-391-01 IC MP1620-OPY-MK (DA1000ES)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
