Sony STR-DB790 Service Manual

74
STR-DA1000ES/DB790

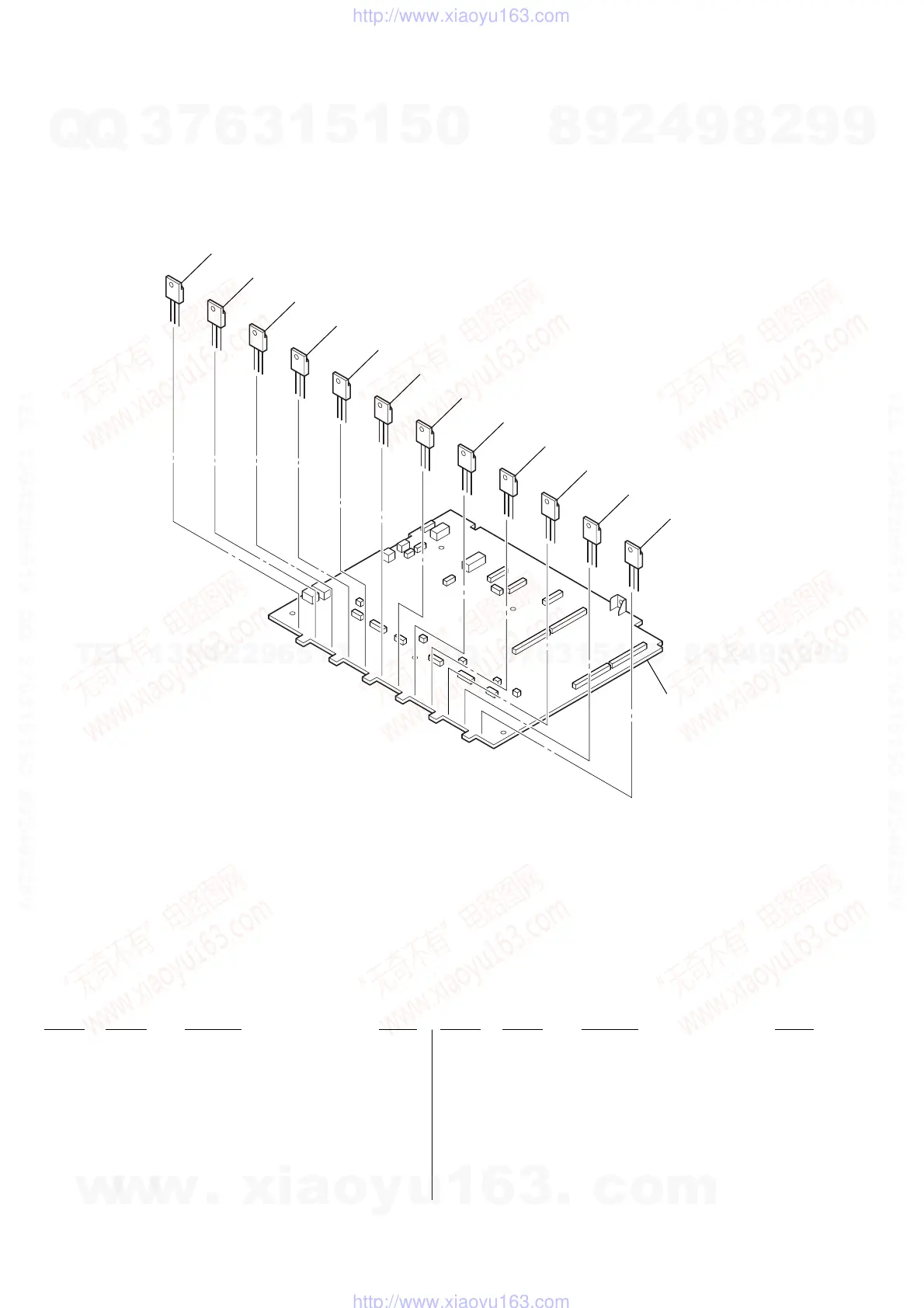

7-5. MAIN BOARD BLOCK
201
Q40
3
Q402
Q453
Q452
Q603
Q602
Q653
Q652
Q503
Q502
Q553
Q552
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 A-4733-533-A MAIN BOARD, COMPLETE (DA1000ES)
201 A-4733-553-A MAIN BOARD, COMPLETE
(DB790: SP, MY, TW, KR, CH)
201 A-4733-568-A MAIN BOARD, COMPLETE
(DB790: AEP, UK, AUS)
Q402 6-702-390-01 IC MN2488-OPY-MK
Q403 6-702-391-01 IC MP1620-OPY-MK
Q452 6-702-390-01 IC MN2488-OPY-MK
Q453 6-702-391-01 IC MP1620-OPY-MK
Q502 6-702-390-01 IC MN2488-OPY-MK
Q503 6-702-391-01 IC MP1620-OPY-MK
Q552 6-702-390-01 IC MN2488-OPY-MK
Q553 6-702-391-01 IC MP1620-OPY-MK
Q602 6-702-390-01 IC MN2488-OPY-MK
Q603 6-702-391-01 IC MP1620-OPY-MK
Q652 6-702-390-01 IC MN2488-OPY-MK
Q653 6-702-391-01 IC MP1620-OPY-MK
Ver 1.1
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Sony STR-DB790 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230 V, 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
