STR-DA1000ES/DB790

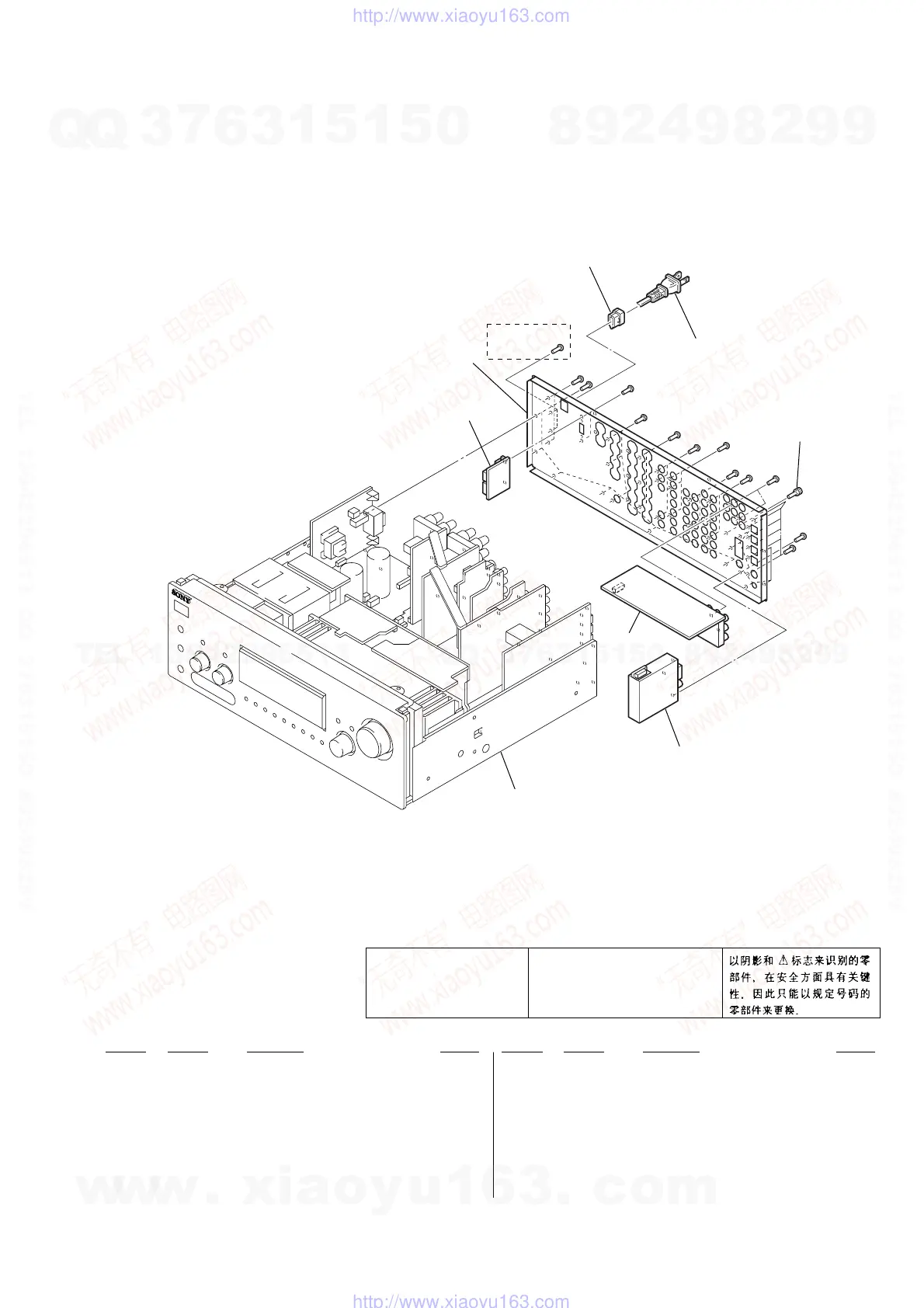

7-2. CHASSIS SECTION-1
52
53
54
51
not
supplied
not
supplied
TU301
#3
#3
#3
DA1000ES/
DB790: SP, MY, TW, CH
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
chassis section-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 A-4733-546-A COMP-V BOARD, COMPLETE (DB790)
51 A-4733-521-A COMP-V BOARD, COMPLETE (DA1000ES)
* 52 3-703-244-00 BUSHING (2104), CORD
053 1-696-847-21 CORD, POWER (AUS)
053 1-769-079-22 CORD, POWER (KR)
053 1-769-743-11 CORD, POWER (CND)
053 1-777-071-23 CORD, POWER (AEP, UK, SP, MY)
053 1-782-464-22 CORD, POWER (CH)
053 1-783-820-11 CORD, POWER (US)
053 1-827-597-41 CORD, POWER (TW)
54 4-947-010-01 SCREW, FEEDER FIXED
TU301 1-693-577-21 TUNER (DA1000ES)
TU301 1-693-578-21 TUNER (DB790: AEP, UK)
TU301 1-693-580-23 TUNER (DB790: SP, MY, TW, KR, AUS, CH)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE IT-3
Ver 1.3
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
