Sony STR-DB790 Service Manual

17
STR-DA1000ES/DB790
SECTION 5
ELECTRICAL ADJUSTMENT
BIAS ADJUSTMENT
Condition:
input signal: no signal (no load)
volume: minimum
Connection
Procedure:
1. Connect a digital voltmeter to the CN432 (CN482, CN532,
CN582, CN632, CN682) on the MAIN board or CN732 on the
SBL board (STR-DA1000ES only).
2. Press the
I/1 button to turn on the main power.
3. Adjust the RV431 (RV481, RV531, RV581, RV631, RV681)
on the MAIN board or RV731 on the SBL board (STR-
DA1000ES only) so that the digital voltmeter reading is 2±0.5
mV.
Note: When the adjusting voltage is higher than 2±0.5 mV, adjust the
voltage to the minimum voltage.

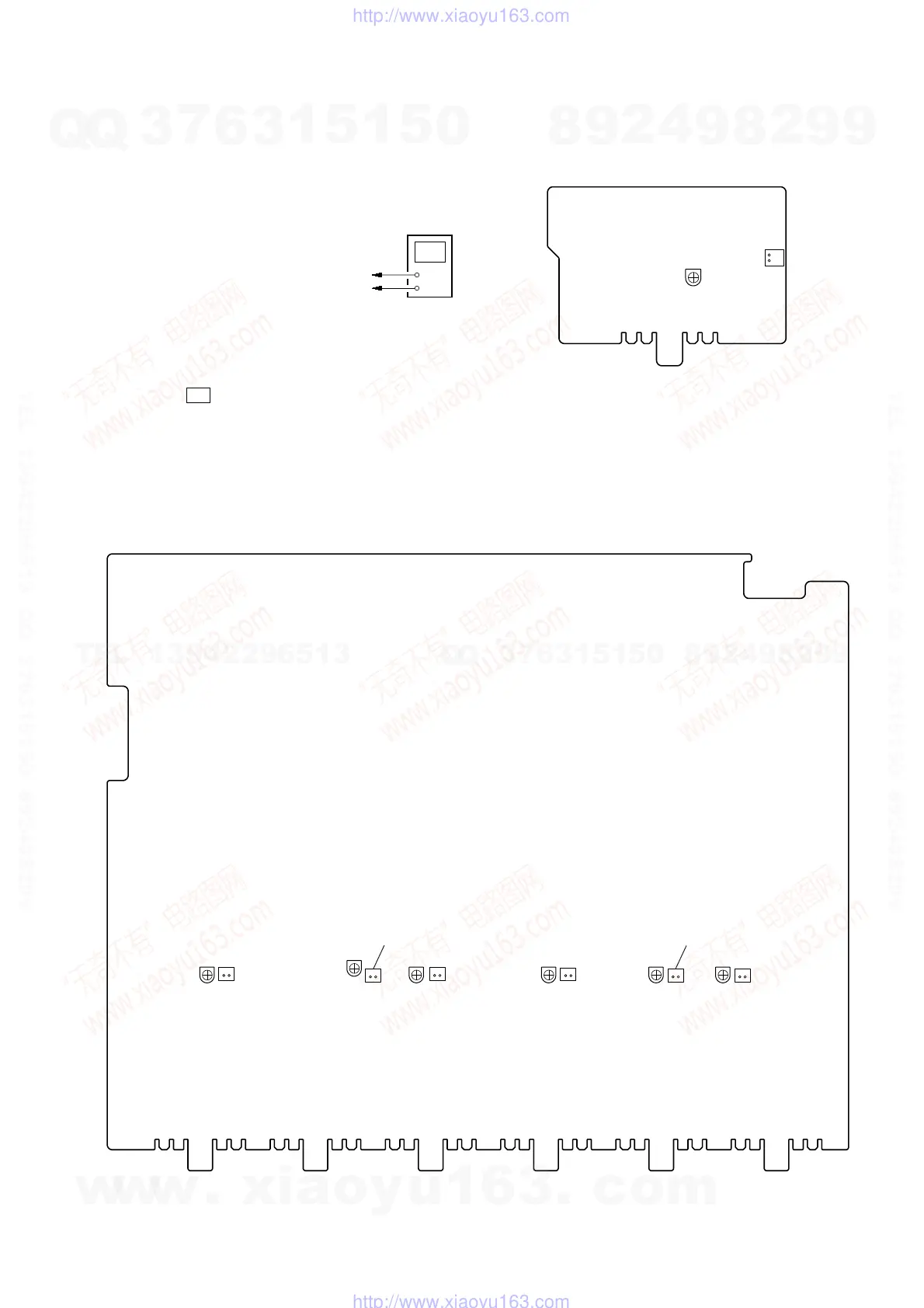

Adjustment and Connection Loacation:
+
–
digital voltmeter
CN432 (CN482, 532, 582, 632, 682, 732) pin
1
CN432 (CN482, 532, 582, 632, 682, 732) pin 2
RV734
– SBL BOARD (Component Side) –
CN732
1
2
– MAIN BOARD (Component Side) –
RV431
CN432
2 1
RV481
RV631
RV681
RV531 RV581
CN482
CN632 CN682
CN532
CN582
2 1
2 1 2 1
2 1
2 1
Ver 1.2
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Sony STR-DB790 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230 V, 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
