75
STR-DA1000ES/DB790

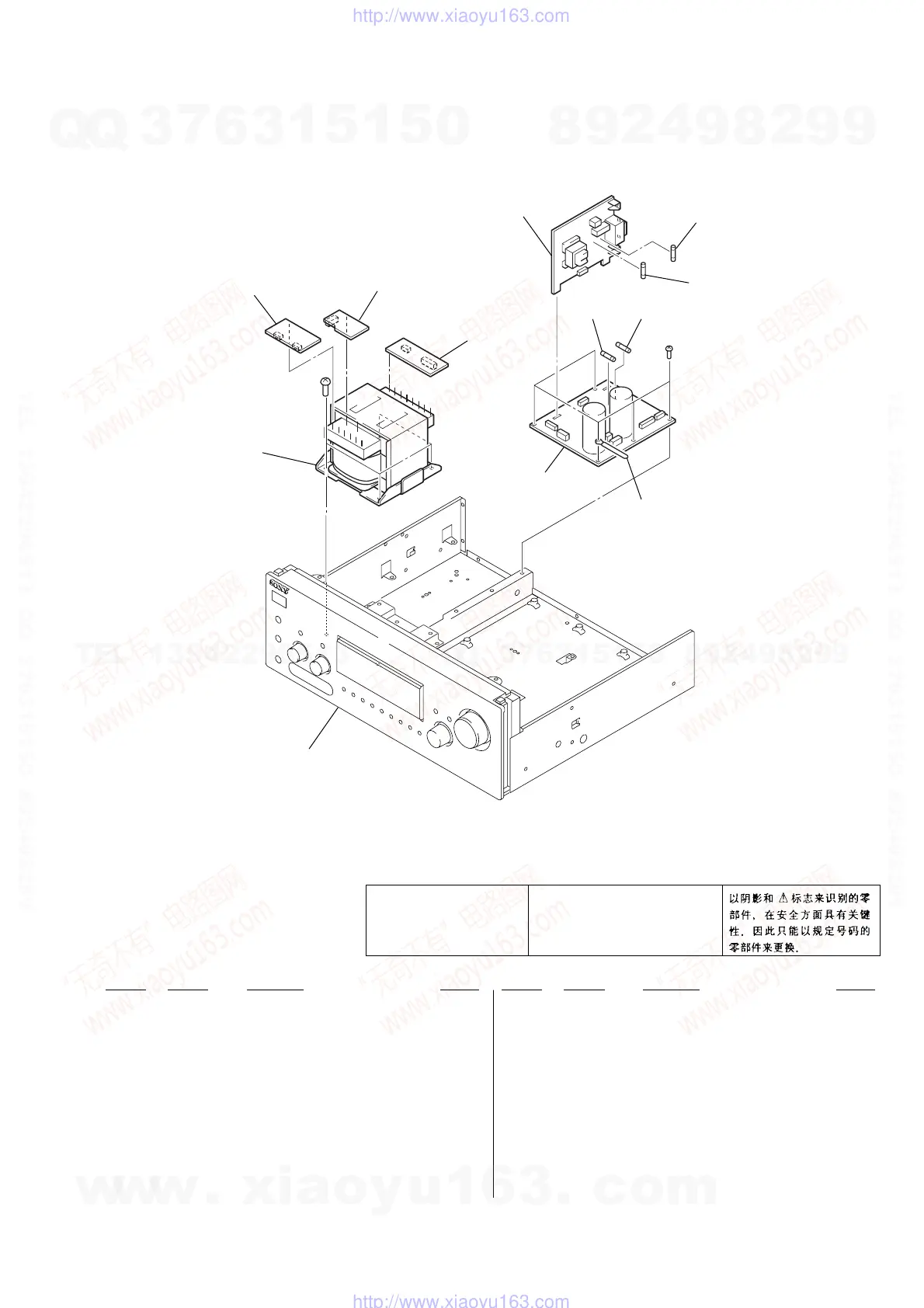

7-6. CHASSIS SECTION-3
251
252
253
254
255
T901
front panel block-1
not
supplied
F
F1
F904
F903
#3
#4
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 1-689-176-11 SEC3 BOARD
252 1-689-173-11 PRI BOARD
253 1-689-174-11 SEC1 BOARD
254 1-688-632-11 AC BOARD
255 1-688-633-11 DC1 BOARD
0F1 1-532-504-51 FUSE (4A/250V)
(DB790: AEP, UK, SP, MY, KR, AUS, CH)
0F1 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V) (DA1000ES/DB790: TW)
0F2 1-532-464-51 FUSE (T2.5AL/250V) (DB790: SP, MY)
0F2 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V) (DA1000ES)
0F903 1-532-504-51 FUSE (4A/250V) (DB790)
0F903 1-576-108-11 FUSE (4A/125V) (DA1000ES)
0F904 1-532-504-51 FUSE (4A/250V) (DB790)
0F904 1-576-108-11 FUSE (4A/125V) (DA1000ES)
0T901 1-439-800-11 TRANSFORMER, POWER (DB790: CH)
0T901 1-439-801-11 TRANSFORMER, POWER (DB790: TW)
0T901 1-439-802-11 TRANSFORMER, POWER (DA1000ES)
0T901 1-439-803-11 TRANSFORMER, POWER
(DB790: AEP, UK, SP, MY, KR, AUS)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-881-09 SCREW +BVTT 4X8 (S)
Ver 1.1
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
