Sony STR-DB790 Service Manual

77
STR-DA1000ES/DB790

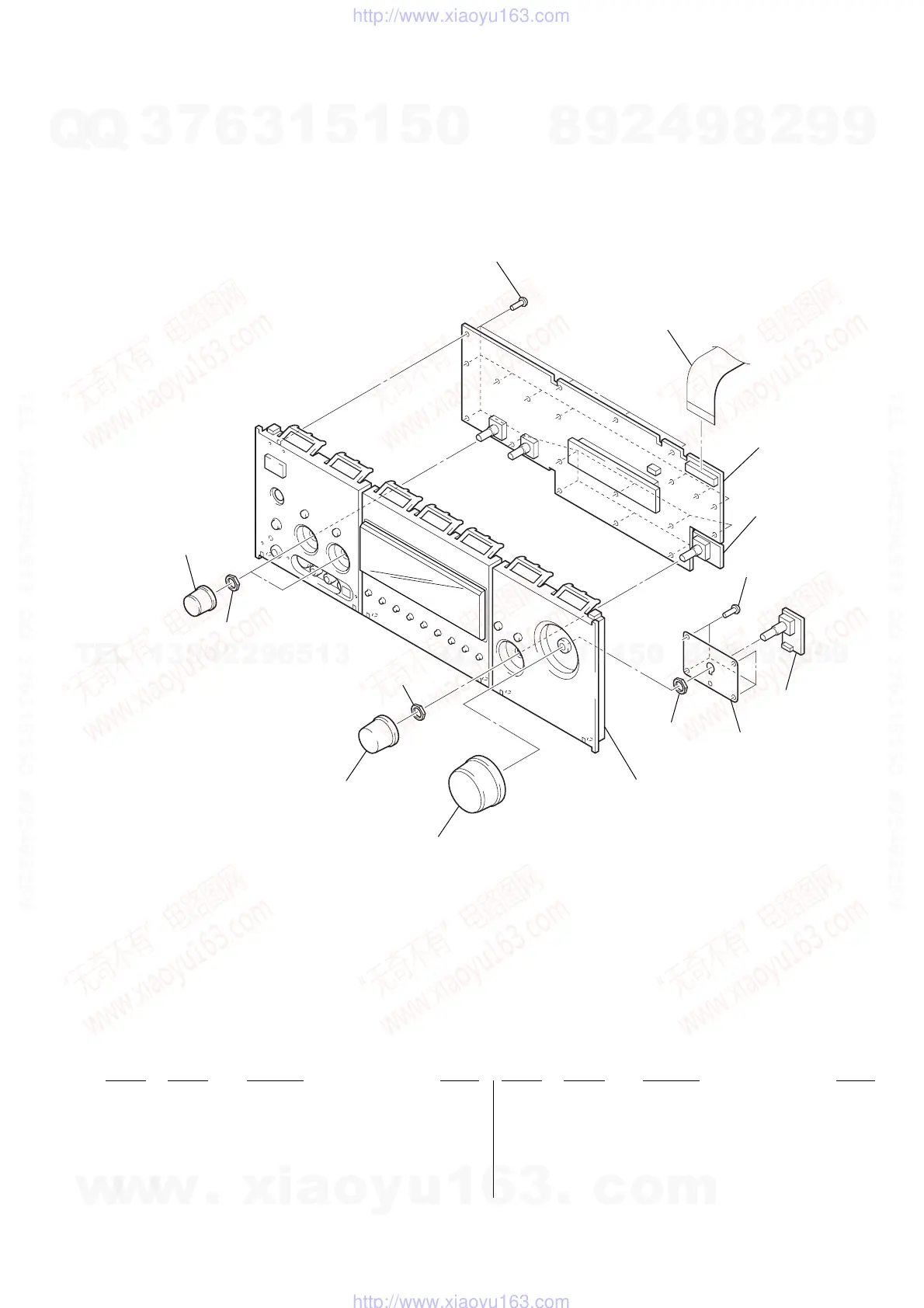

7-8. FRONT PANEL BLOCK-2
353
352
351
356
354
355
356
supplied
with RV1051, 1052
supplied
with RV1061
supplied
with RV1060
front panel block-3
not
supplied
not supplied
(VOL board)
not supplied
(fun board)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 4-240-507-01 KNOB (VOL) (BLACK)
351 X-4953-671-1 KNOB (VOL-E) ASSY (GOLD)
351 X-4953-672-1 KNOB (VOL-E) ASSY (SILVER)
352 4-232-569-01 KNOB (FN DE9) (BLACK)
352 4-232-569-11 KNOB (FN DE9) (GOLD)
352 4-232-569-21 KNOB (FN DE9) (SILVER)
353 4-245-437-01 KNOB (MENU) (BLACK)
353 4-245-437-21 KNOB (MENU) (GOLD)
353 4-245-437-31 KNOB (MENU) (SILVER)
354 1-773-270-11 WIRE (FLAT TYPE) (27 CORE)
355 A-4733-524-A DISPLAY BOARD, COMPLETE
356 4-951-620-01 SCREW (2.6X8), +BVTP
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Sony STR-DB790 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230 V, 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
