Sony STR-DB790 Service Manual

76
STR-DA1000ES/DB790

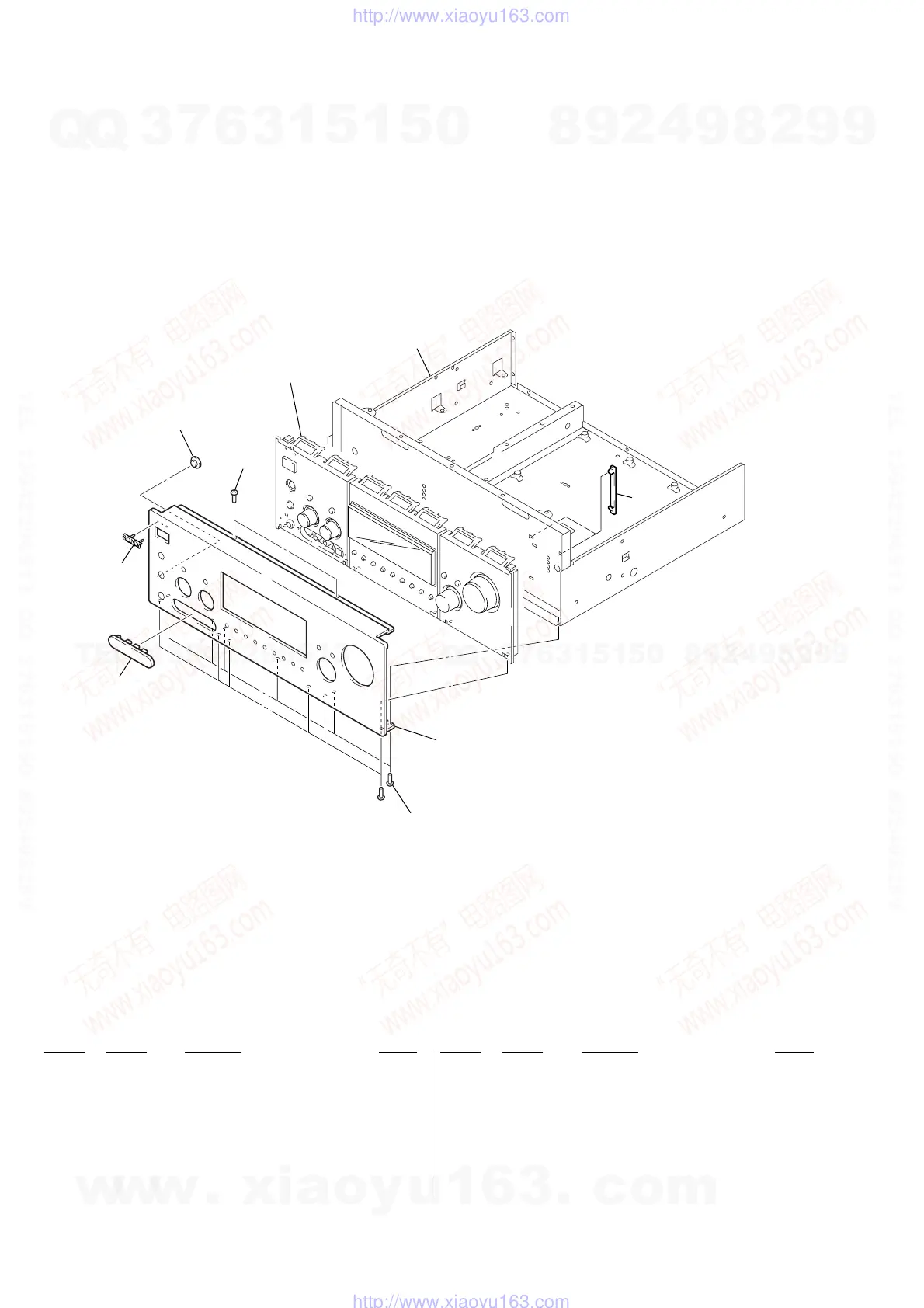

7-7. FRONT PANEL BLOCK-1
301
302
303
306
305
306
304
not
supplied
front panel block-2
#3
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 X-4955-963-2 LID ASSY (BLACK)
301 X-4955-967-1 LID ASSY (GOLD)
301 X-4955-968-2 LID ASSY (SILVER)
302 4-240-858-01 EMBLEM (5-A), SONY (BLACK)
302 4-240-858-11 EMBLEM (5-A), SONY (GOLD)
302 4-240-858-21 EMBLEM (5-A), SONY (SILVER)
303 X-4953-000-1 WINDOW ASSY, REMOTE CONTROL
304 4-245-444-01 PANEL, FRONT (DB790: BLACK)
304 4-245-444-11 PANEL, FRONT (DB790: SILVER)
304 4-245-444-21 PANEL, FRONT (DB790: GOLD)
304 4-245-444-31 PANEL, FRONT (DA1000ES)
305 3-064-084-01 CLAMP (FCR-60), FLAT
306 3-704-515-21 SCREW (BV/RING) (BLACK)
306 3-704-515-31 SCREW (BV/RING) (SILVER, GOLD)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ver 1.1
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Sony STR-DB790 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230 V, 50/60 Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
