72
STR-DA1000ES/DB790

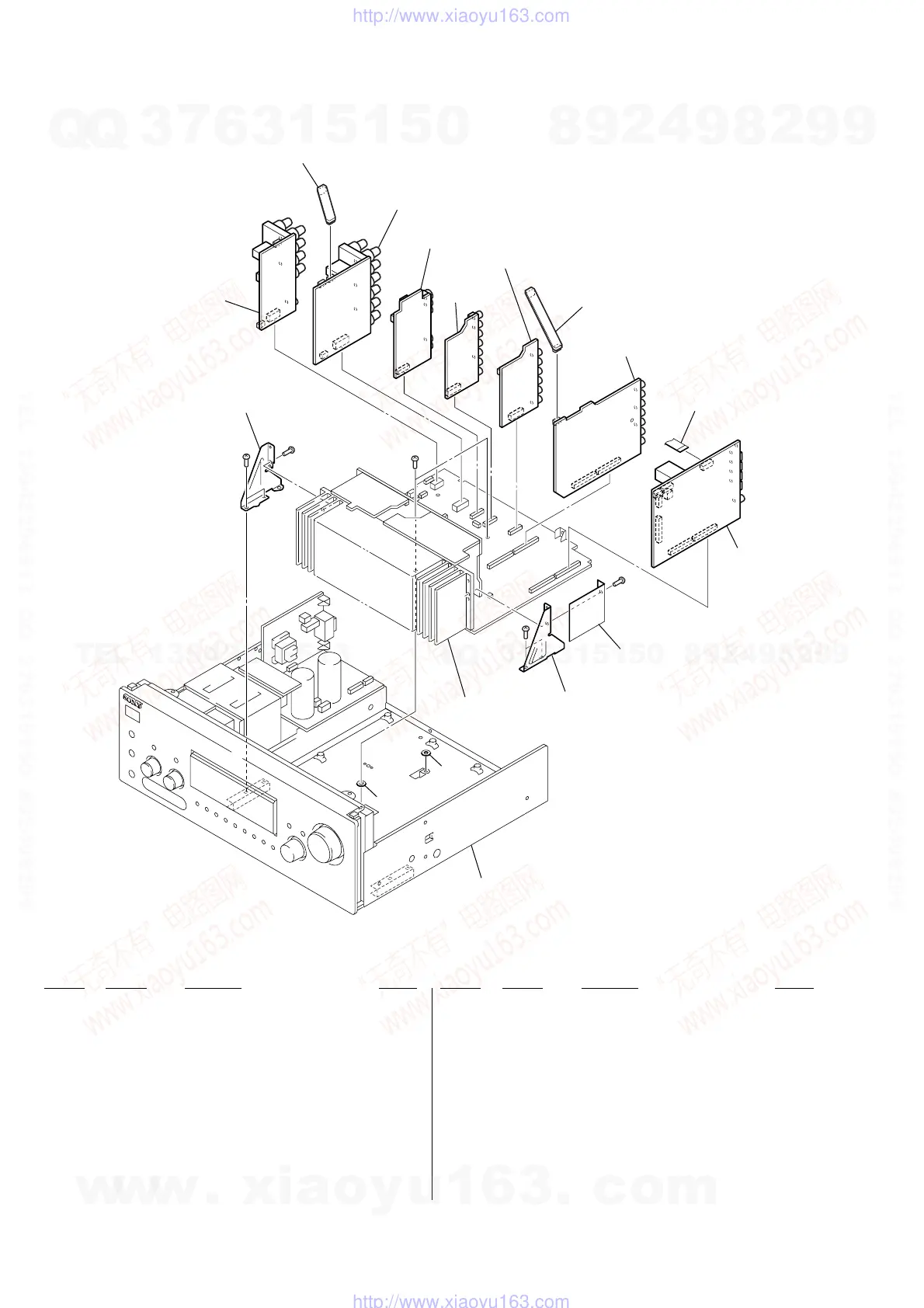

7-3. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-688-637-11 SP-B BOARD
102 1-689-784-11 STAY4 BOARD
103 1-688-636-11 SP-A BOARD
104 1-689-748-11 STAY3 BOARD
105 A-4733-530-A S-VIDEO BOARD, COMPLETE (DA1000ES)
105 A-4733-550-A S-VIDEO BOARD, COMPLETE (DB790)
106 1-688-645-11 VIDEO BOARD
107 A-4733-570-A AU-IN BOARD, COMPLETE
(DB790: AEP, UK, AUS)
107 A-4733-528-A AU-IN BOARD, COMPLETE (DA1000ES)
107 A-4733-548-A AU-IN BOARD, COMPLETE
(DB790: SP, MY, TW, KR, CH)
108 1-769-938-11 WIRE (FLAT TYPE) (11 CORE)
(DA1000ES/DB790: SP, MY, TW, KR, AUS, CH)
108 1-773-002-11 WIRE (FLAT TYPE) (15 CORE)
(DB790: AEP, UK)
109 A-4733-508-A DIGITAL BOARD, COMPLETE (DA1000ES)
109 A-4733-536-A DIGITAL BOARD, COMPLETE
(DB790: SP, MY, TW, KR, AUS, CH)
109 A-4733-576-A DIGITAL BOARD, COMPLETE (DB790: AEP, UK)
110 4-971-099-01 WASHER (P)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
103
101
102
105
104
107
108
109
#3
#3
not supplied
(video-AU board)
#3
#3
#3
not
supplied
not
supplied
main block section
not
supplied
chassis section-3
106
110
110
Ver 1.1
