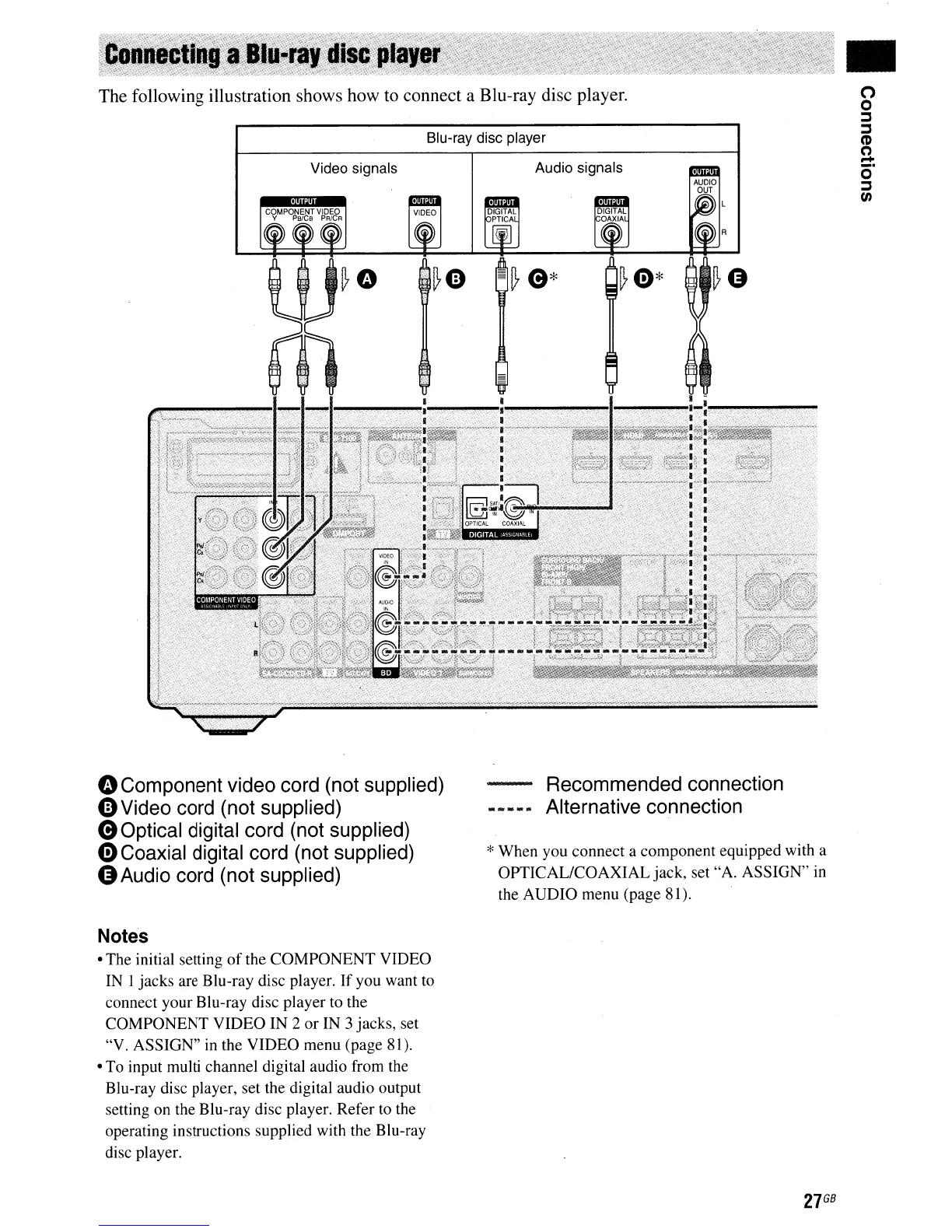

The following illustration shows how to connect a BIu-ray disc player.
o
o
:::::I
:::::I
(1)
o
=
o
:::::I
(IJ
•
Audio signals
Blu-ray disc player
Video signals
"Component
video cord (not supplied)
«)
Video cord (not supplied)
eOptical digital cord (not supplied)
eCoaxial digital cord (not supplied)
4)
Audio cord (not supplied)
Recommended connection
Alternative connection
*When you connect a component equipped with a
OPTICAL/COAXIAL jack, set "A. ASSIGN" in
the AUDIO menu (page 81).
Notes
• The initial setting
of
the COMPONENT VIDEO
IN I jacks are BIu-ray disc player.
If
you want
to
connect your Blu-ray disc player to the
COMPONENT VIDEO IN 2 or IN 3 jacks, set
"V. ASSIGN" in the VIDEO menu (page 81).
• To input multi channel digital audio from the
Blu-ray disc player, set the digital audio output
setting on the Blu-ray disc player. Refer to the
operating instructions supplied with the Blu-ray
disc player.
