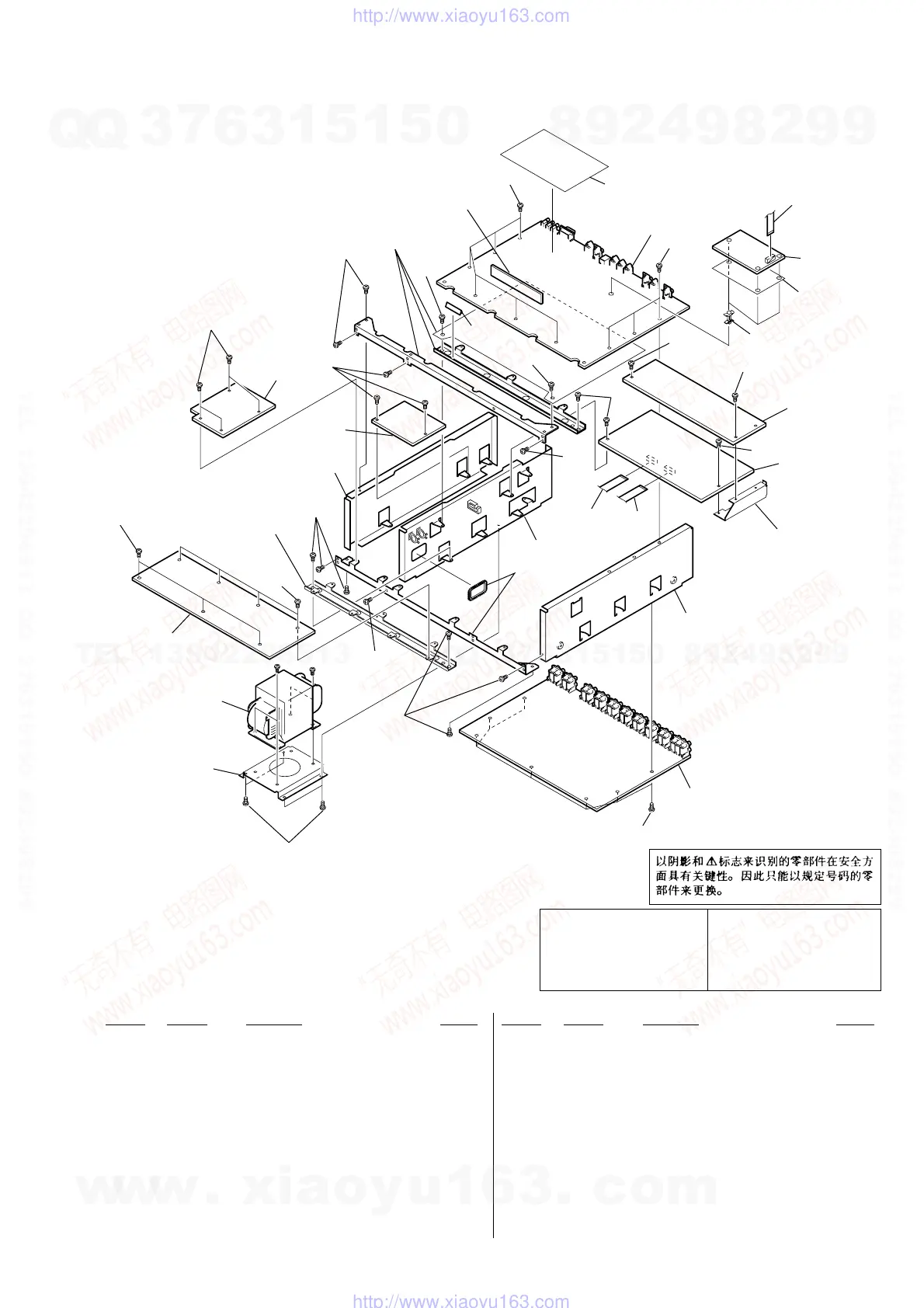

5-3. CHASSIS SECTION
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 111 1-671-196-11 CAPACITOR BOARD
* 112 A-4417-104-A POWER BOARD, COMPLETE (US,CND)
* 112 A-4417-110-A POWER BOARD, COMPLETE (EXCEPT US,CND)
* 113 A-4417-105-A ANALOG BOARD, COMPLETE (US,CND)
* 113 A-4417-112-A ANALOG BOARD, COMPLETE (EXCEPT US,CND)
114 4-974-510-01 SCREW (+BV 3X8 B)
115 3-831-441-11 CUSHION (F)
! T001 1-433-482-11 TRANSFORMER, POWER (US,CND)
! T001 1-433-483-11 TRANSFORMER, POWER (EXCEPT US,CND)
#3 7-685-880-09 SCREW +BVTT 4X6 (S)
* 101 1-670-916-11 CLOCK BOARD
* 102 A-4417-106-A DIGITAL BOARD, COMPLETE (US,CND)
* 102 A-4419-255-A DIGITAL BOARD, COMPLETE (EXCEPT US,CND)
* 103 A-4417-098-A AC3RF BOARD, COMPLETE
104 1-783-943-11 WIRE, FLAT TYPE (7 CORE)
* 105 3-703-353-01 SUPPORT, PC BOARD
* 106 A-4417-100-A VIDEO BOARD, COMPLETE
* 107 A-4417-101-A (S) VIDEO BOARD, COMPLETE
108 1-773-006-11 WIRE (FLAT TYPE)(15 CORE)
109 1-769-973-11 WIRE (FLAT TYPE)(13 CORE)
* 110 1-671-195-11 AC INPUT BOARD
101
102
103
104
105
106
107
108
109
110
111
112
113
114
114
114
114
114
114
114
114
114
not supplied
not supplied
not supplie
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
T001
#3
#3
114
114
114
114
114
115
114
114
114
114
114
