8. Aligning the unit CRANEX
®
Novus e
110 Service manual

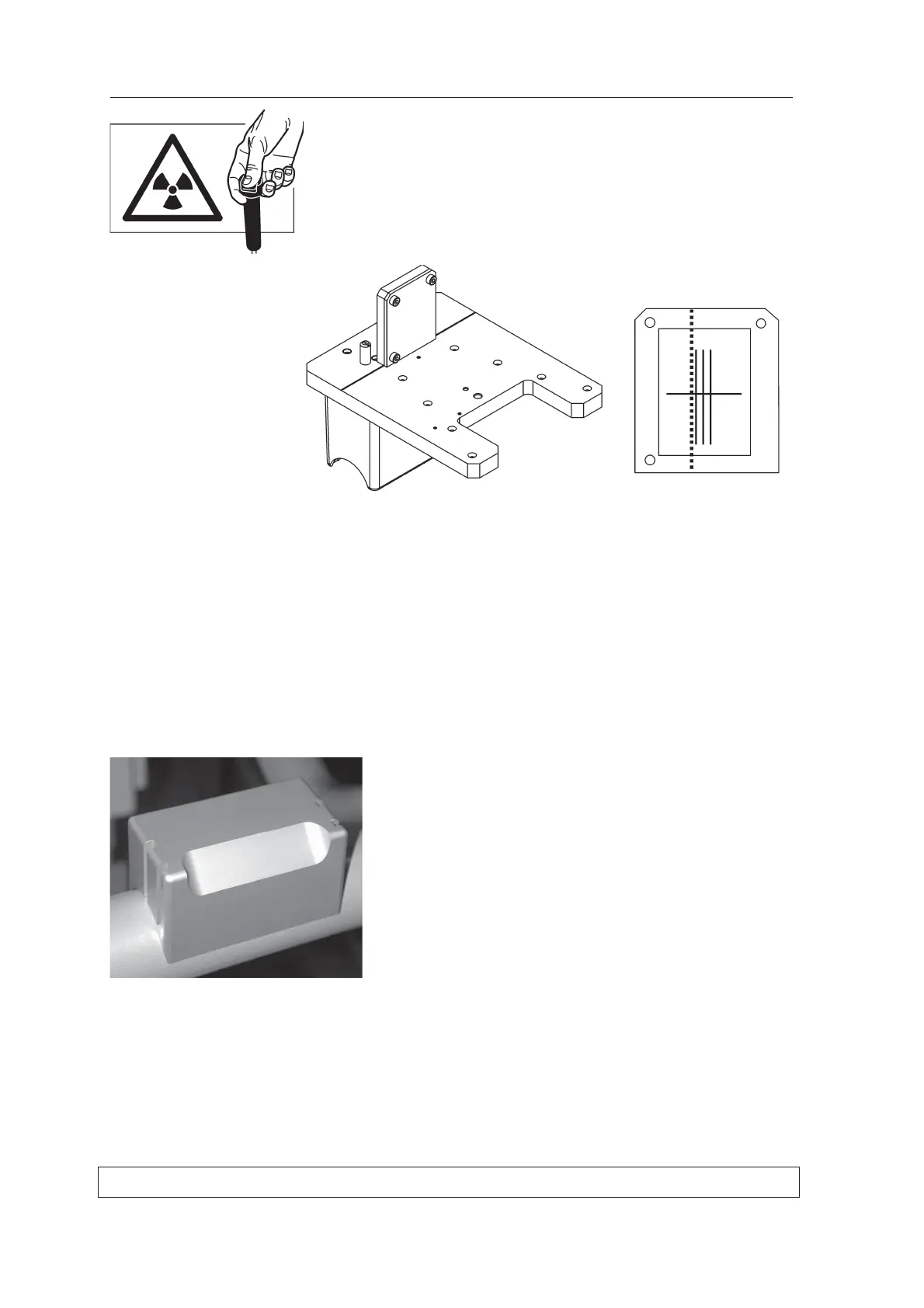

5. Protect yourself from radiation.
Darken the room and then position yourself
behind and below the tubehead.
Press and hold down the exposure switch.
Check how far the radiation beam is away
from middle line of the alignment plate.
If the beam does not strikes the middle line
of the alignment plate the position of the Chin
Support must be adjusted.
Adjusting the position of the Chin Support
1. Remove the beam alignment tool.
2. Remove the Chin Support Holder (1 screw
accessable from the underside of the patient
support handle).
