Soredex CRANEX Novus e - L1200 CPU Board

CRANEX
®
Novus e 3. Circuit Boards - L1200, CPU Board
Service manual 29
3.2 L1200 CPU Board

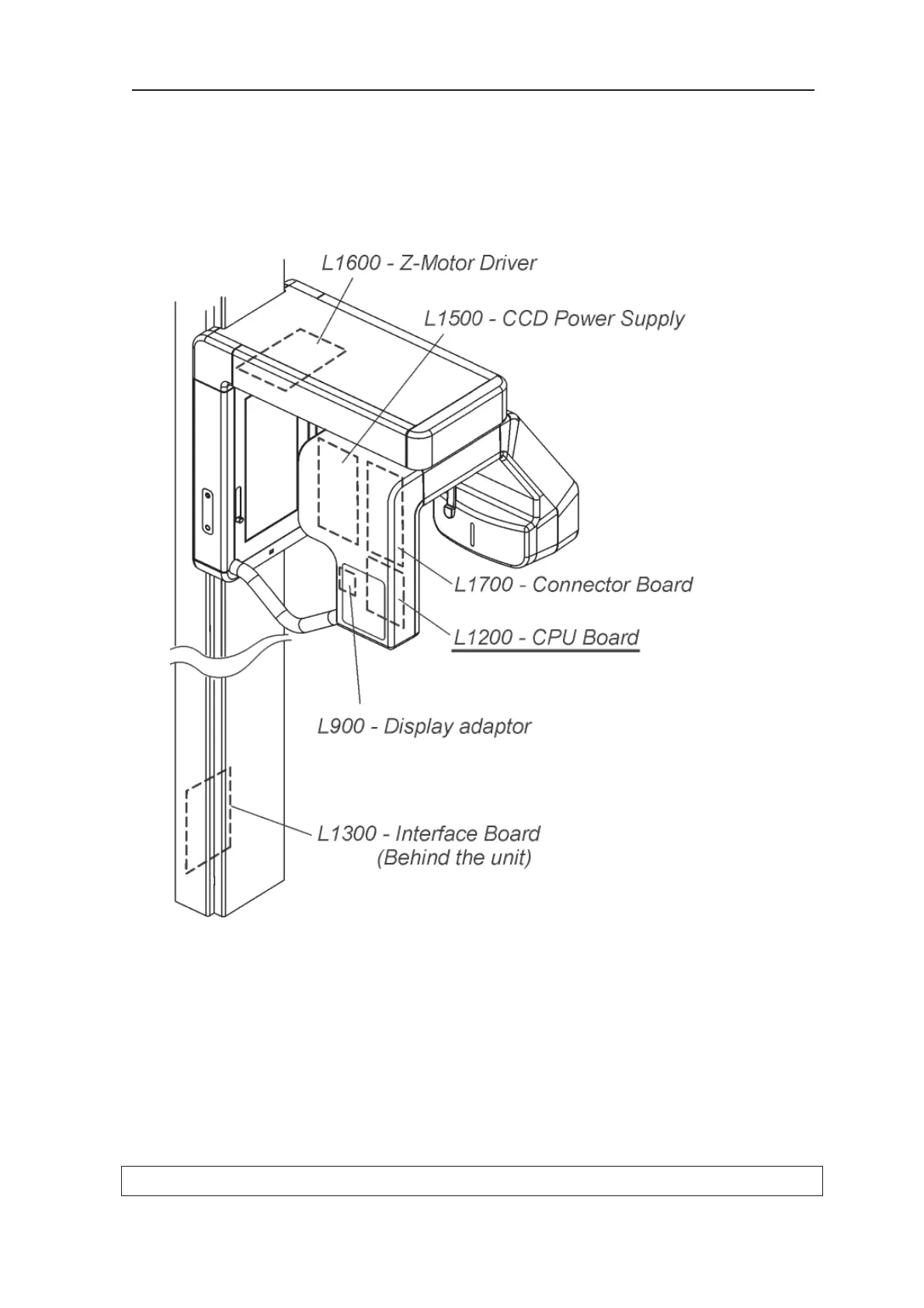

L1200 - Location
In rotating unit on the CCD sensor side. To access re-
move the sensor external cover (see section 7.1).
L1200 - Field replaceable parts
None.
