Novus e 3. Circuit Boards - L900, display adapter
Service manual 27
3. Circuit Boards
NOTE: An asterisk (*) after a signal name indicates an active low-level signal.
3.1 L900, Display adapter

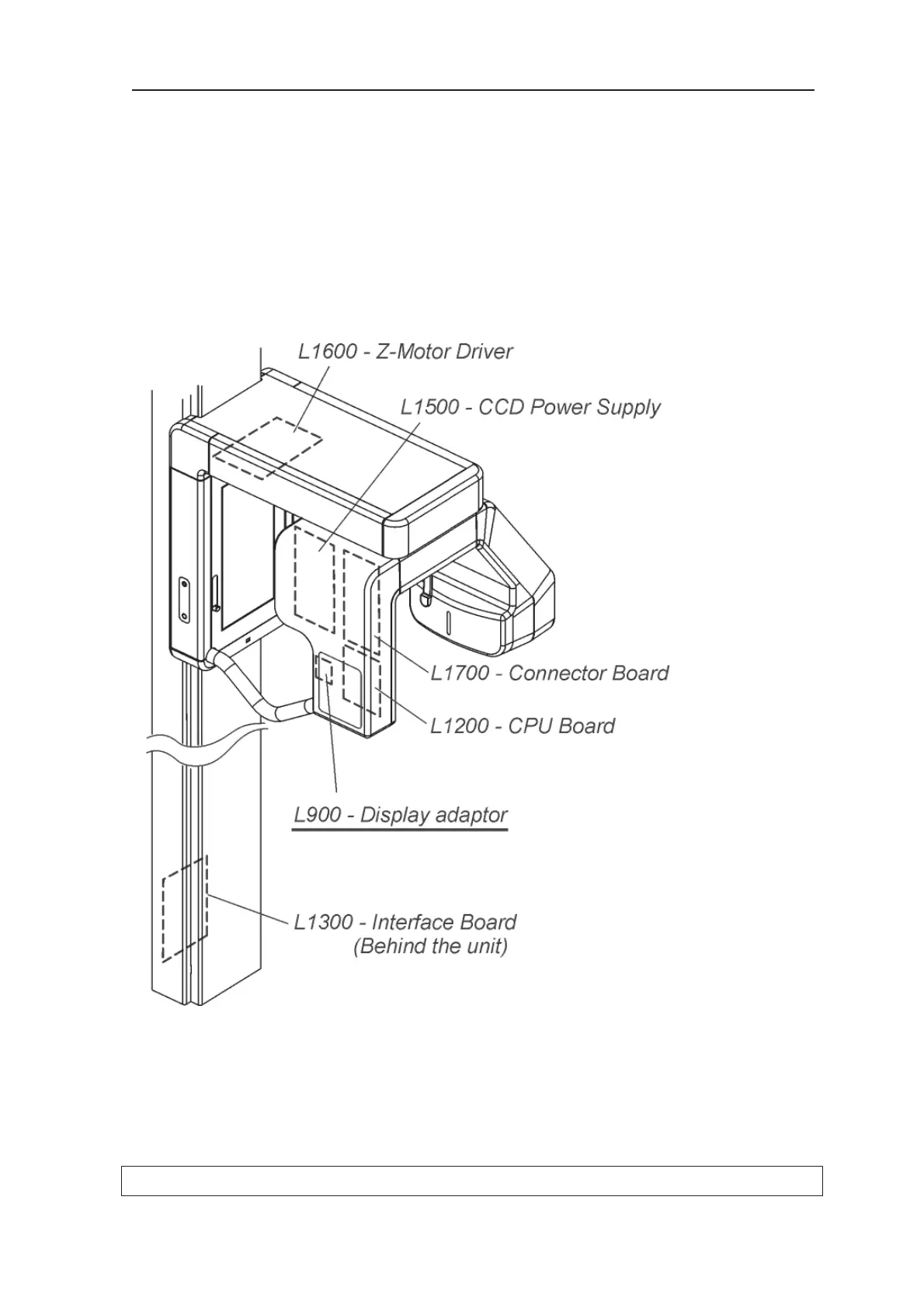

L900 - Location
In the rotating unit on the CCD sensor side.
To access remove sensor external cover.
