CRANEX
®
Novus e 3. Circuit Boards - L1300, Interface Board
Service manual 51
3.8 L1300 Interface Board

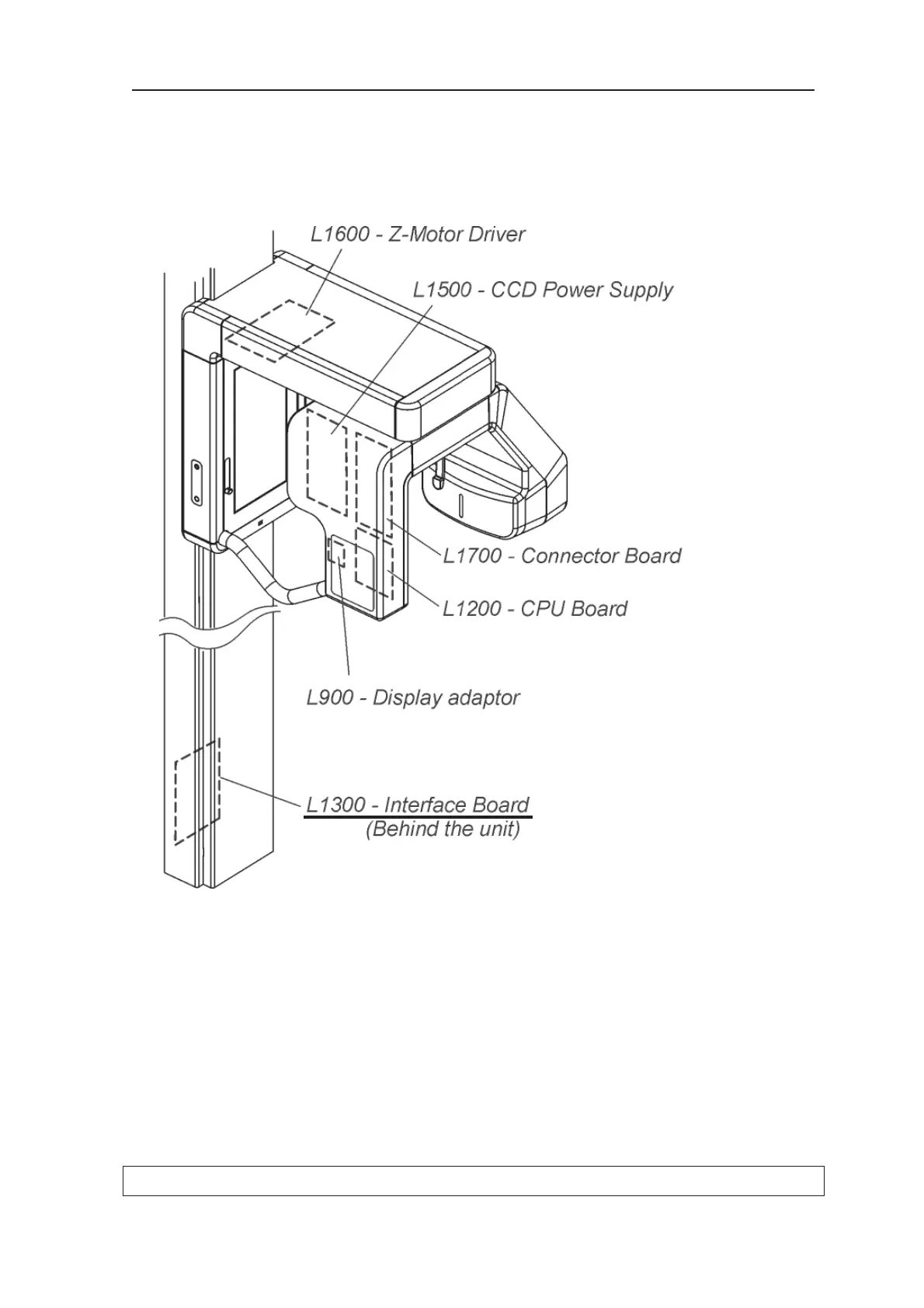

L1300 - Location
At the rear of the column near the base.
L1300 - Field replaceable parts
None.
L1300 - Description
L1300 serves as an external interface to the outside
environment. The exposure button and the remote ex-
posure button are connected to this board.
