Soredex CRANEX Novus e - Checking and Adjusting the Chin Support

CRANEX
®
Novus e 8. Aligning the unit
Service manual 109
8.4 Checking and adjusting the Chin Support
The Chin Support is in the correct positioned when
the beam strikes the middle line on the alignment
plate when the rotating unit is parallel to the side of
the upper shelf.
1. Make sure that the you are able able to see
the beam alignment tool from beneath the
tubehead.
2. Make sure that exp (exposure, no rotation,
CCD sensor not active) function has been se-
lected (CRANEX
®
Novus e service terminal).

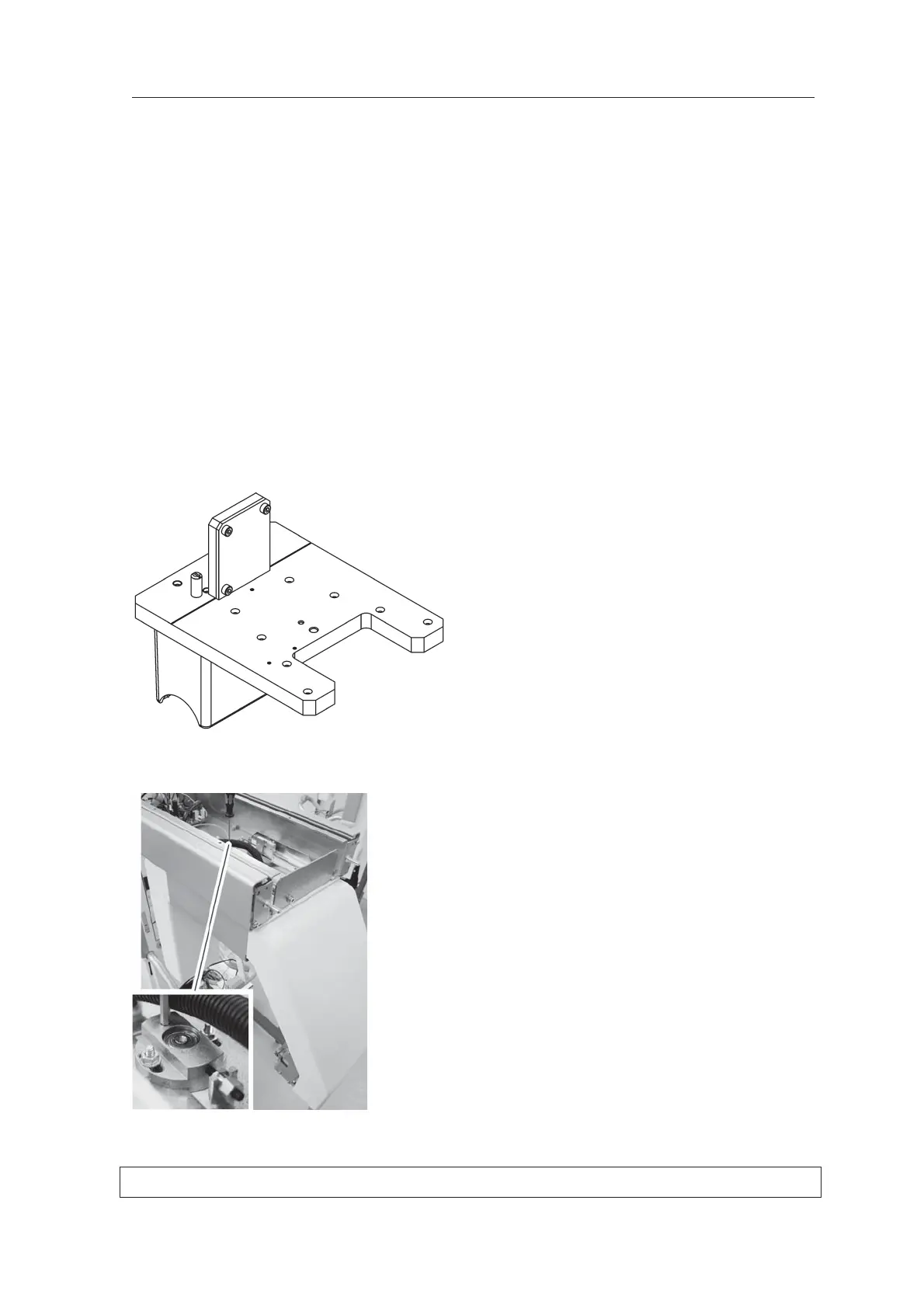

3. Place the alignment plate into the two holes at
the front of the ball pin phantom.
4. Manually rotate the Rotating Unit so that it is
parallel to the side of the upper shelf and the
tubehead is at the front. Insert a 4 mm hexa-
gon socket wrench into the locking hole in the
Rotation bearing to hold the rotating unit in
position.
