16 Service Manual
2. Unit Description CRANEX
®
Novus e
Inside the tubehead there is the x-ray tube. It is a fi xed
tungsten anode type.

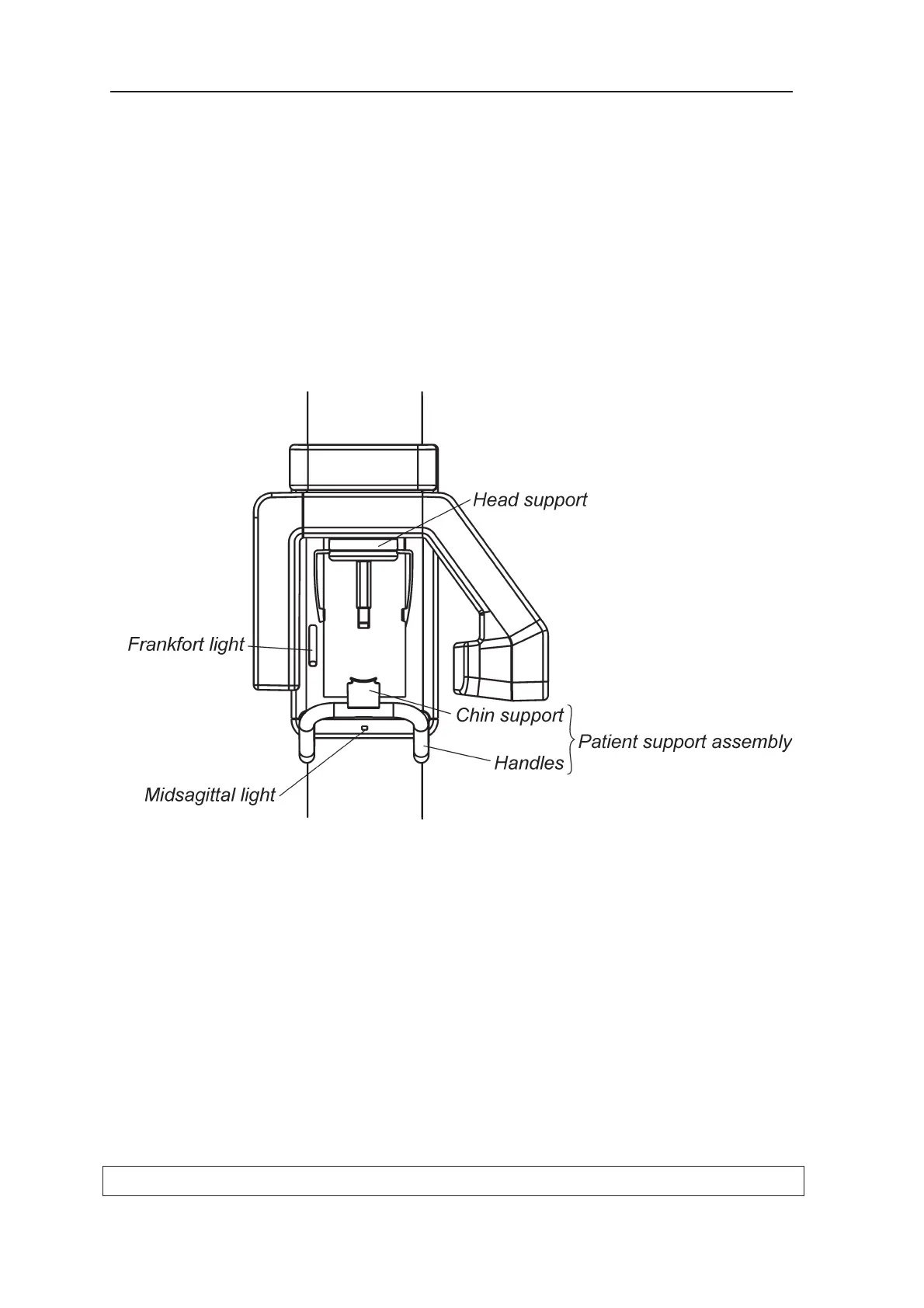

The patient support assembly is attached to the bot-
tom of the vertical carriage. It comprises handgrips for
the patient to hold and the patient support.
The chin rest supports the patients lower jaw and the
two temple supports on the head support hold the up-
per part of the patient's skull.
There are three patient positioning lasers, midsagittal
light, Frankfort (horizontal) light and Focal through
light.
