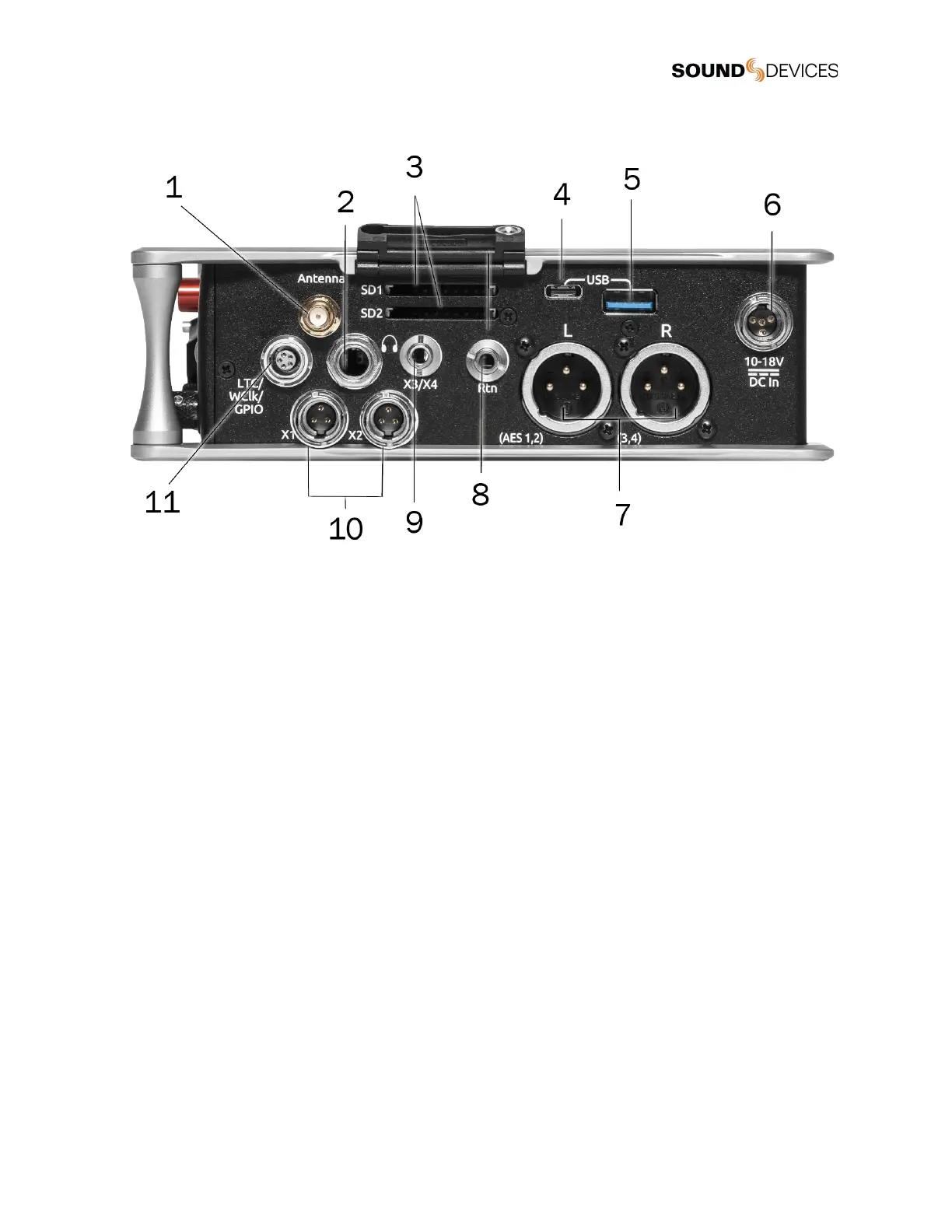

Right Side Panel
1: Antenna RP-SMA-Male Connector
Connects to included external antenna for Bluetooth LE.
2: 1/4” Headphone Jack
1/4-inch TRS headphone output. Warning! This output can drive headphones to potentially dangerous levels. [Sleeve = ground, tip =
left, ring = right].
3: SD 1 and 2 Card Slots
Insert SD card media for recording. Insert label side down.
4: USB C Port
1. File transfer.
2. 2-in/2-out USB audio streaming
5: USB A Port
1. USB keyboard.
2. USB to SD-Remote Android app.
3. USB to the CL-16, CL-12, and approved 3rd party fader controllers.
4. Supports USB hubs.
5. Jam A20-Mini Timecode.
6: 10-18v DC TA4 Jack
Accepts DC voltages from 10–18 V for powering. [pin-1- GND, pin-2- Smart Battery DATA, pin-3- Smart Battery CLOCK, pin-4-
+10-18 VDC].
7: Main Outputs L (AES 1,2), R (AES 3,4) XLR Jacks
Analog outputs on standard 3-pin XLR-3M connectors. Analog Output levels are selected between Line, -10, and Mic levels in Main
menu > OUTPUTS. Can be set to send AES3 digital signals (1,2 and 3,4 on L and R respectively) in Main menu > OUTPUTS.
Routing determined in the Outputs menu. [pin-1 = Ground; pin-2 = hot (+); pin-3 = cold (-). Unbalance by floating pin-3].
8: Aux In 3.5 mm Jack
Auxiliary input used for extra inputs or camera return [Sleeve = ground, tip = left, ring = right].
