Scorpio User Guide
36
Feature Description
Hirose 4-pin DC Input Hirose 4-pin DC input for powering the SL-6 and Scorpio. Power must be attached to this connector or an NP-1 battery must
be inserted to power the SL-6 and Scorpio.
Coaxial DC Outputs
(12 V Isolated)
Isolated 12 V DC outputs that draw from the active SL-6 power source (Hirose 4-pin or NP-1). Each output is on by default
but can be switched off from the Power section of the Main menu.
Coaxial DC Outputs (12 V) 12 V DC outputs that draw from the active SL-6 power source (Hirose 4-pin or NP-1). Each output is on by default but can be
switched off from the Power section of the Main menu.
USB Charging Port Standard USB 5 V DC output that draws from the active SL-6 power source (Hirose 4-pin or NP-1).
The USB port on the SL-6 is designed for charging only, not for data transfer.
Coaxial DC Outputs
(12 V)
Coaxial DC Outputs
(12 V Isolated)
Hirose 4-pin DC Input
USB Charging Port
Power only (5V DC)

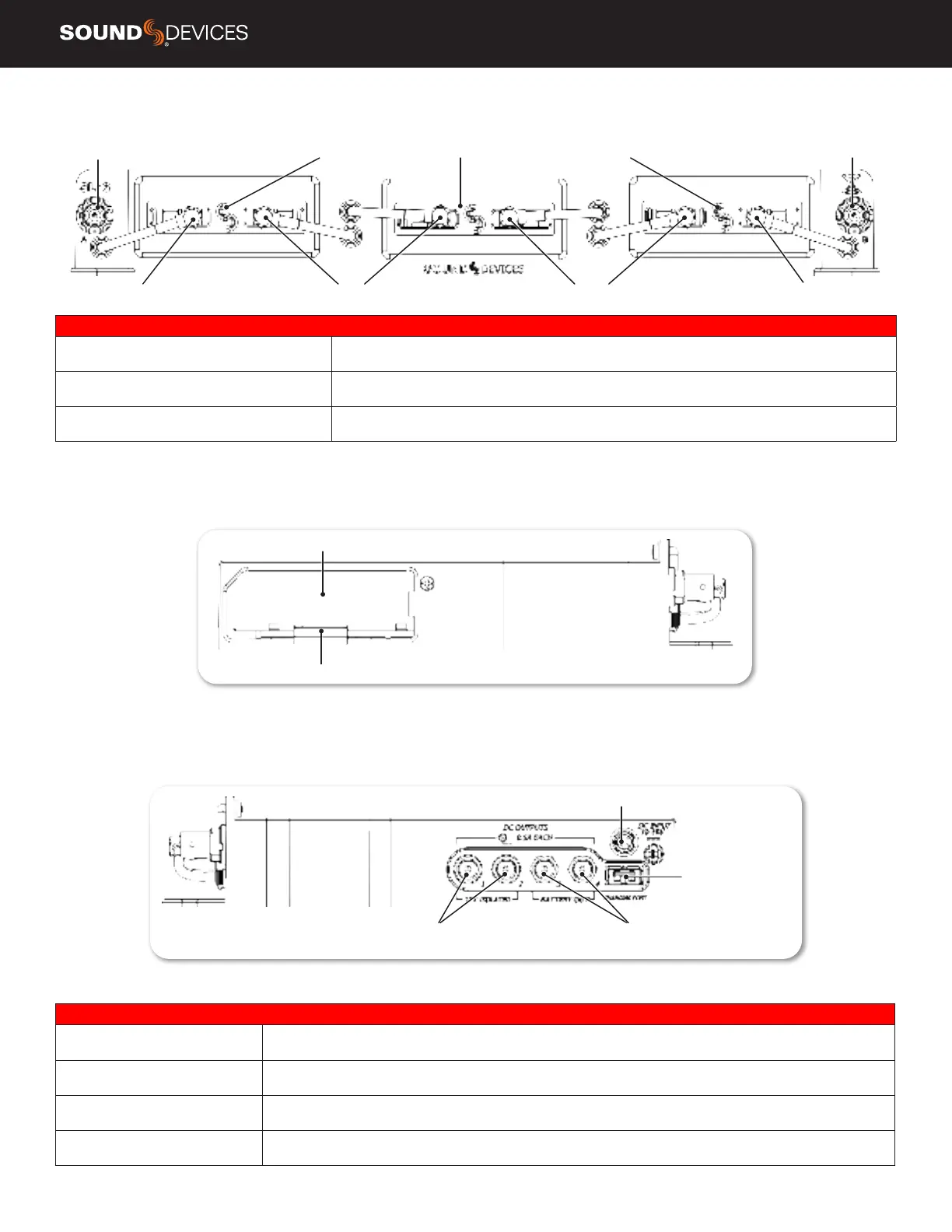

SL-6 RIGHT PANEL
SL-6 FRONT PANEL
Feature Description
Receiver Slots Each slot accepts one (single- or dual-channel) SuperSlot or Unislot receiver. The connection provides power to
the receiver and connects the receiver’s audio output directly to the Scorpio.
Antenna Distribution leads SMA connectors with right-angle adapters are used to connect receivers to the SL-6 antenna distribution
system.
Antenna Connectors BNC connectors are used for attaching external antennas to the SL-6 antenna distribution system.
Use BNC to
SMA adapters, included with the SL-6, for antennas with SMA connectors.
Antenna Distribution lead (B) Antenna Distribution lead (A)Antenna Distribution lead (A)
Antenna Connector BReceiver Slot B Receiver Slot CReceiver Slot A
Antenna Connector A
Antenna Distribution lead (B)
SL-6 LEFT PANEL
The left panel of the SL-6 provides the NP-1 battery compartment, which accepts NP-1 batteries (14 V, Li-ion).
NP-1 battery compartment
Metal retainer tab
