Scorpio User Guide
49

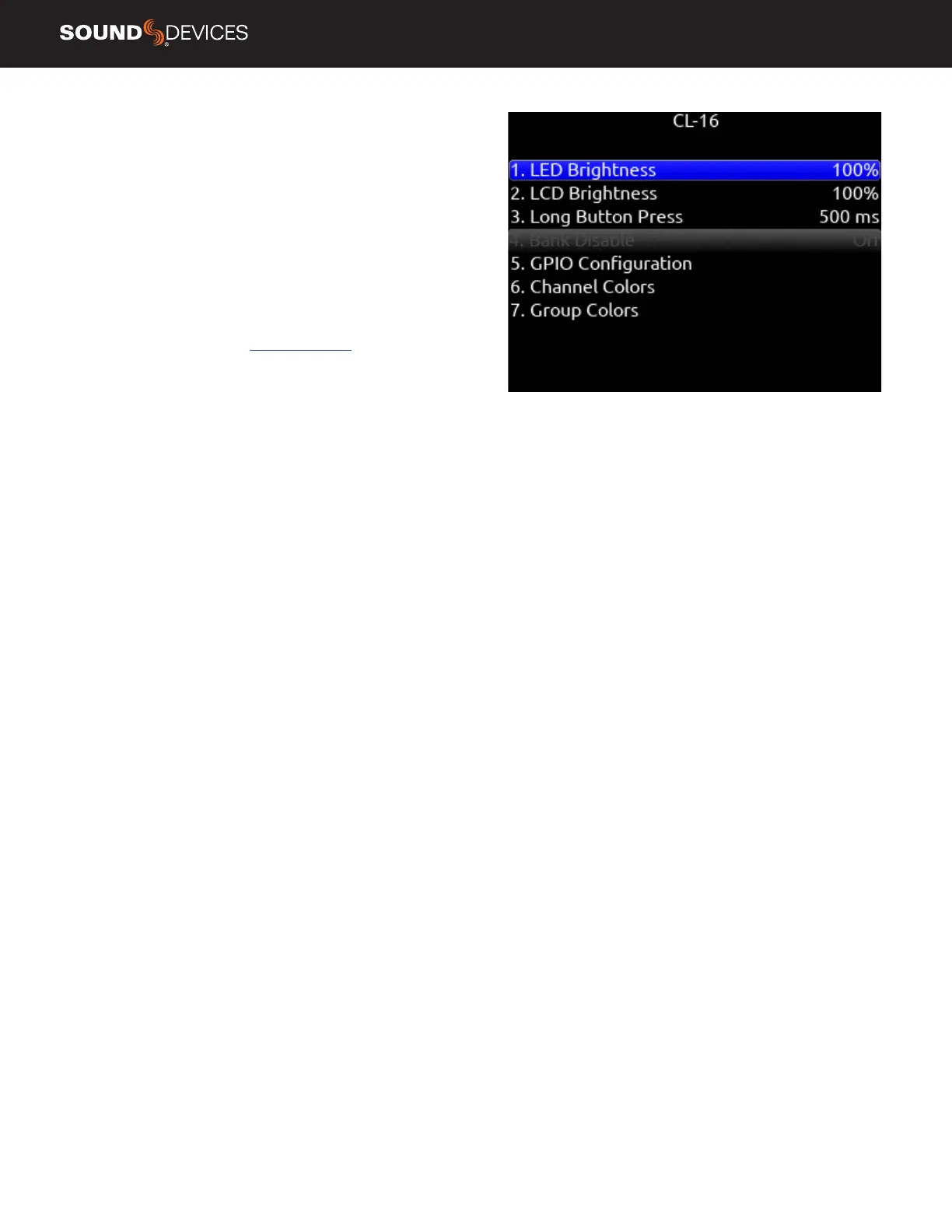

CL-16 Selects CL-16 menu.
1. LED Brightness: 5-100% in increments of 5% (100% is default)
2. LCD Brightness: 5-100% in increments of 5% (100% is default)
3. Long Button Press: 300-1000 ms in increments of 5 ms (500 ms
is default)
4. Bank Disable: On or Off (off is default)
5. GPIO Conguration: Opens menu to display GPIO_1 - GPIO_8 (see
below for options and details)
6. Channel Colors: Opens a menu to assign background colors to LCD
channel strips 1-32.
7. Group Colors: Opens menu to assign Group 1-4 Color (Defaults:
1=Yellow, 2=Orange, 3=Light Blue, 4=Light Green). Color options:
Yellow, Orange, Light Blue, Light Green, Green, Light Brown, Brown,
Violet, Pink.
CL-16 Operation is covered in the CL-16 User Guide.
CL-16 GPIO (GENERAL PURPOSE INPUT/OUTPUT)
The 10-pin Phoenix connector labeled Remote provides eight GPIO
ports. These can be used as simple contact-closure inputs, and to
drive LEDs or relays.
CL-16 REMOTE PIN FUNCTIONS
Ground (-) - for triggering logic-low connections.
1 - 8 - Congurable as inputs or outputs, activate high or low, and
assigned a function.
+5 V DC - for triggering logic high connections.
Active High inputs trigger when +5V is applied.
Active Low inputs trigger when ground is applied.
Active High outputs go to 5 V when the mapped function is active.
Active Low outputs go to ground when the mapped function is active.
GPIO Outputs can be used to drive LEDs with a proper series resistor.
Resistor values vary from LED to LED, 470 ohms is a good starting
point.
Although the CL-16 has protection against ESD (static electricity),
highly inductive loads (like relays, bells etc) may require extra diode
protection to protect against inductive voltage spikes. Make sure to
protect the CL-16 with an anti-parallel diode across the coil of what is
being driven.
CL-16 GPIO CONFIGURATION MENU
INPUT/OUTPUT toggle on Mic/Tone Switch
ACTIVE HIGH/ACTIVE LOW toggle on */** Switch
DEFAULTS GPIO_1=Record, 2=Play, 3=Stop, 4=None, 5=None,
6=Record, 7=Play, 8=Stop
AVAILABLE OPTIONS None, Auto Mixer On/Off, Bus Mode, Channel
Groups Edit, Channel Sends on Faders, Channel Source Edit, Circle
Take, Com Send 1, Com Send 1 (Latch), Com Send 1 (Momen-
tary), Com Send 2, Com Send 2 (Latch), Com Send 2 (Momentary),
Com Rtn 1, Com Rtn 2, Create Sound Report, Dante Out Edit, Edit
Scene Name, Edit Take Notes, Edit Take Number, EQ Mode, Fader
Bank Left, Fader Bank Right, False Take, Fast Fwd, Fat Ch Mode, Fat
Ch Mode Bus, Fav HP Preset, Fav Toggle, Home, HP Presets Menu,
Jog Is HP, Jog Is Select, Jog Wheel Press, L-Ident, LR Returns Meter,
Menu, Meter, Mic Toggle, Mix Low Cut Mode, Mix Pan Mode, Mix
Trim Mode, Nav Down, Nav Left, Nav Right, Nav Up, Out Mode, Play,
Play Remain Time, Record, Rewind, Rtn A, Rtn B, Rtn C, Rtn Toggle,
SL-6 Receiver Overview, Scene Inc, Scene Name, Select, Slate, Slate
(Latch), Slate (Momentary), Stop, Take List, Take Notes Edit, Take
Number Edit, Timecode Jam, Toggle Jog is Select, Tone, Tone Toggle,
*Toggle, **Toggle
