Scorpio User Guide
50

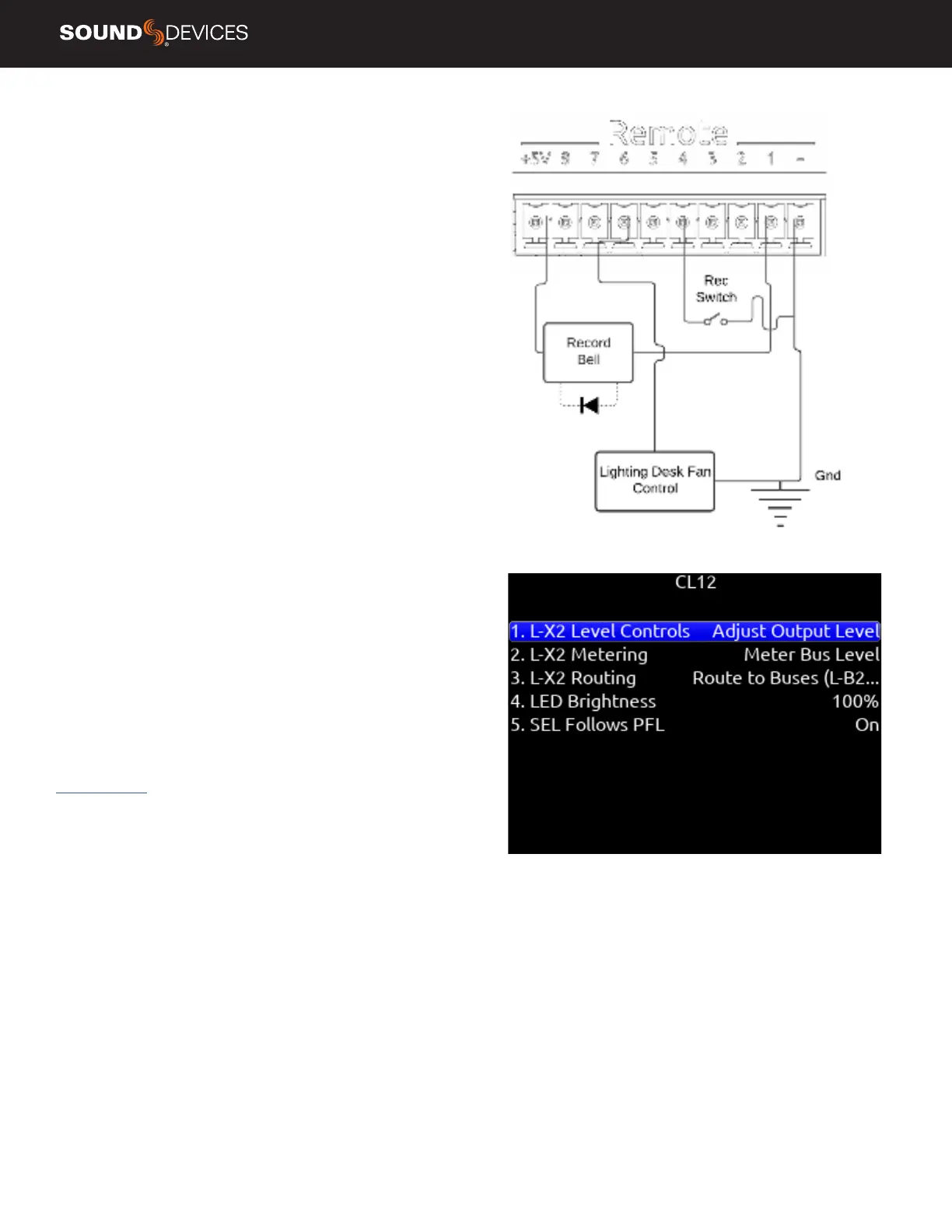

CL-16 GPIO WIRING DIAGRAM EXAMPLE
In this example, an external contact-closure switch starts recording
and the GPIO outputs are used to sound a record bell and turn off a
lighting fan.
Record bell:
GPIO pin 1 settings:-
- Output
- Active Low
- Record
Record contact-closure switch:
GPIO pin 4 settings:
- Input
- Active Low
- Record
Lighting fan control (Fan requires +5 V on its trigger input to turn off):
GPIO pin 6 settings:
- Output
- Active High
- Record
CL-12 Selects CL-12 menu.
1. L-X2 Level Controls: sets whether the L-X2 pots control bus level or
output level or whether they are disabled altogether.
2. L-X2 Metering: sets whether the L-X2 meters display bus or output
levels.
3. L-X2 Routing: sets whether L-X2 routing is to buses L-X2 or outputs
L-X2.
4. LED Brightness: sets CL-12 LED brightness
5. SEL Follows PFL: selects whether a channel is automatically select-
ed when its PFL is engaged.
CL-12 CONTROLLER
12 channel linear fader controller with control over fader gain, PFL,
Arm, EQ, buses, outputs, coms, transport, metadata, and more. For
detailed setup and operational information, please refer to the
CL-12 User Guide.
Tips:
When CL-12 is connected to Scorpio, trim gains are controlled from
Scorpio.
Slate mic can be toggled on/off by pressing both COM 1 and COM 2
simultaneously.
When adjusting EQ from the CL-12, the EQ values are displayed at the
bottom of the meter view.
A USB-A to USB-A cable is required to connect the CL-12.
Pressing stop while in stop will toggle between editing the next take
and current take’s scene, take and notes metadata.
