The selected antennas can be switched using the [ANT] key while
working either in the “OPERATE” or in the “STANDBY” mode and
there is no transmission in progress.
If you want to bypass the Tuner on a certain band and for a certain
antenna, just press the [TUNE] key and you will see a "b" next to the
box.
To remove the bypass just press [Tune] again.

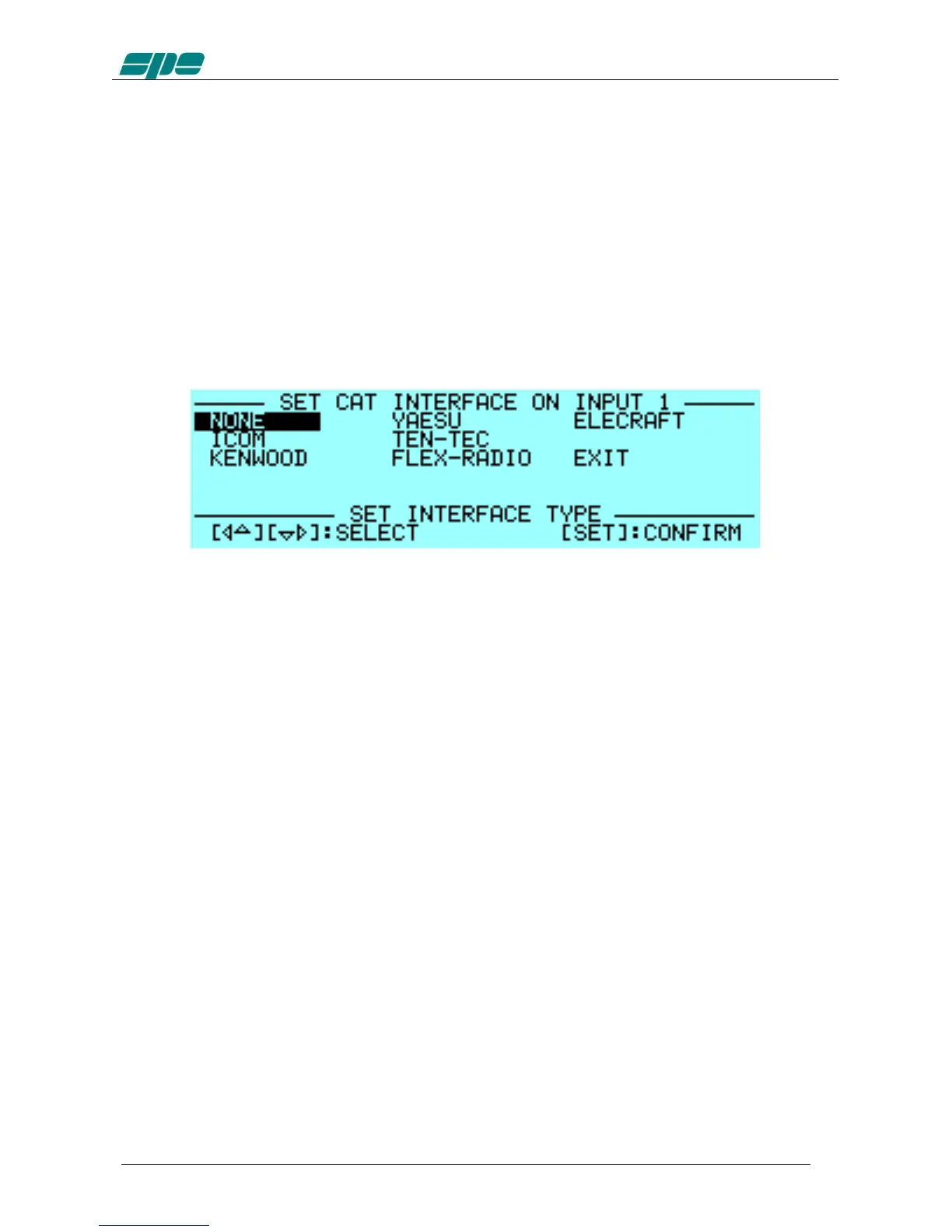

b) CAT: Allows you to program the amplifier to accept control commands from
specific transceiver types.
You should refer to your transceiver user manual to ensure that it is
correctly programmed to handle such a link.
Choose the brand of transceiver or function.
For the proper link wiring, see "CONNECTIONS" in this manual.
- NONE Select this option when there isn’t a link with the transceiver.
Then, only the amplifier frequency counter will be used .
- ICOM Set to “CI-V“ protocol. You also need to choose the baud
rate, which is usually 9600.
- KENWOOD You have to choose the baud rate (almost always 9600).
- YAESU If you use the CAT connection (read the “CONNECTIONS”
chapter of this manual), select the model of the transceiver
and then select the baud rate (almost always 4800).
If the model isn’t in the list, select “Band Data“ and read the
“CONNECTIONS” chapter of this manual.
For new transceiver models not listed, select FT 2000/9000
or try "Kenwood".
- TEN-TEC Make the CAT connection (read the “CONNECTIONS”
chapter of this manual) and follow the menu instructions.
- FLEX-RADIO Make the CAT connection (read the “CONNECTIONS”
chapter of this manual) and follow the menu instructions.
- ELECRAFT Make the CAT connection (read the “CONNECTIONS”
chapter of this manual) and follow the same indications as for
KENWOOD.
Note: When using the CAT link, check that the baud rate of your transceiver is set to
the same value as the amplifier.
