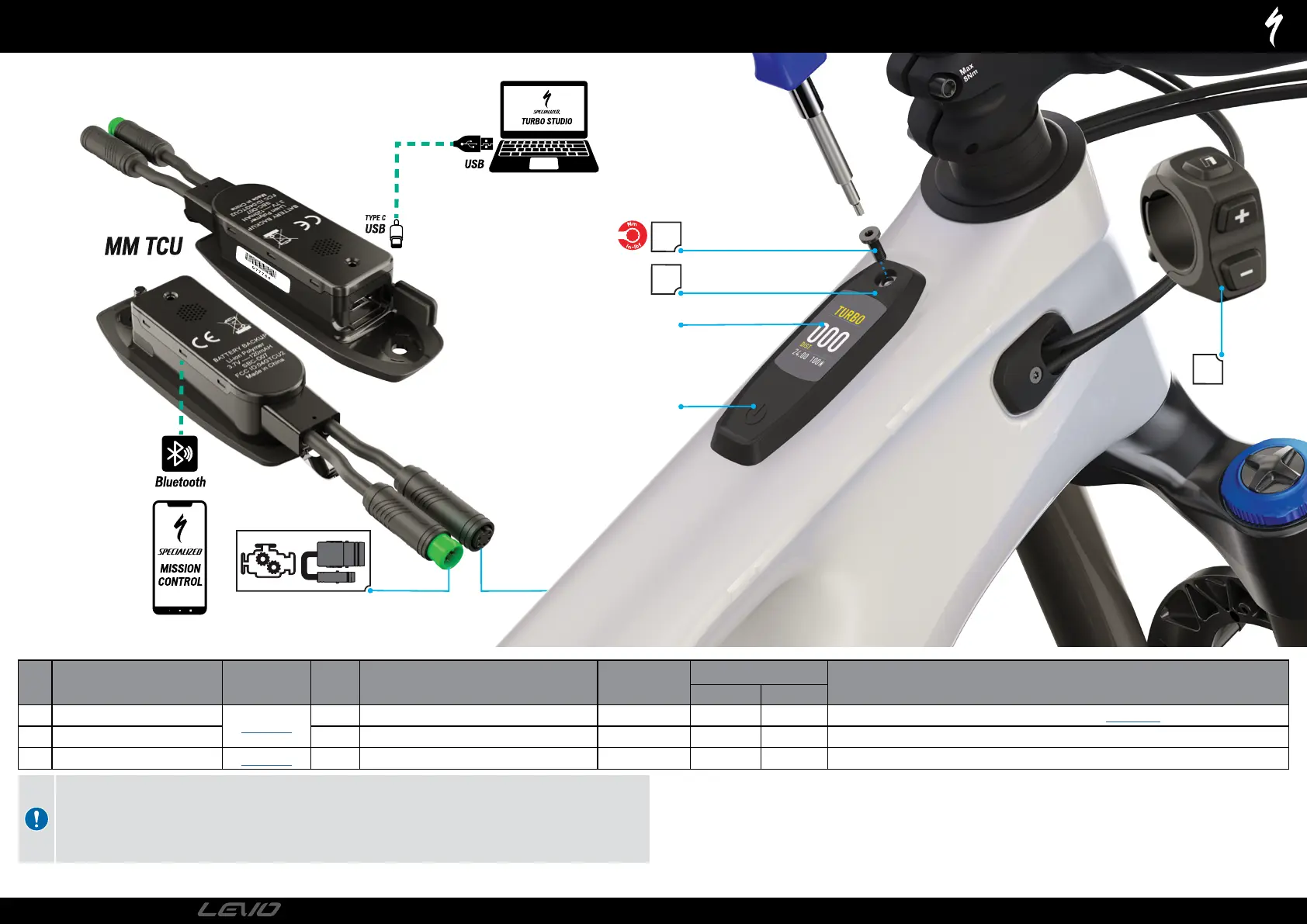

DISPLAY
POWER
A
B
C
MASTERMIND TCU
# PART NAME PART NUMBER QTY SPEC TOOL
TORQUE
COMMENT
Nm in-lbf
A Display Mounting Screw
S216800020
1 M4 x 10 mm 0.7 mm P Torx TX 10 0.8 7
DO NOT OVERTIGHTEN MAX 0.8 Nm. (Optional Replacement Screw S210500022)
B MasterMind TCU 1 N/A N/A N/A Update Firmware Via Type C USB Data Cable And Turbo Studio.
C MasterMind Trail Remote
S216800019 1 2 mm hex 0.8 7 DO NOT OVERTIGHTEN; MAX 0.8 Nm
CAUTION: The TCU sits above the top tube and has the potential to be struck by the handlebar or stem when the handlebar is
rotated fully. When assembling the bicycle, make sure to have enough clearance between the handlebar, stem, and the TCU.
The number of spacers below the stem necessary to clear TCU will depend on several factors. These include stem model/
length/orientation, which TCU version your bicycle is equipped with, and the head tube angle adjustment position.
PAGE
30
2022
TECHNICAL GUIDE
