7.11.3 Replacing the filter mats

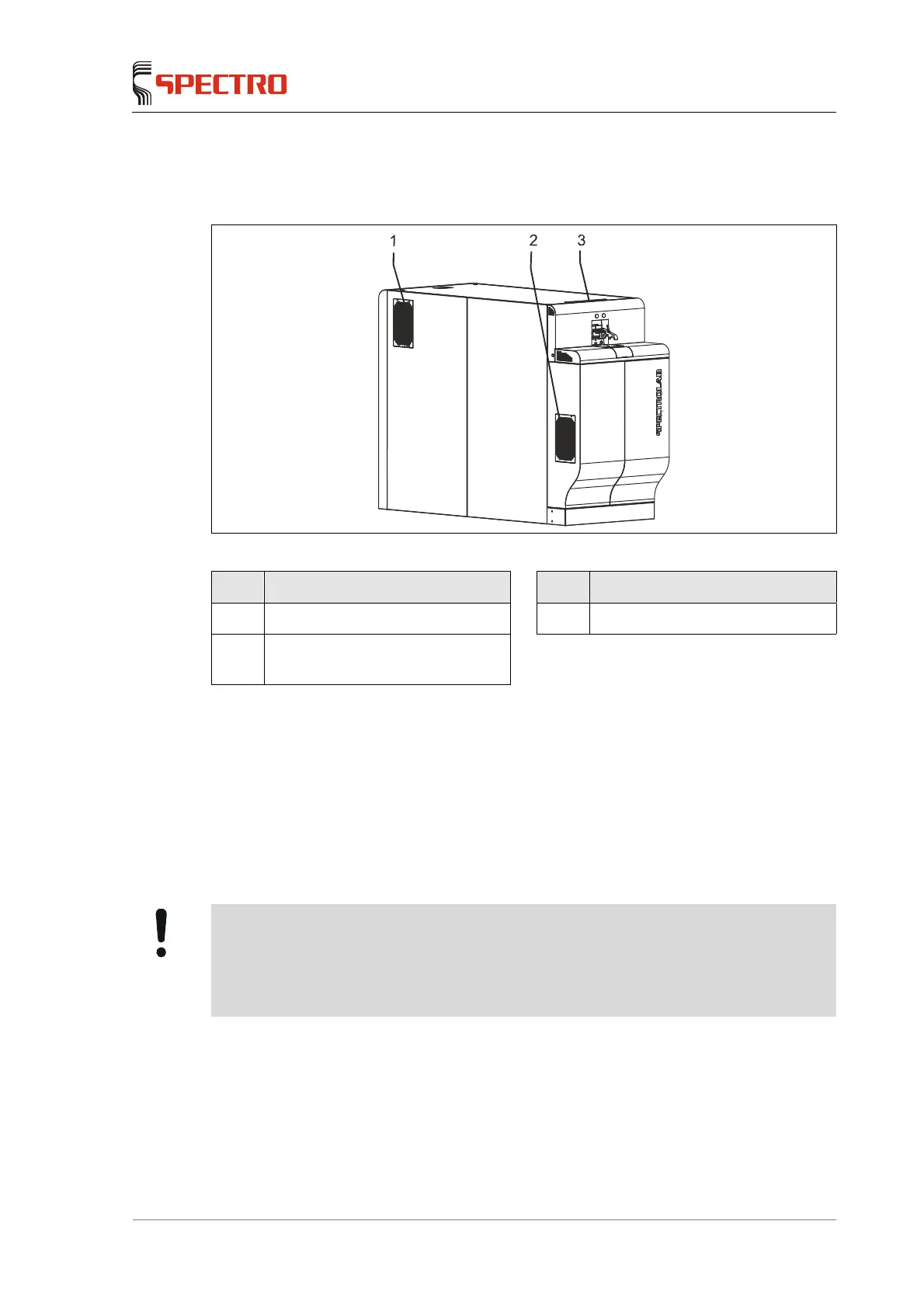

Fig. 20
No. Component No. Component
1 Filter mat for cooling system 3 Filter mat electronic room
2 Filter mat spark discharge
(Plasma generator)
In order to replace the air filter, proceed as follows:
1. Loosen the fasteners on the respective covers.
2. Remove the old filter mats.
3. Install the new filter mats.
4. Install the cover.
Now, the filter mats are replaced.
Notice! Damage to instrument!
Improper repairs may damage the instrument.
Do not repair the instrument yourself. Contact the SPECTRO Customer
Service or inform your technical management.
