1.3.3 Spark stand

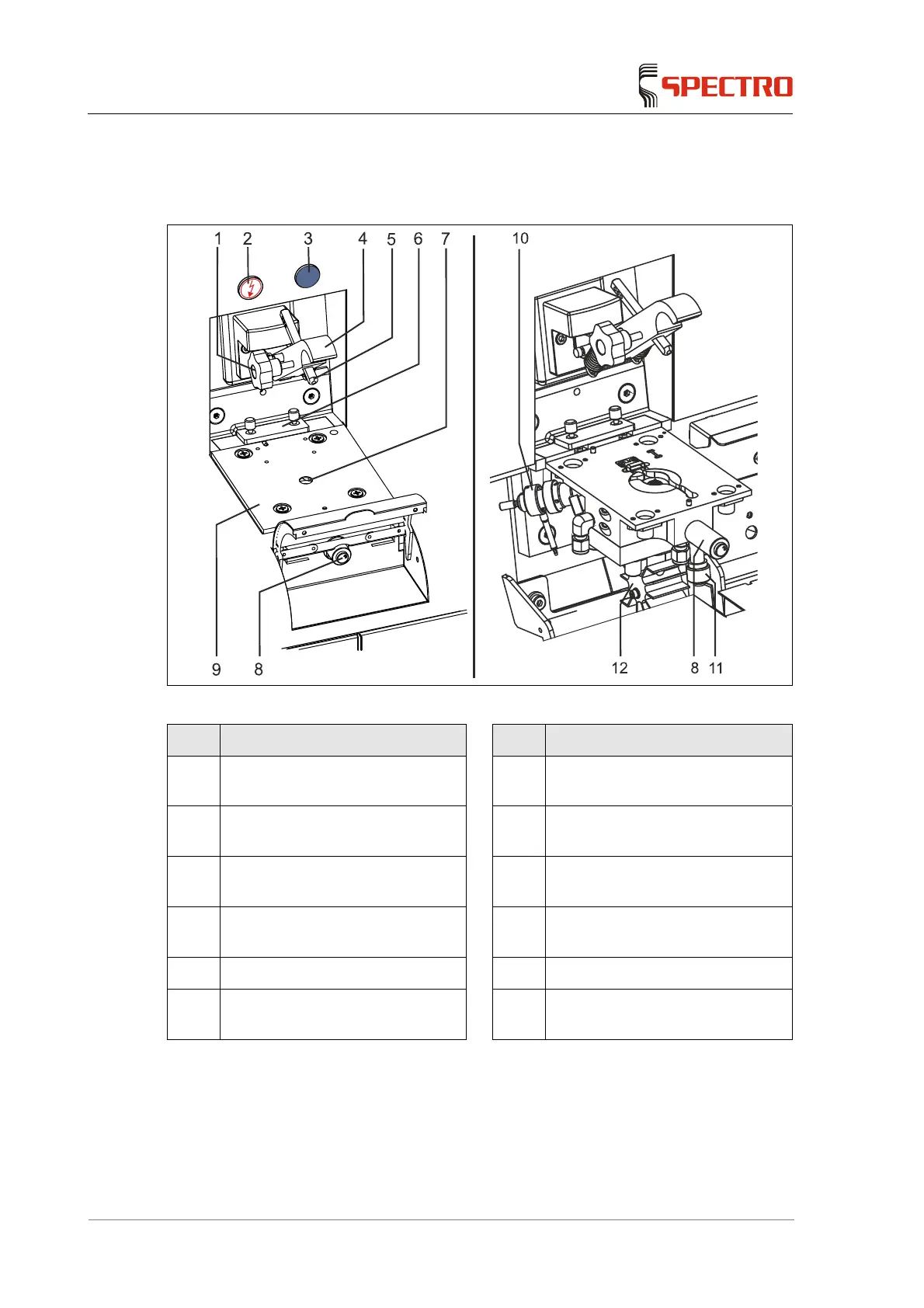

Fig. 3
No. Component No. Component
1 Locking wheel for contact 7 Electrode and spark stand insert
(below the spark stand plate)
2 On/Off switch for spark discharge
(Plasma generator)
8 Spacer
3 Status display of spark discharge
(Plasma generator)
9 Sparky stand plate
4 Clamp (swinging) 10 Optical fibre for air optical system
(only for LAVM12)
5 Contact (movable) 11 Outlet to filter system
6 Replaceable window (in the light
channel to the optical system)
12 Electrode holder
