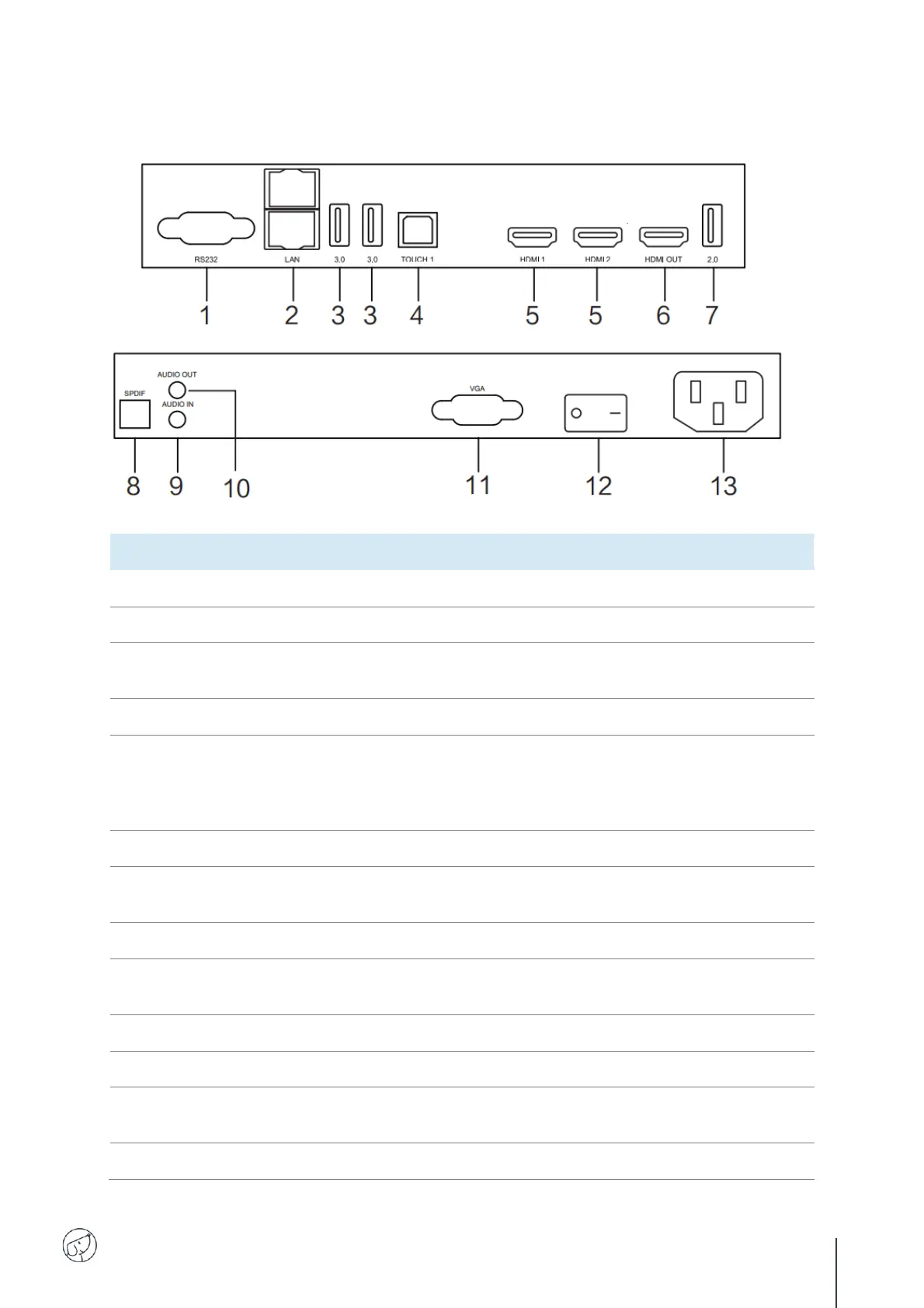

3.2. Terminal Interface
N°
NAME
DESCRIPTION
1
RS232
Serial interface, used for mutual transfer of data between devices
2
LAN
Connected to Ethernet
3
USB 3.0
Connect USB devices such as mobile hard disk, USB keyboard, mouse, USB
drives, etc.
4
TOUCH 1
Touch signal output to the external computer
5
HDMI
High-definition multimedia interface signal input, connect to devices with
SPDIF VGA AUDIO OUT AUDIO IN 8 9 11 1 2 3 3 4 5 5 6 7 10 12 13 9 HDMI
output interface (personal computer with HDMI output, set-top box, or another
video device).
6
HDMI OUT
Connected to the devices with HDMI input function (monitor).
7
USB 2.0
Connect USB devices such as mobile hard disk, USB keyboard, mouse, USB
drives, etc.
8
SPDIF
Carry multichannel sound via optical signals.
9
AUDIO IN
External audio sources input(It is generally used as the sound input of the VGA
interface).
10
AUDIO OUT
Audio output to the external speaker.
11
VGA
External computer image input
12
AC SWITCH
To open or shut down AC power supply. “I” means power on, “O” means power
off.
13
AC IN
AC power input, connecting AC power supply.
