5. From the main screen rotate the roller to access the telemetry screen and verify the flight
log data and receiver voltage displays.
dilll Telemetry
'.Volts: 1 5 . 3 v
RPM
Temp: — — — — p
Temperature, Voltage and Optional RPM Sensors

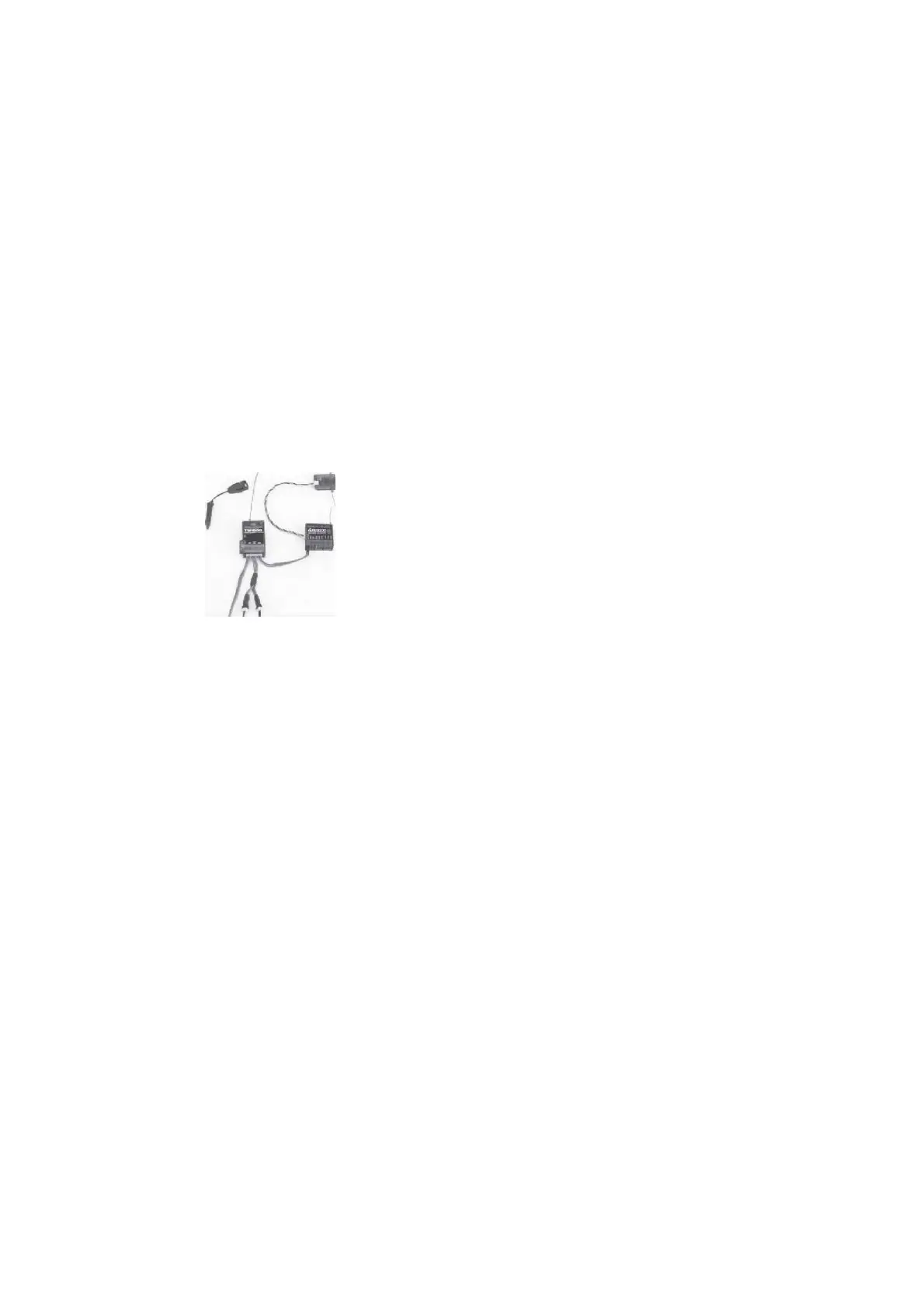

The TM1000 includes a temperature and external voltage sensors. Optional RPM sensors are
available for Gas/Glow and electric brushless models to monitor RPM.
Temperature Sensor
To monitor the temperature of most any component, secure the sensor on the object. It must
come into contact with the surface to get an accurate temperature reading. You can loop the
temperature sensor around the engine's cylinder head to assist in tuning an engine. To
monitor battery temperature, you can wrap the sensor around the battery. The mounting
position of the sensor, especially on gas or glow engines, will result in different temperature
readings. So it's important to experiment with different positions.
RPM (optional sensor sold separately)
Two RPM sensors are available: SPMA9569 for nitro and gas engines, SPMA9558 for
brushless electric motors.
