Adjusting Aileron to Rudder Mix Rates
Rotate the roller to highlight the rate values then press. Note that both rates are boxed. Moving the aileron stick right or left causes the right or
left value only to be highlighted so you can adjust the values individually. Move the aileron stick in position to highlight the desired rates then
rotate the roller to adjust the value. Note that positive + and negative - values reverse the direction of the mix. Press the roller to accept the
rate.
12 SPEKTRUM DX8 • RADIO INSTRUCTION MANUAL
Assigning Aileron to Rudder Mix to a
Switch
Rotate the roller to highlight Sw: at the
bottom of the screen. Press the roller to
access the switch select function then select
the desired switch to turn on/off the aileron to
rudder mix. If you select On, the mix will
always be on.
Verify the aileron to rudder mix is working
properly and in the correct direction by
placing the active switch in the active
position and moving the aileron stick noting
the rudder position. If the rudder moves in
the opposite direction than desired, the
opposite value (positive vs. negative value)
is needed.
Note: the Elevator to Flap mix
operates in the same fashion as
alieron to rudder mix.
MIXING
The DX8 offers eight mixes in airplane model
type. There is an Elevator to Flap mix, Aileron
to Rudder mix, and six user- programmable
mixes that allow the mixing of any channel to
any other channel. Programmable mixes
include a trim offset function that adjusts the
mix crossover point and a trim include
function that applies the master's trim to the
slave channel. You can assign Mixes to the
following switches or flight modes: Inhibit-
Off On - Always on Gear - Gear switch Ail -
Aileron dual rate switch Ele - Elevator dual
rate switch Rud - Rudder dual rate switch
FM1 - Flight mode 1 FM2 - Flight mode 2
FM1, 2 - Flight mode 1 and 2 Mid - Flap
switch mid position Land - Flap switch land
position To Access the Mixing Functions
With the transmitter on and the main or
telemetry screen displayed, press the roller.
The Function list displays.
PROGRAMMABLE
MIXES
Programmable mixes allow any channel to
be mixed to any other channel or to itself.
Popular programmable mixes include
rudder to steerable nose wheel, dual rudder
mix, dual elevator mix, rudder to aileron and
rudder to elevator mix for knife edge
correction.

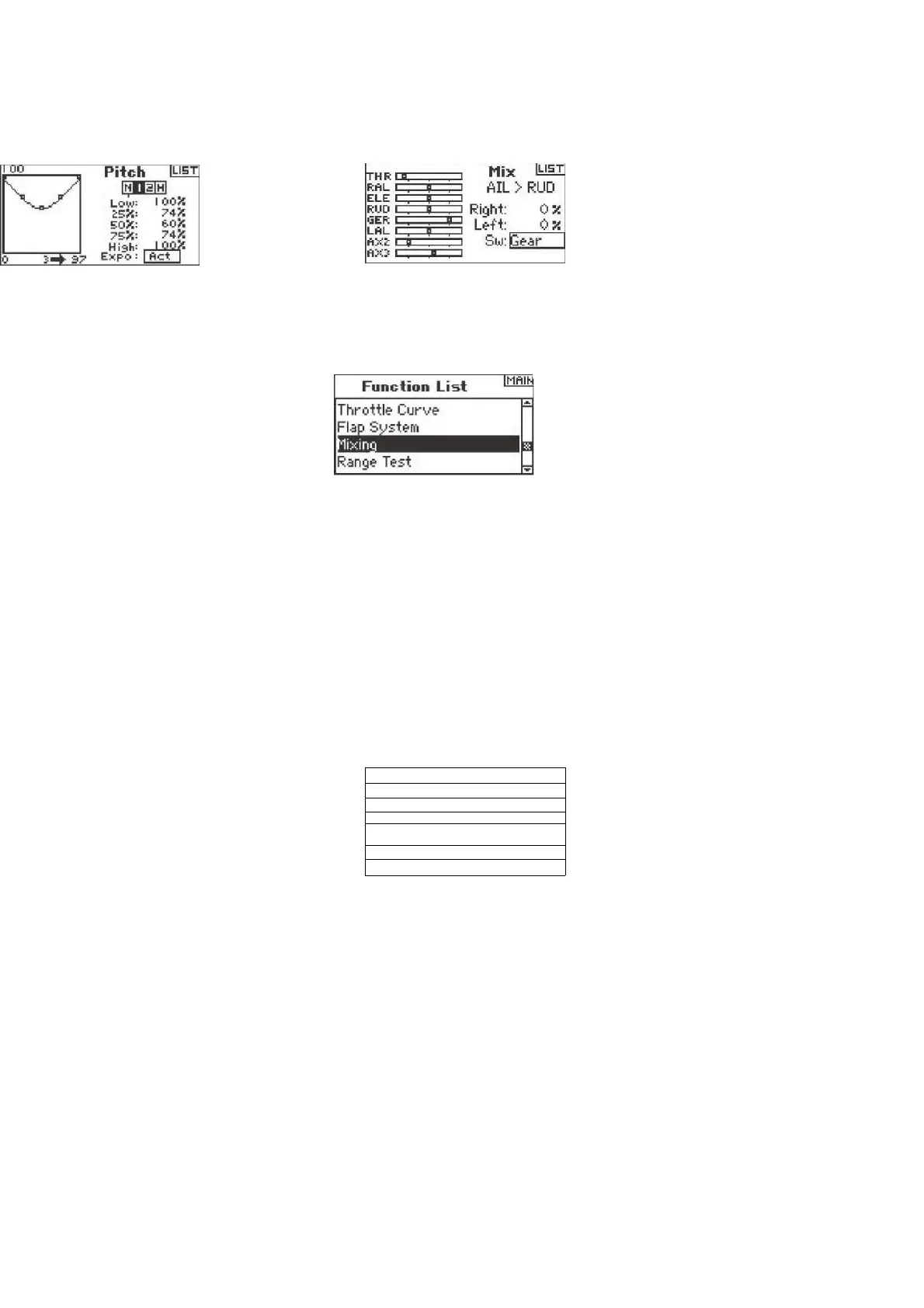

rrtjc i H Mix ItSl
kHl 1 1 AIL > RUD
kl 1- 1 1
. ........... , 1 —^J Right: 13 5i
1
1 fli 1 1
i=g=| Left:l -13X1
FW 1 j. ~ 1 Ri.r nssr
ftV-J 1
To Next Page
