21SPEKTRUM NX7e • TRANSMITTER INSTRUCTION MANUAL
EN

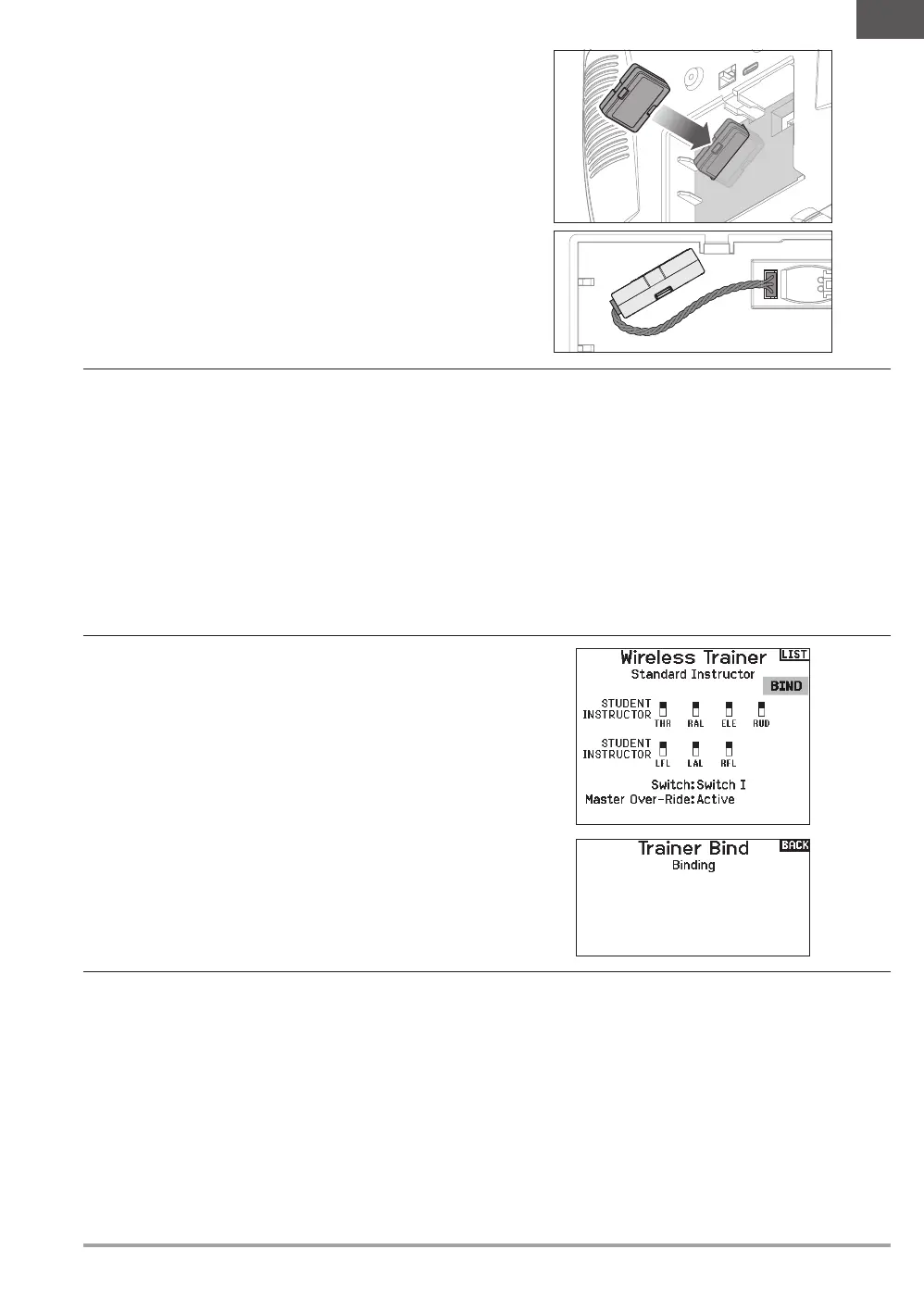

Wireless Trainer Remote Receiver Installation
1. Refer to the Removing the Gimbal and Battery Covers section
to remove the battery cover.
2. Install the SRXL2 DSMX remote receiver (SPM9747, not included)
into the foam slot in the battery compartment.
3. Connect the remote receiver cable to the wireless trainer port.
4. Replace the battery cover.
Binding the Student Transmitter To the Instructor Transmitter
1. Power ON the NX7e to be used as the instructor transmitter.
2. Navigate to the Trainer menu in the System Setup list.
3. Select the wireless trainer option and the desired instructor
type option.
4. Select BIND and follow the onscreen instructions.
5. Put the student transmitter into bind mode. The student
transmitter will bind to the receiver installed in the instructor
transmitter.
Instructor Transmitter Configuration
1. Select the type of trainer mode for the application (Wired or
Wireless, Programmable Instructor or Pilot Link Instructor).
2. Choose whether or not to enable Master Over-Ride. This
setting defines how the instructor can resume control from
the student. When enabled, the instructor must not move the
sticks when the student is given control. Moving the sticks or
moving the selected trainer switch will return control to the
instructor.
With Master Over-Ride inhibited, the switch position
determines who is in control. When switch I is selected,
master over-ride is inhibited by default. When any other switch
is selected, master over-ride is active.
3. If Wireless Trainer mode was selected in step 1, bind the
student transmitter to the instructor transmitter. See the
Binding Wireless Trainer section.
4. Determine which channels to assign to the student when given
control by moving the on-screen switch for each channel.
Students can be given control of a single channel or all
channels, as the instructor sees fit.
