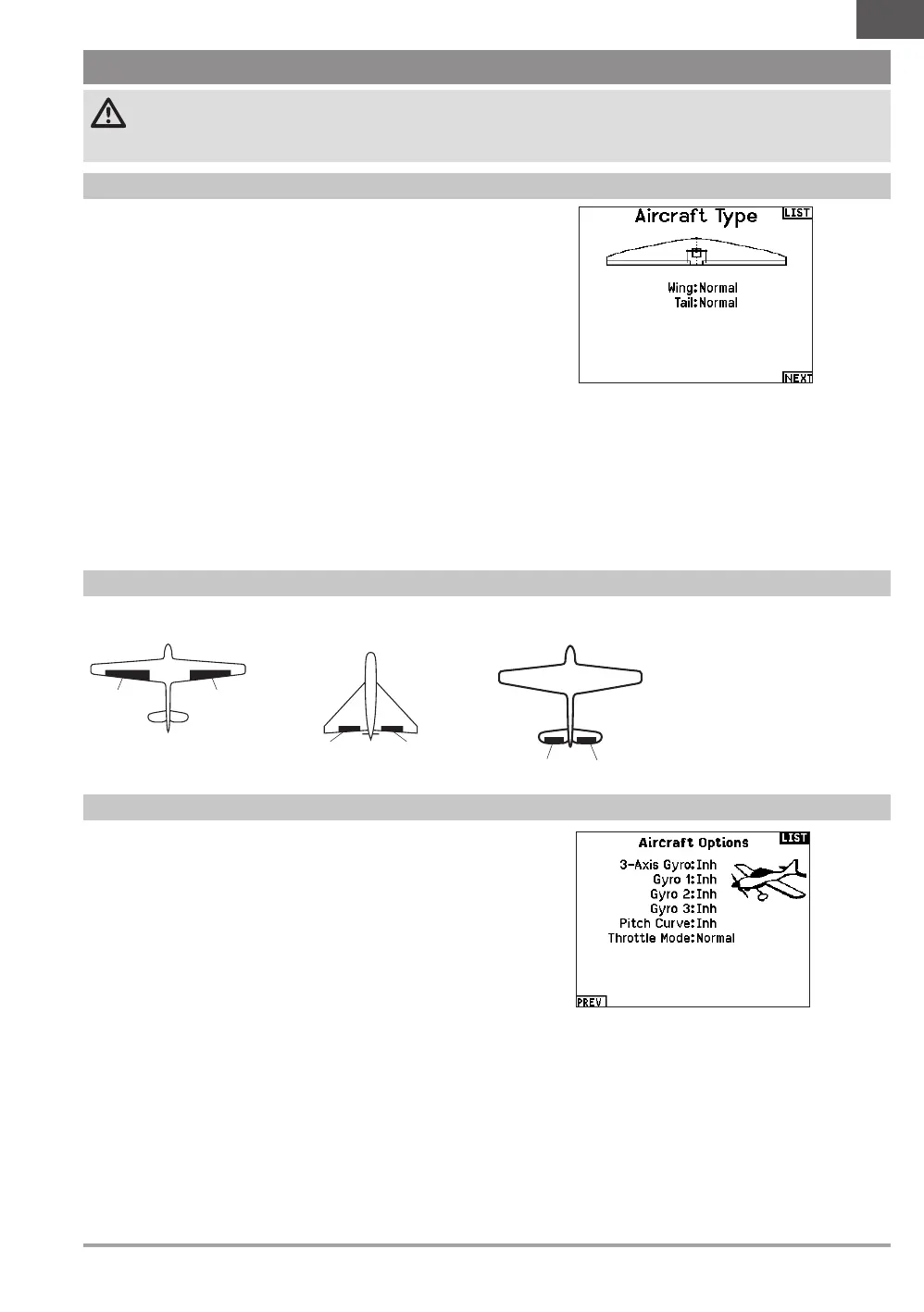

39SPEKTRUM NX7e • TRANSMITTER INSTRUCTION MANUAL
EN
Aircraft Type
Use the Aircraft Type Screen to select wing and tail types to match
your airplane model. Diagrams and setup names show on the
transmitter screen to show the available setups.
Select wing and tail types before doing any other programming.
Refer to spektrumrc.com for more information about new NX7e
AirWare software updates to support these options.
Wing
• Normal
• Flaperon*
• Dual Aileron*
• 1 Aileron 1 Flap*
• 1 Aileron 2 Flap*
• 2 Ailerons 1 Flap*
• 2 Ailerons 2 Flap*
• Elevon*
• Elevon B*
Tail
• Normal
• V-Tail A**
• V-Tail B**
• Dual Elevator
• Dual Rudder
• Dual Rudder/Elevator
• Taileron
• Taileron B
*Selection of multiple ailerons activates the Differential menu option.
** “V-Tail A” and “V-Tail B” function as internal servo reversing. If V-Tail A
does not work correctly with your aircraft, try V-Tail B.
A AUX1 servo port (left aileron)
B AILE servo port (right aileron)
C ELEV servo port (left V-tail)
D RUDD servo port (right V-tail)
E AILE servo port (left aileron)
F ELEV servo port (right aileron)
A
DC
DC
F
F
E
E
B
A B
Dual Aileron Wing
Type Connection
A
DC
DC
F
F
E
E
B
A B
Elevon Wing Type
Connection
A
DC
DC
F
F
E
E
B
A B
V-Tail Type
Connection
CAUTION: Always do a Control Test of your model with the transmitter after programming to make sure your model responds
as desired.
NOTICE: Refer to your airplane manual for recommended control throws.
ACRO (AIRPLANE)
Recommended Servo Connections
Aircraft Options
To change the Aircraft Icon:
1. In the Aircraft Type Screen, select NEXT at the bottom right of
the screen. This will access the Aircraft Options screen.
2. Scroll to the image and click once. Roll the scroll wheel left or
right for optional images.
3. Click on the image you wish to select.
To use the gyro menus:
Chose 3-Axis Gyro if you want to use a single gain value to
manage your 3-axis gyro. If you want to change gyro gain to match
your flight modes, select Gyro 1,2 or 3.
To use the Pitch Curve:
If you want a pitch curve on an airplane, activate this function.
You can only use two of these options due to the channel count
limit of your NX7e. Once these options are chosen, the related
menus appear in the Function List.

Spektrum NX7e Specifications

General

Proper use	Airplane
Control type	Buttons, Lever, Rotary
Product type	Transmitter
Compatibility	-
Product color	Black, White
Frequency band	2.4 GHz
Housing material	Plastic
Channels quantity	7 channels
Manual	Yes
Quantity per pack	2 pc(s)
Receiver included	No
Display type	TFT
Display diagonal	2.8 \
