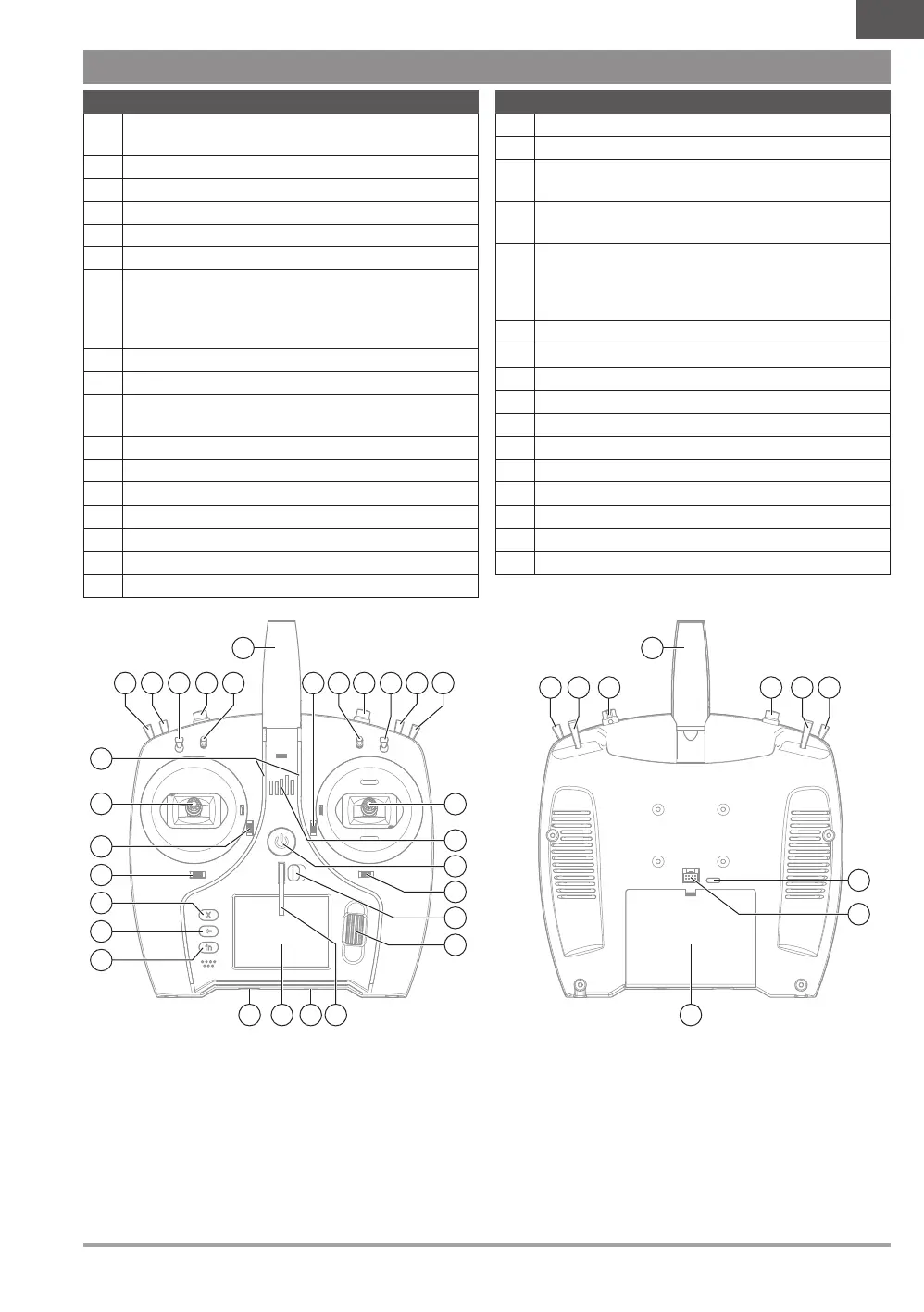

TRANSMITTER FUNCTIONS
Function
1
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
2 Switch E
3 R Knob
4 Switch F
5 Switch H
6 Switch G
7
Throttle/Aileron Stick (Mode 1)
Elevator/Aileron Stick (Mode 2)
Throttle/Rudder Stick (Mode 3)
Elevator/Rudder Stick (Mode 4)
8 LED
9 Power Button
10
Aileron Trim (Mode 1, 2)
Rudder Trim (Mode 3, 4)
11 Neck Strap Mount Unlock Button
12 Scroll Wheel
13 Neck Strap Mount
14 Lock Tool Slot
15 LCD
16 Micro Memory Card Slot
17 Function Button
Function
18 Back Button
19 Clear Button
20
Rudder Trim (Mode 1, 2)
Aileron Trim (Mode 3, 4)
21
Elevator Trim (Mode 1, 3)
Throttle Trim (Mode 2, 4)
22
Elevator/Rudder Stick (Mode 1)
Throttle/Rudder Stick (Mode 2)
Elevator/Aileron Stick (Mode 3)
Throttle/Aileron Stick (Mode 4)
23 LED Strips
24 Switch B
25 Switch A
26 Switch C
27 Button I
28 Switch D
28 Antenna
29 Antenna
30 USB C Port
31 Data Port
32 Battery Compartment

Spektrum NX7e Specifications

General

Proper use	Airplane
Control type	Buttons, Lever, Rotary
Product type	Transmitter
Compatibility	-
Product color	Black, White
Frequency band	2.4 GHz
Housing material	Plastic
Channels quantity	7 channels
Manual	Yes
Quantity per pack	2 pc(s)
Receiver included	No
Display type	TFT
Display diagonal	2.8 \
