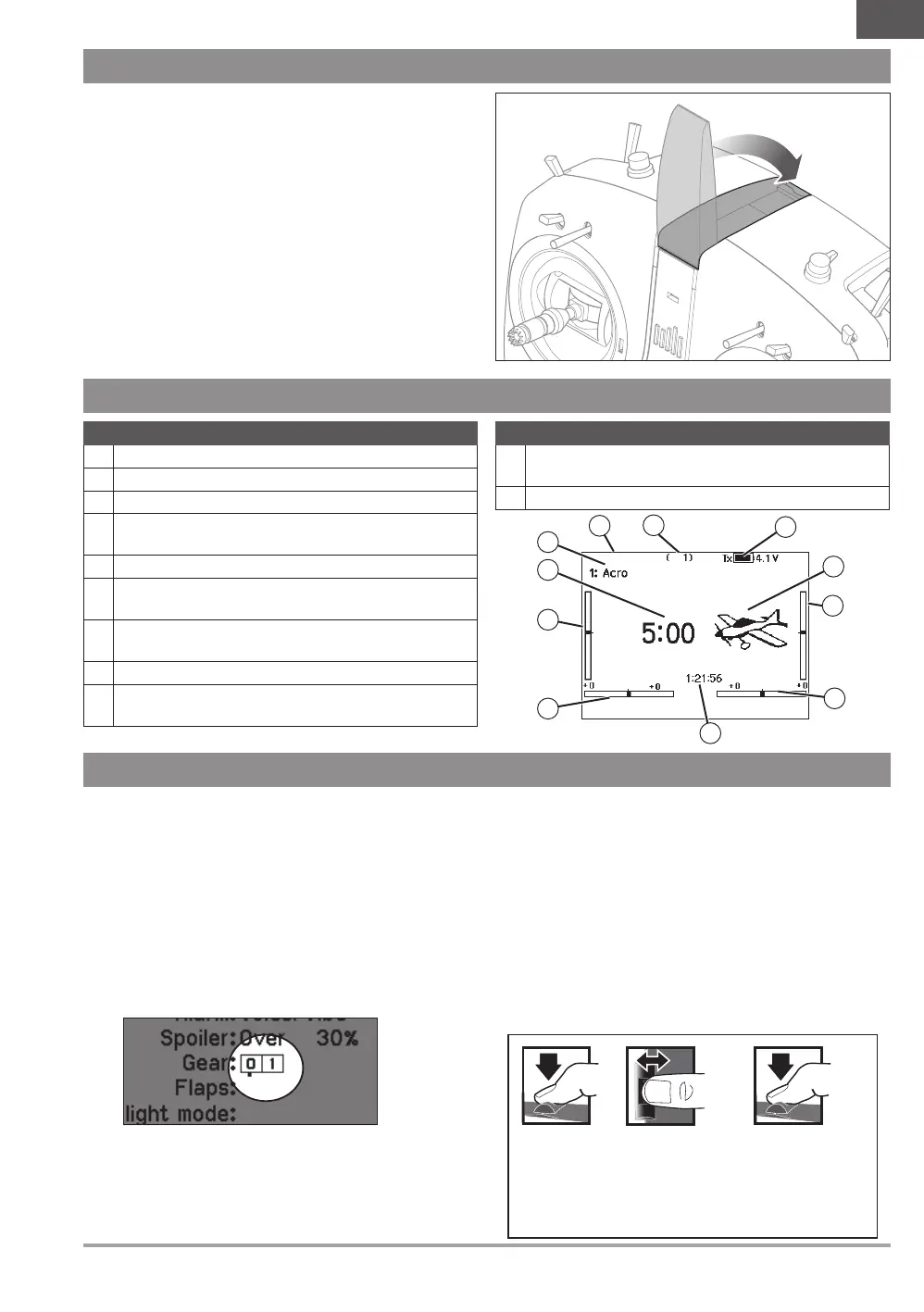

7SPEKTRUM NX7e • TRANSMITTER INSTRUCTION MANUAL
EN
MAIN SCREEN
Function
1 Model Name
2 DSMX/DSM2 If not shown, this indicates not bound
3 Displays throttle position
4
Digital Battery Voltage (an alarm sounds and the screen flashes
when battery charge gets down to 3.2V for a Li Ion battery.)
5 Model Avatar
6
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
7
Aileron Trim (Mode 1, 2)
Rudder Trim (Mode 3, 4)
8 Model Memory Timer
9
Rudder Trim (Mode 1, 2)
Aileron Trim (Mode 3, 4)
Function
10
Throttle Trim (Mode 2, 4)
Elevator Trim (Mode 1, 3)
11 Timer
5
4
2
3
10
11
1
6
7
9
8
• Scroll the scroll wheel to move through the screen content or
change programming values. Press the scroll wheel to make
a selection.
• Use the Back button to go to the previous screen (for example,
to go from the Mixing Screen to the Function List).
• Use the Clear button to return a selected value on a screen to
the default setting.
• Direct Model Access enables you to access the Model Select
screen without powering off the transmitter. Anytime the
transmitter power is on, press the Clear and Back buttons to
access the Model Select screen.
• Press and hold the scroll wheel while powering on the
transmitter to show the System Setup list. No radio
transmission occurs when a System Setup screen is displayed,
preventing accidental damage to linkages and servos during
changes to programming.
• At the main screen you can scroll to view the servo monitor.
• The Main Screen appears when you power on the transmitter.
Press the scroll wheel once to display the Function List.
• When you want to change a value in a screen for a particular
control position, move the control to the desired position to
highlight the value you want to change, such as 0/1/2, up/
down or left/right.
Enter, Choose
or Exit
Move between
options or change
value in an option
Hold for 3
seconds and
release to move to
the Main Screen
Scroll HoldPress
TIP: The tick mark below shows the current switch position.
Rolling and clicking the scroll wheel turns the selected box black,
indicating that the value or condition will act on that position.
NAVIGATION
ANTENNA POSITION
We recommend setting up your antenna to be positioned vertical
when you are in your most comfortable position for flying. The
antenna may also be folded for storage.
