49SPEKTRUM NX7e • TRANSMITTER INSTRUCTION MANUAL
EN
Stick Tension
Turn the screws clockwise a small amount using a small Phillips
screwdriver to tighten the stick tension and counter clockwise to
loosen.
NOTICE: Always do a test of stick tension while turning these
screws to ensure stick tension is not too loose or too tight.
Tightening a screw too much can damage a spring. Loosening a
screw too much can let a spring fall off and cause short-circuit
in the transmitter.

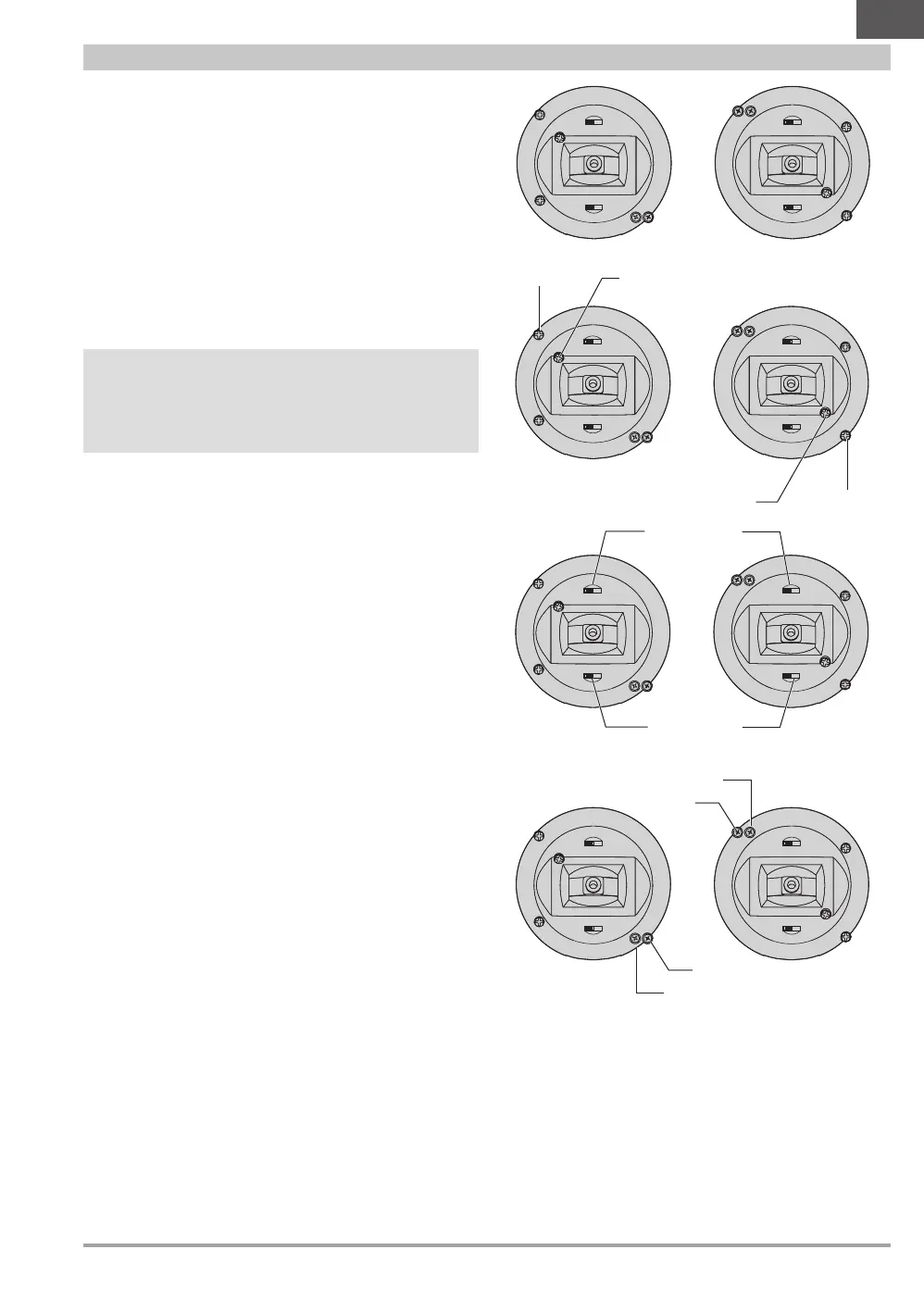

Gimbal Adjustments
The NX7e has all the physical transmitter adjustments located
around the face of each gimbal. This arrangement allows for quick
and easy adjustments without taking the back cover off to access
adjustment screws.
Available adjustments:
• Change the Throttle Ratchet
• Change the Throttle Tension
• Adjust Stick Tension
Vertical Tension
Vertical Tension
Horizontal Tension
Horizontal Tension
Throttle Stick Adjustment
Ratcheted Throttle
1. Locate the throttle strap adjustment screws on both gimbals.
The ratchet set screw engages a serrated section on the
gimbal for a ratcheted throttle, while the tension set screw
engages a strap for smooth tension on the gimbal.
2. To engage the throttle ratchet turn the ratchet set screw
clockwise until the ratchet engages.
3. To disengage the throttle ratchet turn the screw counter
clockwise until the gimbal moves freely.
Smooth Tension Throttle
1. To engage the throttle tension, turn the tension set screw
clockwise until the tension engages.
2. To disengage the throttle tension turn the screw counter
clockwise until the gimbal moves freely.
Tension
Tension
Ratchet
Ratchet
Gimbal Travel Limit
Each gimbal has a switch at the top and bottom that can limit the
travel on that stick’s vertical movement.
Adjusting the gimbal travel limits
1. Remove the covers
2. Move the switches toward the center of the transmitter to use
the full travel available.
Move the switch to the outside of the case to reduce travel.
Gimbal Travel
Limit Switches
Gimbal Travel
Limit Switches
