ST STEVAL-STWINBX1 - How to Program the Stwin.box with an External Debugger; Figure 28. Stm32 Cubeprogrammer - Programming; Figure 29. Stwin.box and STLINK-V3 MINI Programmer

Step 4d. Go to the [Erasing & Programming] tab.
Step 4e. Search for the new .bin or .hex binary file to be flashed into the board.
Step 4f. Click on
[Start Programming].

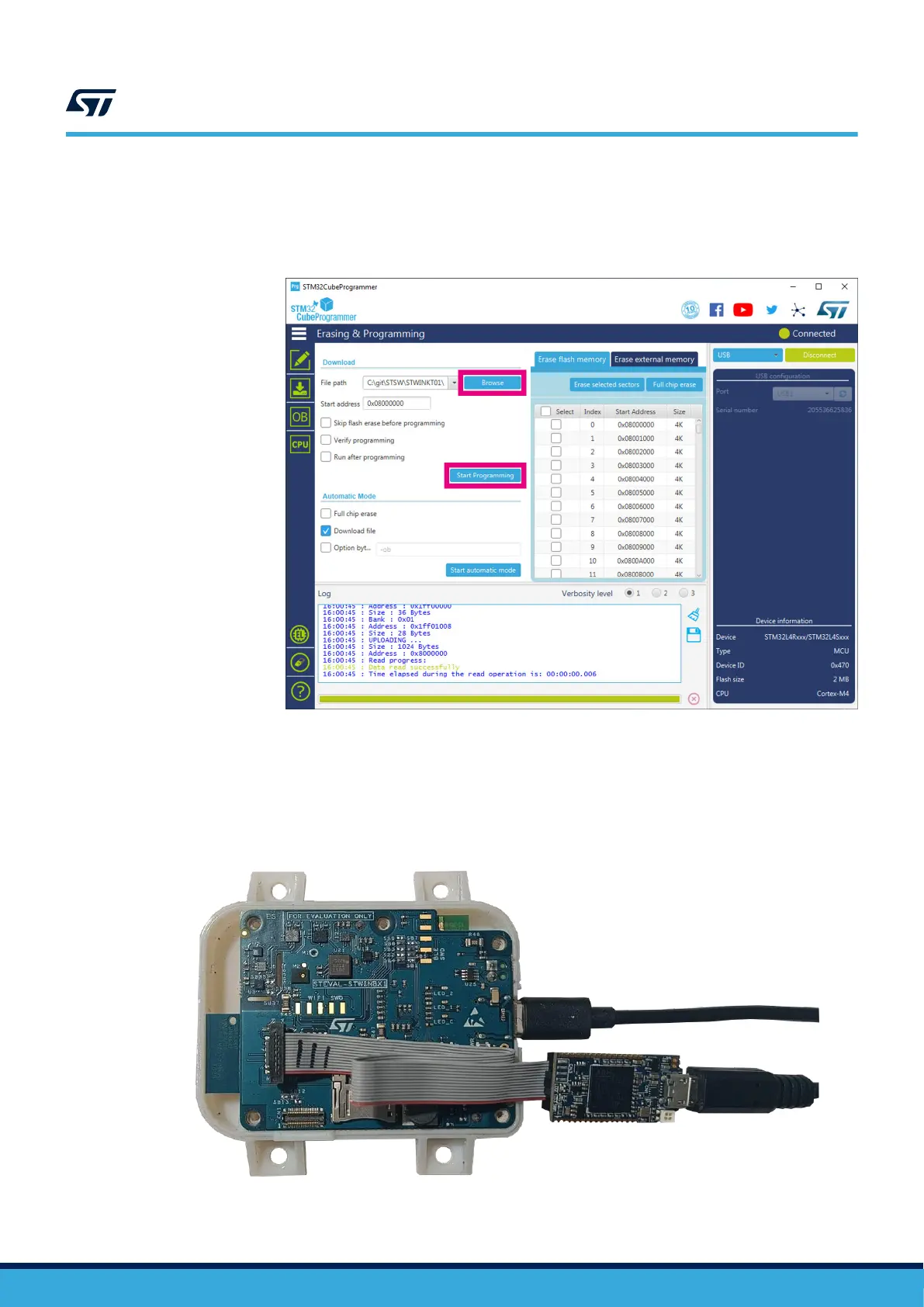

Figure 28. STM32CubeProgrammer - programming
3.2 How to program the STWIN.box with an external debugger
The STWIN.box programming connector is natively compatible with the STLINK-V3 debugger family (STLINK-
V3SET
or STLINK-V3MINI).
Note: STLINK-V3 programmers are not included in the kit.
Figure 29. STWIN.box and STLINK-V3MINI programmer
UM2965
How to program the STWIN.box with an external debugger
UM2965 - Rev 1
page 30/58
