Alternatively, to offer more alternatives, an adapter to ST-LINK V2-1 (STM32 Nucleo development board) or a
standard JT
AG connector is included in the kit.
When using an STM32 Nucleo development board as an external debugger, you need to disconnect the on-board
STM32 by removing the two jumpers on CN2 (see the picture below).

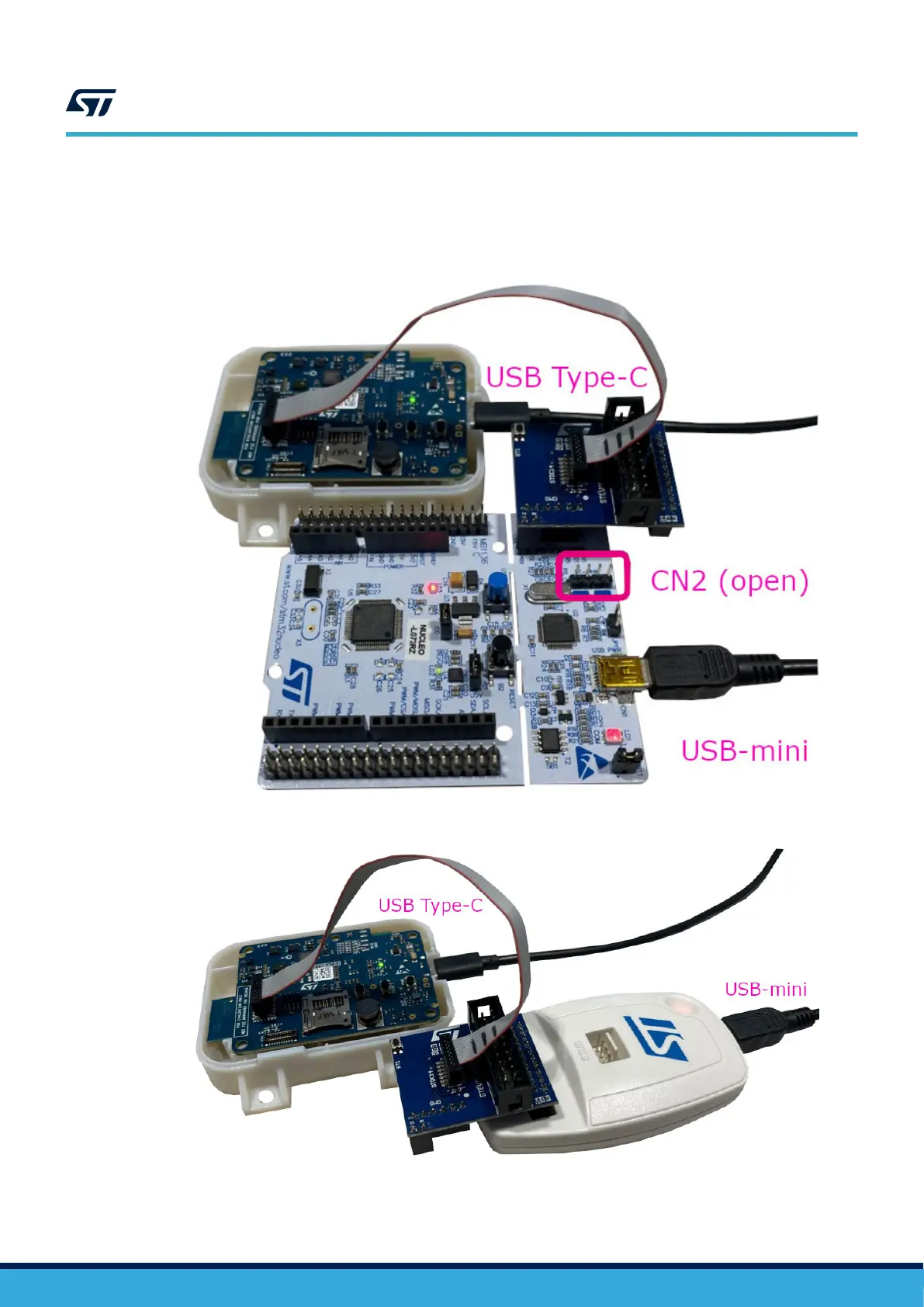

Figure 30. STWIN.box, adapter, and STM32 Nucleo development board
Figure 31. STWIN.box and ST
-LINK/V2 debugger (JTAG 20-pin 2.54 mm pitch connector)
Once the hardware connections are in place, you can either:
UM2965
How to program the STWIN.box with an external debugger
UM2965 - Rev 1
page 31/58
