2 How to assemble the STWIN.box
The plastic case is designed to hold the STWIN.box
core system board with the battery. The case consists of two
parts, the bottom case and the cover. Through the cover you can access the three buttons: USR, RESET, and
BOOT.
Step 1. Prepare the required material:
– STWIN.box core system board (STEVAL-STWBXCS1);
– four screws;
– the plastic case (cover and bottom);
– the battery.
Step 2. Place the battery in the dedicated slot inside the bottom of the plastic case and connect the battery to
the core system board through the BATT connector.

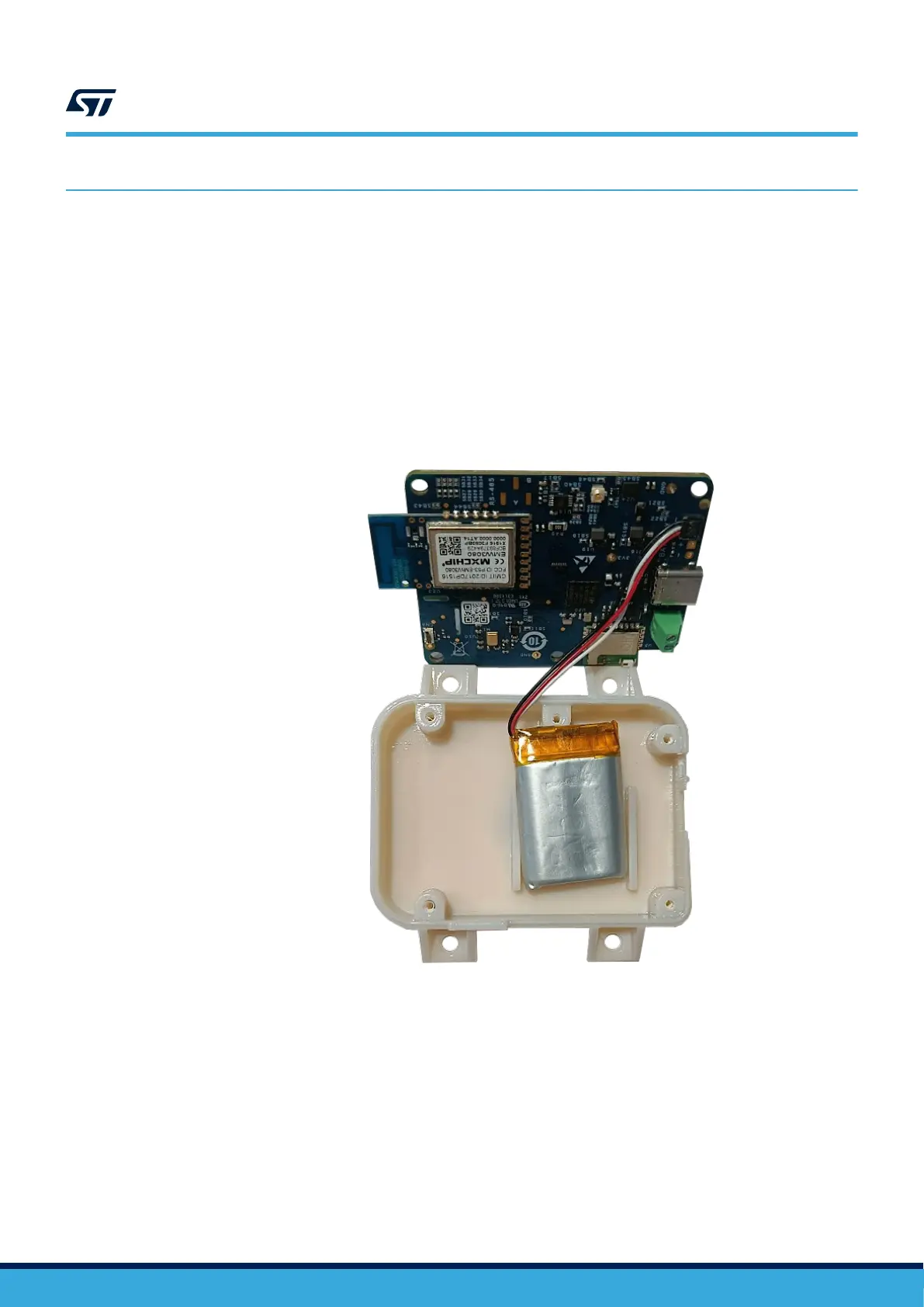

Figure 22. Connecting the core system board to the battery
