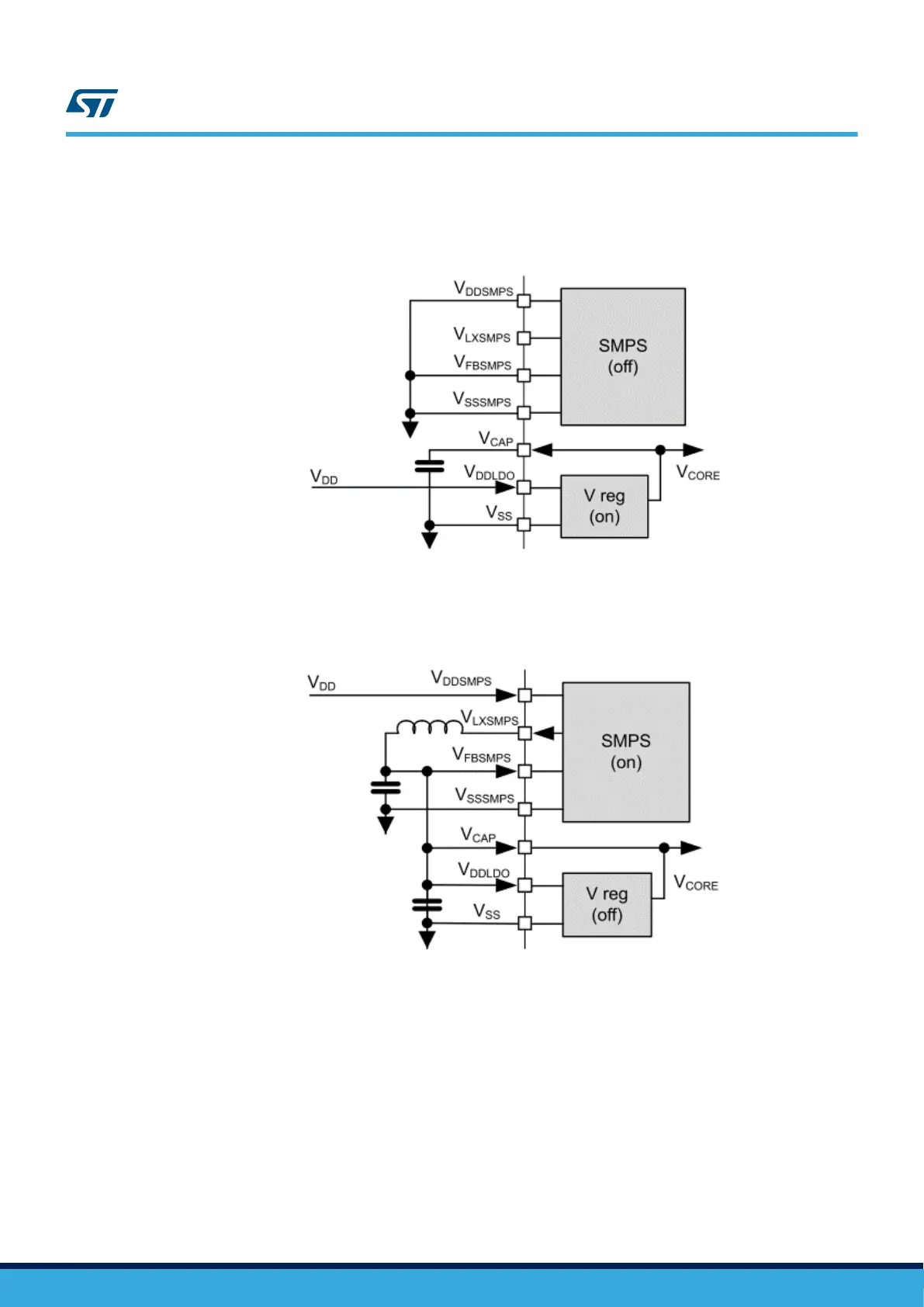

The STM32H7B3I-DK board supports four “SMPS/LDO” configurations of STM32H7B3LIH6QU microcontroller
,
given in the figures below
.
Figure 1
1.
Config1 - LDO only
Figure 12.
Config2 - SMPS only (default)
UM2569
Power supply
UM2569
-
Rev 1
page 17/54
