9.2 CN15 USB OTG HS Micro-AB connector
A USB OTG high-speed communication link is available at CN15 USB Micro-AB receptacle connector. Micro-AB
receptacle enables USB Host and USB Device features.

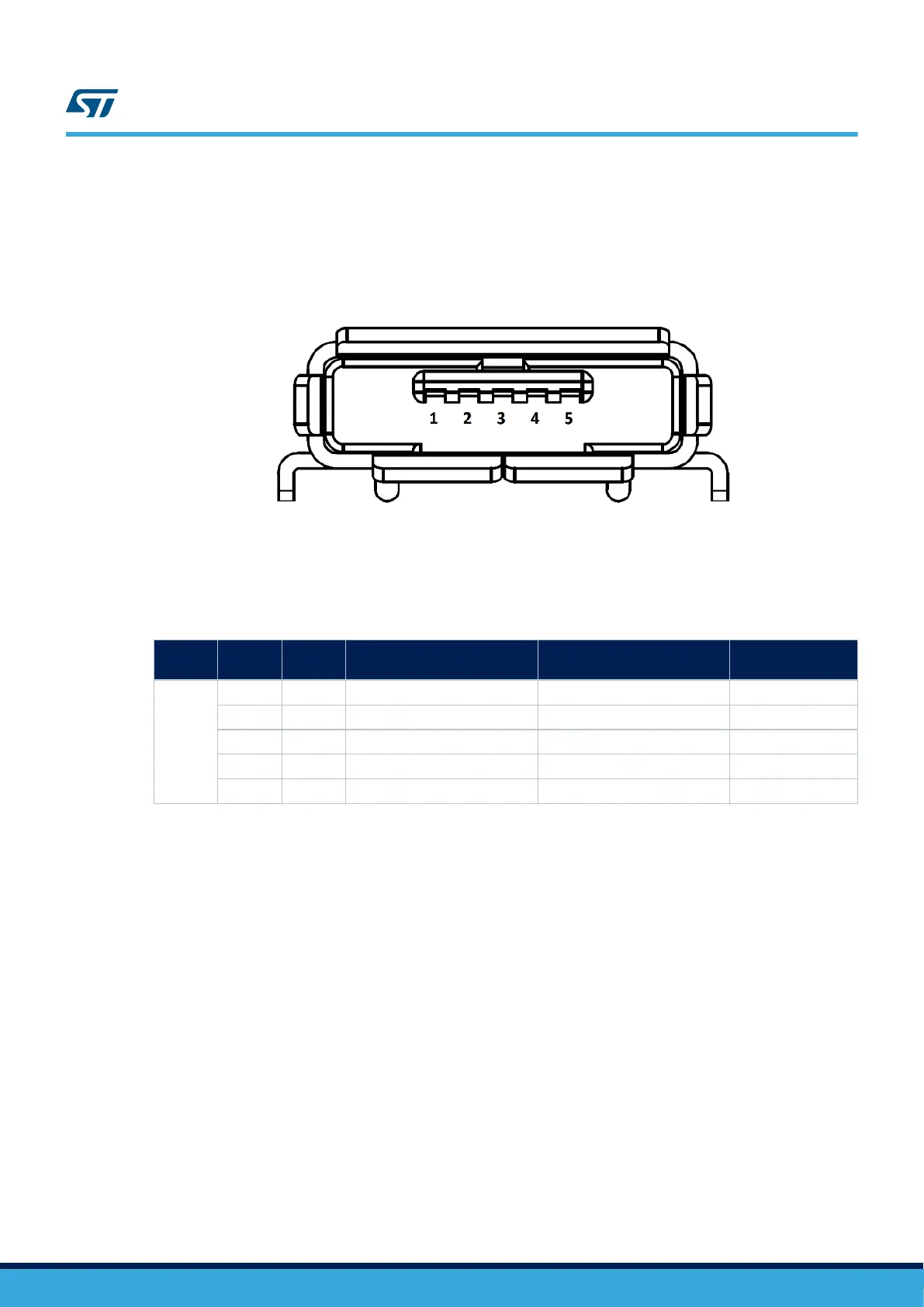

Figure 17. CN15 USB OTG HS Micro-AB connector (Front view)
The related pinout for the USB OTG HS connector is listed in Table 13.
Table 13. CN15 USB OTG HS Micro-AB connector pinout
Connect
or
Pin
number
Pin
name
Signal name USB3320C-EZK pin Function
CN15
1 VBUS 5V_USB_HS 22 5 V power
2 DM USB_HS_N 19 Data-
3 DP USB_HS_P 18 Data+
4 ID - 23 ID
5 GND - - GND
UM2569
CN15 USB OTG HS Micro-AB connector
UM2569 - Rev 1
page 26/54
