T

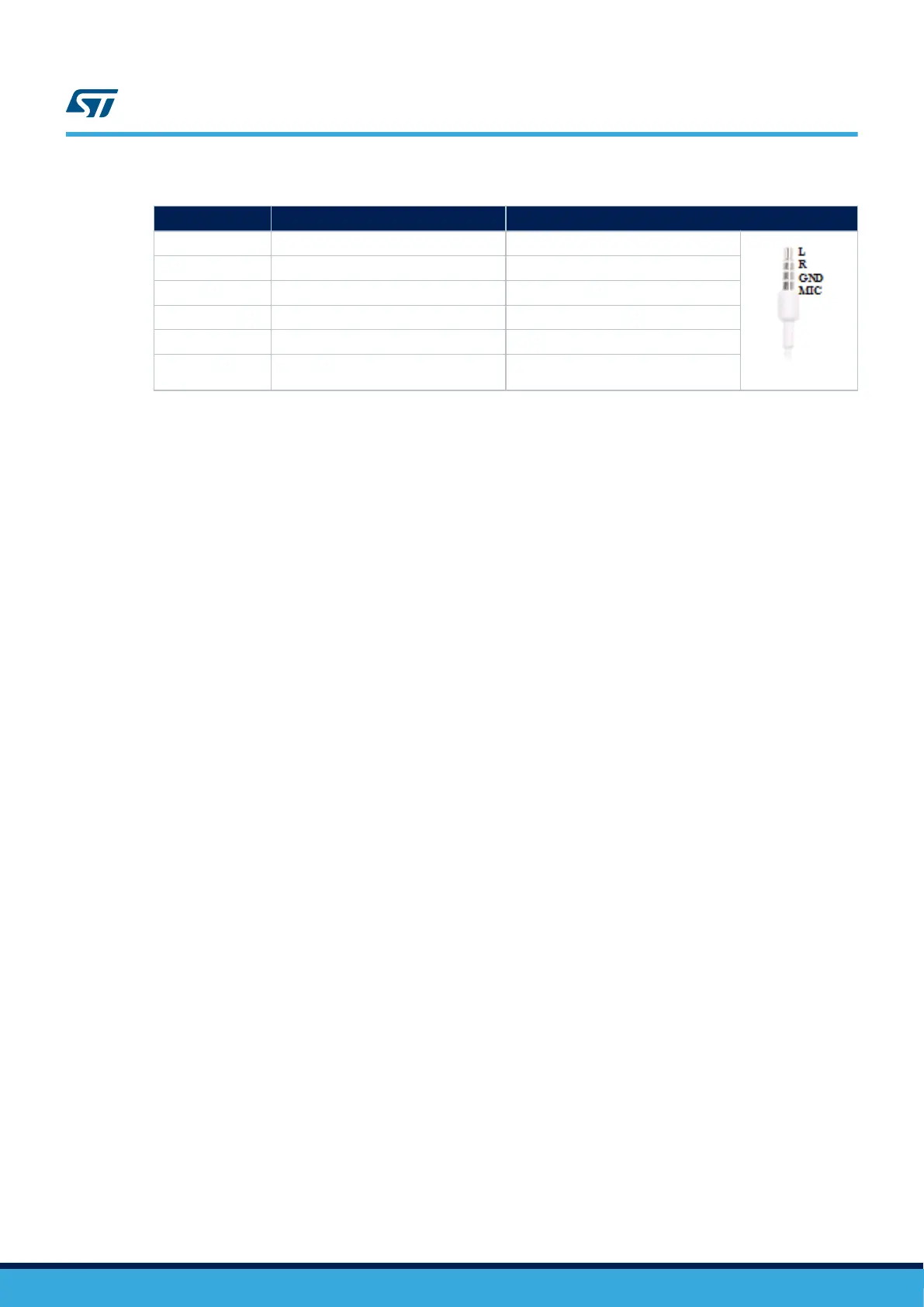

able 25.
CN5 audio jack connector pinout (Onboard)
Pin number
Description
Stereo headset with microphone pinning
1
NC
NA
2
NC
NA
3
GND
GND
4
OUT_Right
SPK_R (33 Ω typical)
5
NC
NA
6
OUT_Left
SPK_L (33 Ω typical)
UM2569
CN6 audio blue jack - line in
UM2569
-
Rev 1
page 36/54
35
37
