8.2 STice emulator
8.2.1 STice overview
The STice is a modular, high-end emulator system which connects to the PC via a USB
interface, and to the application board in place of the target microcontroller.
It is supported by the free STM8 toolset: IDE ST Visual Develop (STVD) programmer, ST
Visual Programmer (STVP) and STM8 Assembler. Please refer to the STice emulator for
STM8 for more details.
STice has two distinct modes of operation which are described further in this section:
• Emulation mode
• In-circuit mode
It can also be used instead of RLink for SWIM connection.

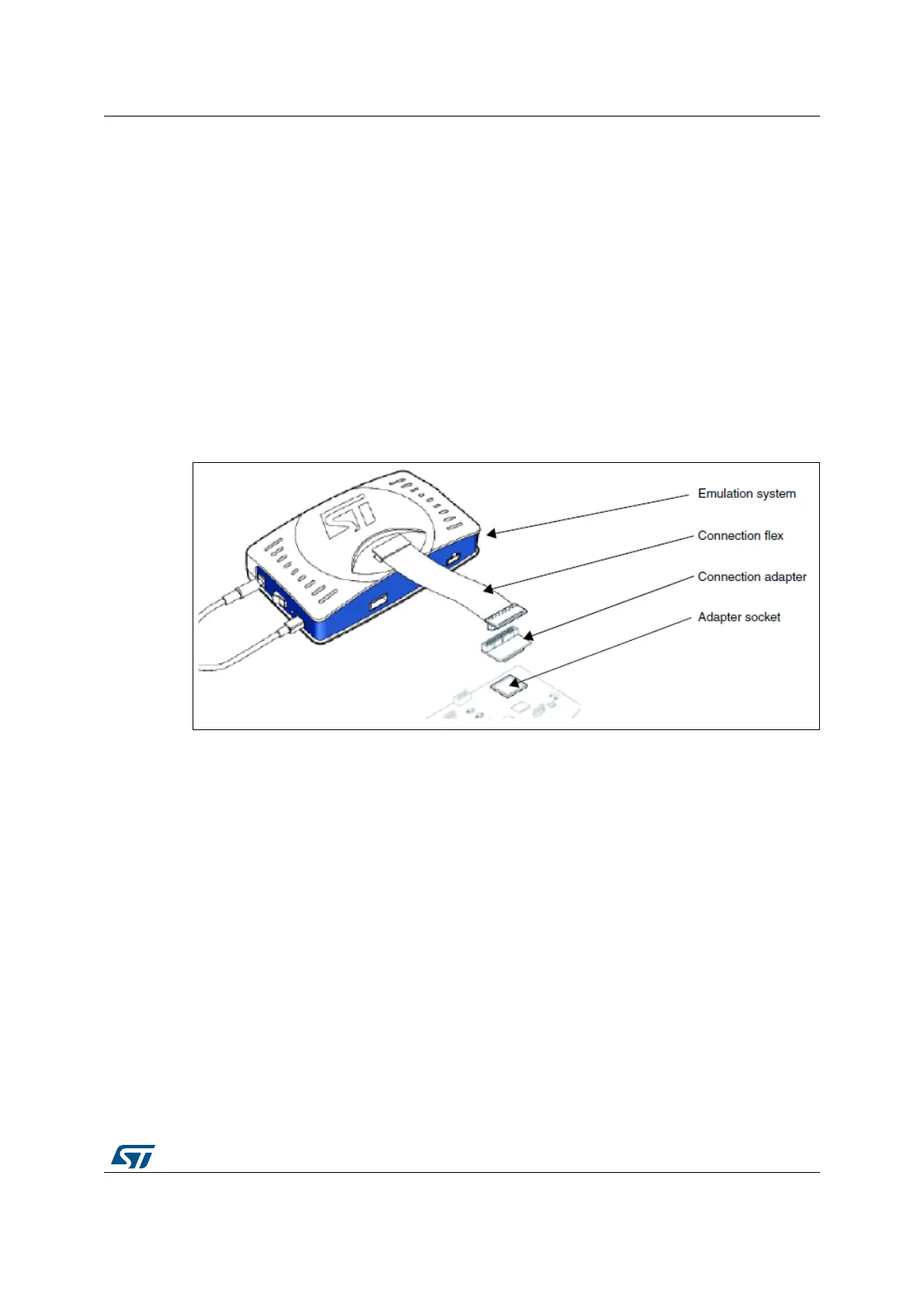

Figure 13. Connection description
Emulation system: STice
• Emulator box
• Cables for USB, power supply, trigger, and analyzer input
Connection flex
• 60-pin or 120-pin cable for connection to the application board
Connection adapter
• Links the connection flex to the footprint of the STM8L/STM8AL microcontroller
Adapter socket
• Package-specific socket for connection adapter and STM8L/STM8AL microcontroller
