8.2.2 STice in emulation configuration
In emulation configuration, the STice is connected to the PC via a USB interface and to the
application board in place of the target microcontroller being used.
• Connection flex: Flexible cable (60-pin or 120-pin depending on the target
microcontroller) that relays signals from the STice to the application board.
• Connection adapter: Links the connection flex to the footprint of the target
microcontroller on the users application board.
• Adapter socket: Socket that solders to the application board in place of the
microcontroller and receives the connection adapter.
The above accessories are not included with the STice system. To determine exactly what
is required for any supported microcontroller, refer to the online product selector on
www.st.com.

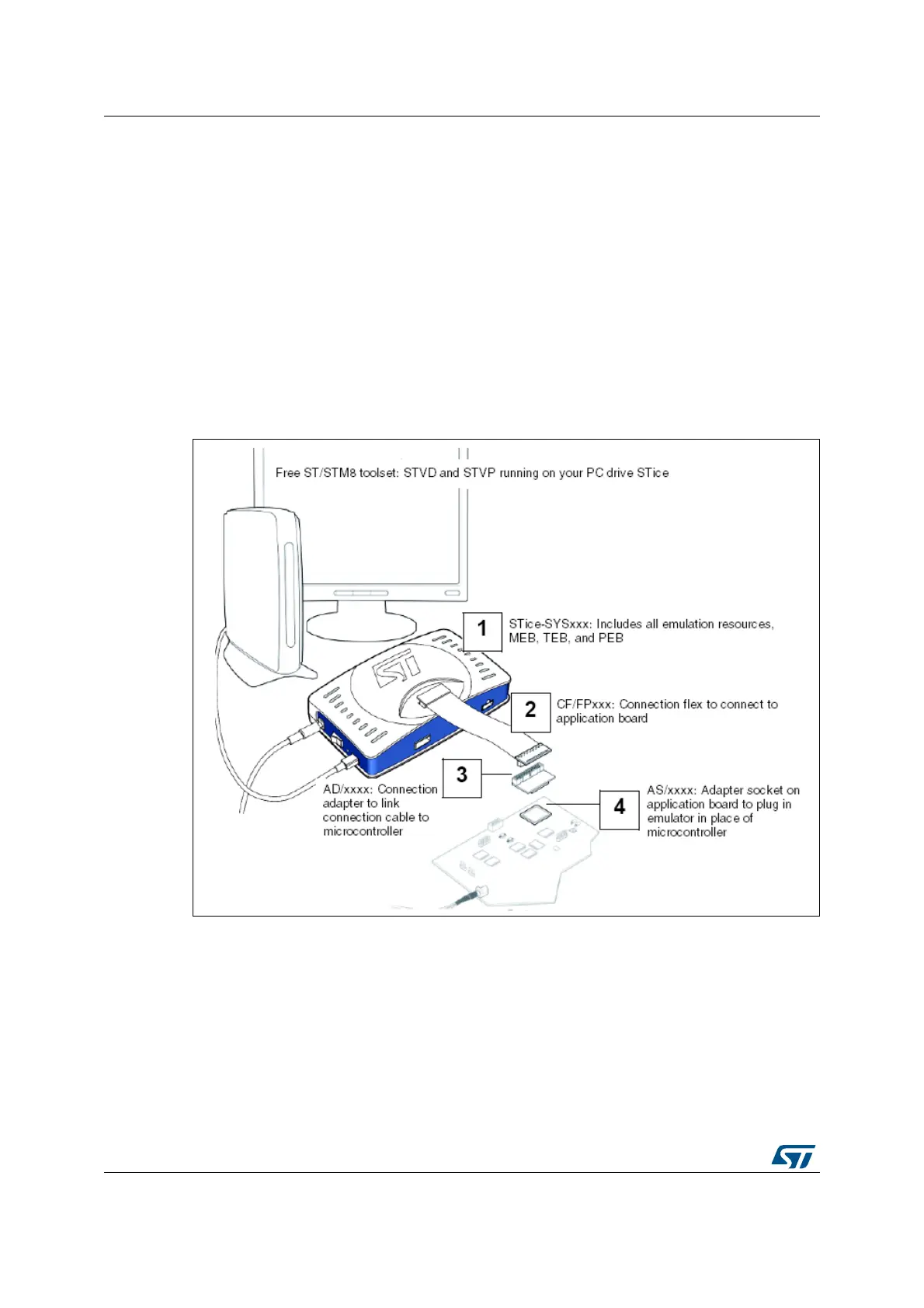

Figure 14. STice in emulation configuration
