ST STM8L - Figure 23. Connecting the Debug Instrument to the Stm8 L152 X-EVAL Evaluation Board

DocID16139 Rev 5 35/42
AN3029 Setting up the STM8 development environment
41

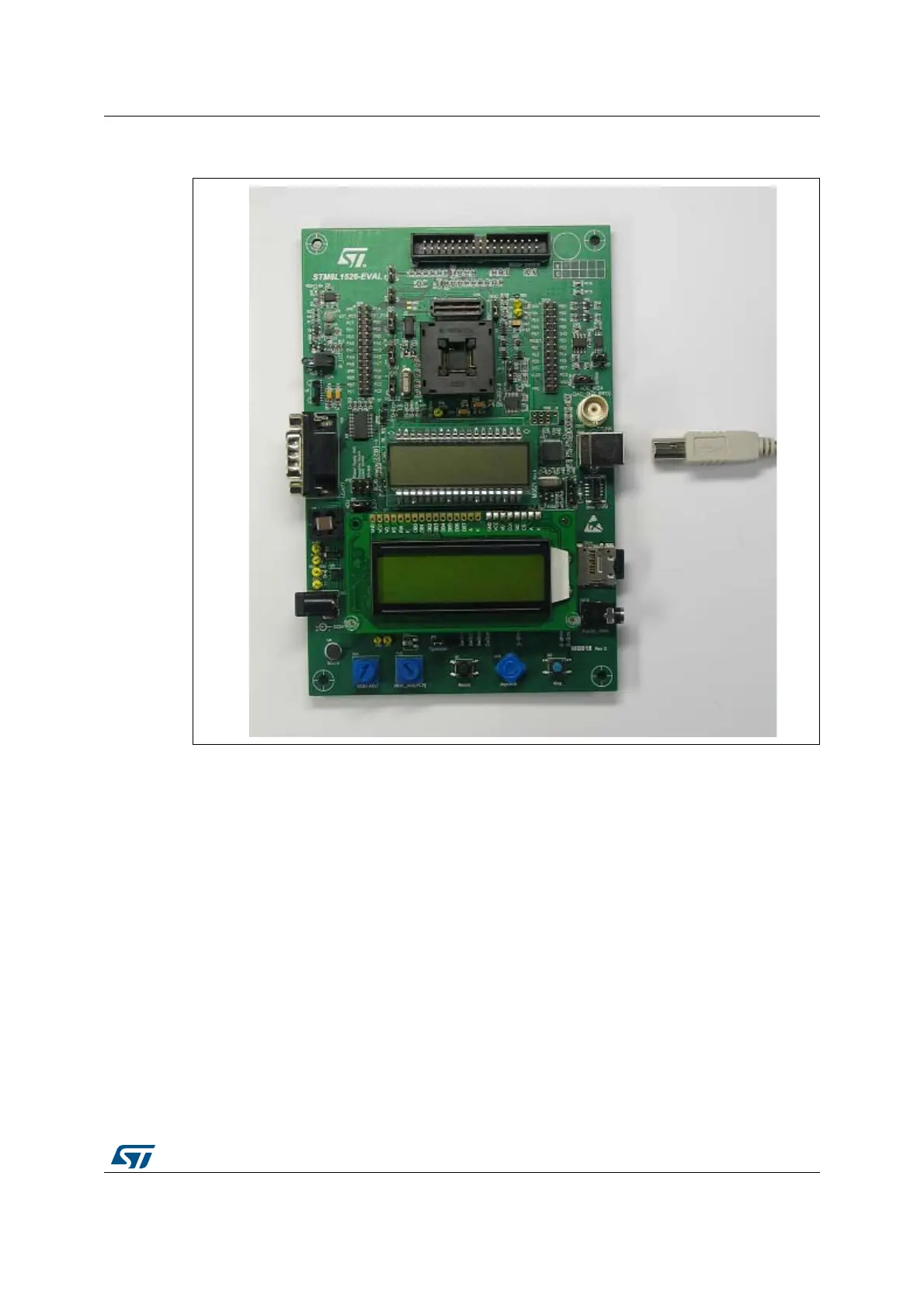

Figure 23. Connecting the debug instrument to the STM8L152x-EVAL evaluation
board
Caution: On the Rlink adapter board for STM8, the “SWIM” jumper must be set. If there is no pull-up
on the application SWIM line, the “ADAPT” jumper is also set. The “PW-5V” and “12MHz”
jumpers must not be set.
