T15h Tag Deployment & User Guide

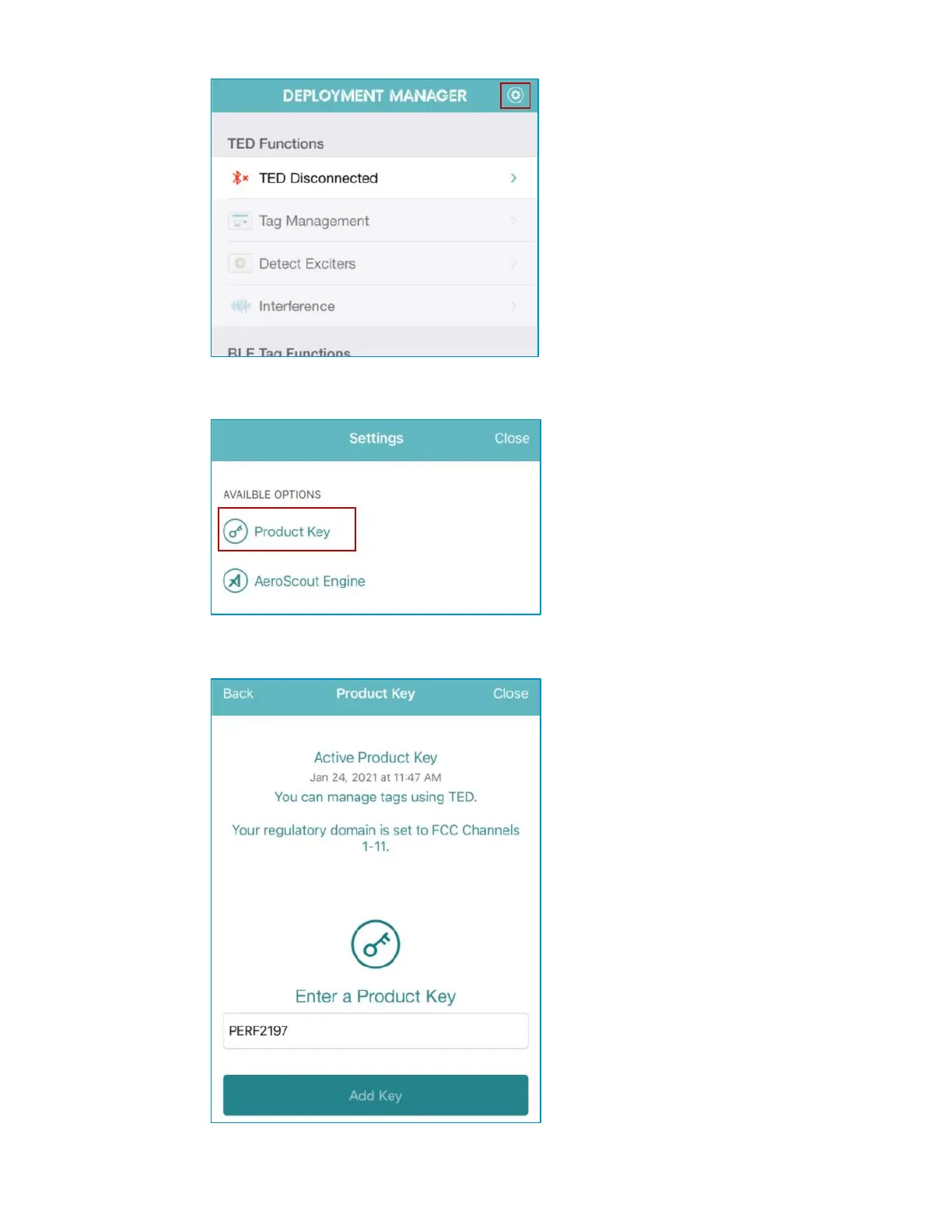

3. Tap Product Key.

4. Enter the Product Key PERF2197.

5. Tap Add Key.
