T15h Tag Deployment & User Guide

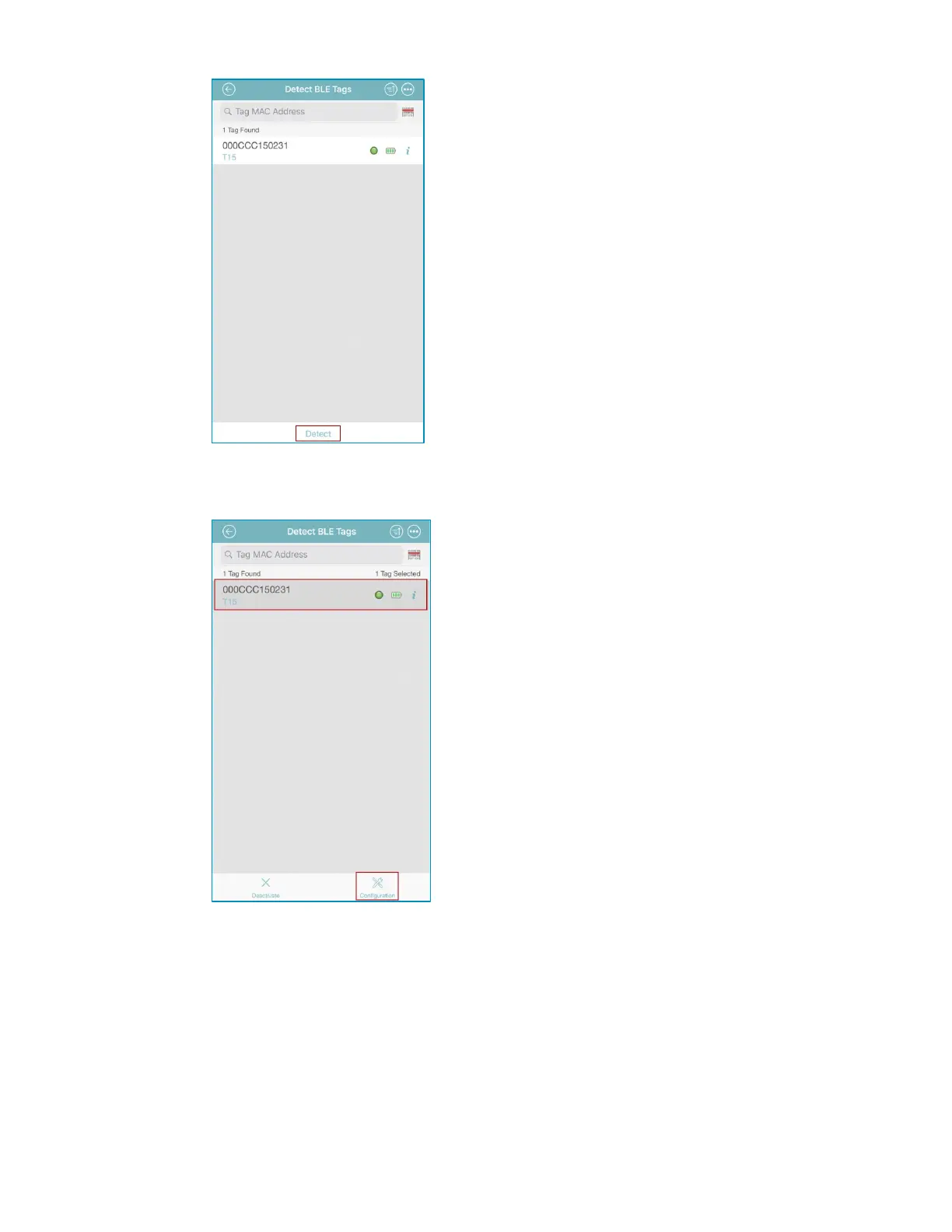

5. Tap to select the required T15h Tag(s) and then tap Configuration. Up to

50 tags can be configured at once.
