STEPCRAFT 3D Touch Probe - Contact; Spare Parts; Technical Data

64
EN
10 Contact
Country of purchase
STEPCRAFT Address Phone and E-Mail Management
Germany & rest of
world
STEPCRAFT
GmbH & Co. KG
An der Beile 2
58708 Menden
Germany
+49 2373 179 11 60
info@stepcraft-systems.com
Markus Wedel,
Peter Urban
USA & Canada Stepcraft Inc.
151 Field Street
Torrington, CT 06790, USA
+1 203 556 1856
info@stepcraft.us
Erick Royer

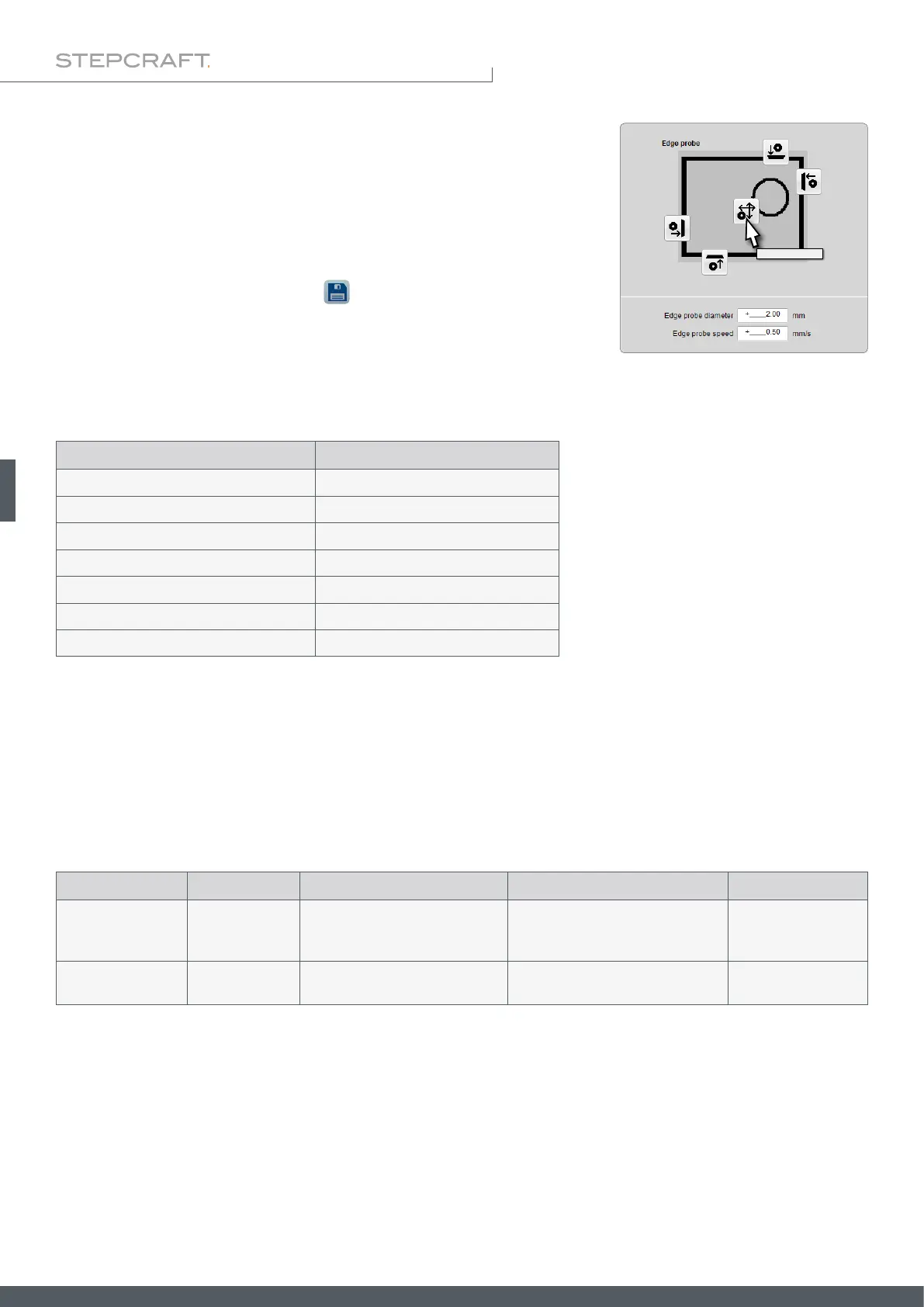

Click the center button to probe the center of a hole. The probe will move to the
edges in both X- and Y-directions and stop each time the sensor is triggered.
The 3D probe is positioned above the determined coordinate with the set Z
safety distance (Parameters –Coordinates – Tool lift). Now that the position is
known, you can set a zero point via the button.
Finding center
8 Technical Data
Property Value
Housing Ø [mm] 44
Housing Height without probe [mm] 53
Probe tip Ø [mm] 2
Probe length [mm] 45
Cable length [m] 2,0
Probe tip sensitivity [N] 0,5 to 2,5
Protection IP64
9 Spare Parts
All parts of the machine and control can be purchased individually as spare parts.
Please contact us directly about this. You can nd our contact details on the cover sheet or in chapter „10 Contact“.
